9 Pcs Set Crowfoot Spanners 1/4 inch ASAHI
Available, delivery time: 1-3 businessdays within Germany
Product information

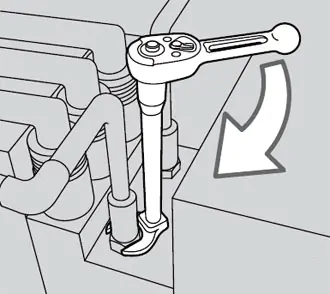

These removable open-end wrench heads are the ideal tool for working in hard-to-reach places that are inaccessible with normal wrenches. Combined with an extension and a ratchet, you have a perfect tool combination. The extension with ball lock holds the open-end wrench head only loosely, allowing for up to 10° of angling in all directions, making the use of this tool even more flexible. Manufactured by ASAHI in Japan from chrome-vanadium steel, surface hard-chromed. Ratchet manufactured in Taiwan. Available with 1/4-inch (6.35 mm), 3/8-inch (9.5 mm), and 1/2-inch (12.7 mm) drive.
Consisting of:
7 open-end wrench heads according to the table below
1 extension length 150 mm (ASAHI Code VE0215)
1 ratchet length 115 mm (ASAHI Code VR0215)
Weight 567 g
Delivered in a metal box with plastic insert
Metal box size: 110 × 200 × 35 mm
ASAHI Code: VCS2090

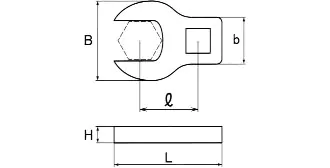

| Jaw Opening mm | Jaw Outer Dimension B mm | Jaw Shaft Dimension b mm | Jaw Thickness H mm | Total Length L mm | Center Point l mm | Weight g |
|---|---|---|---|---|---|---|
| 5.5 | 16 | 12.7 | 6 | 22 | 12 | 10 |
| 6 | 16 | 12.7 | 6 | 22 | 12 | 10 |
| 7 | 17 | 12.7 | 6 | 24 | 13 | 11 |
| 8 | 17 | 12.7 | 6 | 25 | 14 | 11 |
| 10 | 19 | 12.7 | 6 | 27 | 15 | 12 |
| 12 | 22.5 | 12.7 | 6 | 29 | 16 | 14.5 |
| 13 | 24 | 12.7 | 6 | 30 | 16 | 15.5 |
| Properties | |
|---|---|
| Weight | 567 g |
| Metal Box Size | 110 × 200 × 35 mm |
| Manufacturer No. | VCS2090 |
| Delivery | in metal box with plastic insert |
