10 Pcs Set Crowfoot Spanners 1/2 inch ASAHI
Available, delivery time: 1-3 businessdays within Germany
Product information
These detachable open-end wrench heads are the ideal tool for working in hard-to-reach places where normal wrenches cannot reach. In combination with an extension and a ratchet, you have the perfect tool combination. The extension with ball locking holds the open-end wrench head loosely so that up to 10° can be angled in all directions, making the use of this tool even more flexible. Made by ASAHI in Japan from chrome vanadium steel, with a hard-chromed surface. Ratchet manufactured in Taiwan. Available with 1/4-inch (6.35 mm), 3/8-inch (9.5 mm), and 1/2-inch (12.7 mm) drive.
Consisting of:
8 open-end wrench heads according to the table below
1 extension length 380 mm (ASAHI Code VEB438)
1 ratchet „Revowave” length 248 mm (ASAHI Code VRL4250)
Weight 3238 g
Delivered in a metal box with plastic insert
Size of metal box: 180 × 470 × 50 mm
ASAHI Code: VCS4100

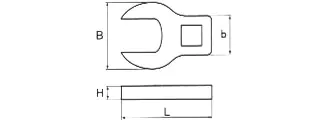

| Open-end width mm | Open-end outer dimension B mm | Open-end shank dimension b mm | Open-end thickness H mm | Overall length L mm | Weight g |
|---|---|---|---|---|---|
| 17 | 32 | 22 | 12 | 55 | 80 |
| 19 | 38 | 22 | 12 | 57 | 90 |
| 22 | 42 | 24 | 12 | 61 | 113 |
| 24 | 46 | 26 | 12 | 64 | 128 |
| 27 | 50 | 27 | 12 | 67.5 | 145 |
| 30 | 54 | 28 | 12 | 73 | 164 |
| 32 | 56 | 28 | 12 | 73 | 165 |
| 36 | 62 | 30 | 12 | 77 | 191 |
| Properties | |
|---|---|
| Total Length | 55, 57, 61, 64, 67.5, 73, 77 |
| Weight g | 191, 165, 80, 90, 113, 128, 145, 164 |
| Jaw Shaft Size | 27, 30, 28, 26, 24, 22 |
| Jaw/Ring Outer Size | 62, 38, 42, 32, 46, 50, 54, 56 |
| Jaw Thickness mm | 12 |
| Jaw Opening | 27, 32, 17, 19, 22, 24, 36, 30 |
