13 Pcs Set Crowfoot Spanners 3/8 inch ASAHI
Available, delivery time: 1-3 businessdays within Germany
Product information

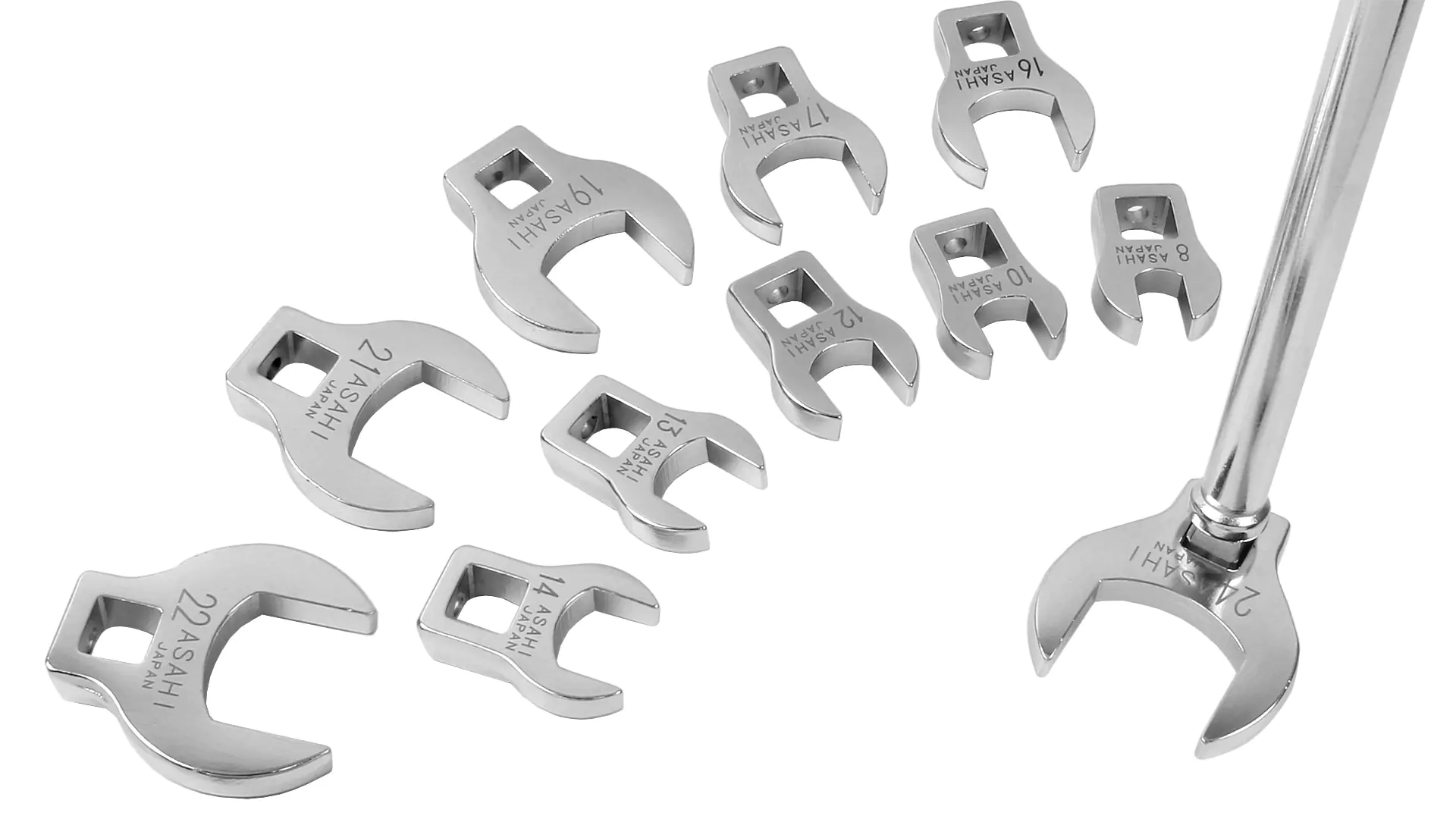

These detachable open-end wrench heads are the ideal tool for working in hard-to-reach areas where standard wrenches cannot fit. Combined with an extension and a ratchet, you have a perfect tool combination. The extension with ball locking holds the open-end wrench head only loosely, allowing it to be angled up to 10° in all directions, making the use of this tool even more flexible. Manufactured by ASAHI in Japan from chrome vanadium steel, surface hard chrome plated. Ratchet manufactured in Taiwan. Available with 1/4-inch (6.35 mm), 3/8-inch (9.5 mm), and 1/2-inch (12.7 mm) drive.
Consisting of:
11 open-end wrench heads according to the table below
1 extension length 300 mm (ASAHI Code VEB330)
1 ratchet „Revowave” length 182 mm (ASAHI Code VRL3180)
Weight 1670 g
Delivered in a metal box with plastic insert
Metal box size: 125 × 350 × 35 mm
ASAHI Code: VCS3130
| Open-end mm | Jaw Outside B mm | Jaw Shaft b mm | Jaw Thickness H mm | Jaw Thickness h mm | Overall Length L mm | Weight g |
|---|---|---|---|---|---|---|
| 8 | 21 | 17 | 10 | 6.3 | 31.6 | 21 |
| 10 | 21 | 17 | 10 | 6.3 | 31.2 | 20 |
| 12 | 24 | 17 | 10 | 6.3 | 33.7 | 25 |
| 13 | 24 | 17 | 10 | 6.3 | 32.7 | 25 |
| 14 | 24 | 17 | 10 | 6.3 | 32.6 | 25 |
| 16 | 28.8 | 17 | 10 | 6.3 | 37.4 | 29 |
| 17 | 28.8 | 17 | 10 | 6.3 | 37.4 | 27 |
| 19 | 38 | 19 | 10 | 6.3 | 42.6 | 42 |
| 21 | 38 | 19 | 10 | 6.3 | 41.6 | 40 |
| 22 | 41 | 19 | 10 | 6.3 | 46 | 48 |
| 24 | 41 | 19 | 10 | 6.3 | 44 | 45 |
| Features | |
|---|---|
| Weight | 1670 g |
| Metal Box Size | 125 × 350 × 35 mm |
| Manufacturer No. | VCS3130 |
| Delivery | in metal box with plastic insert |
