Bevel-Up Jointer Plane
A2 Blade 57 mm = 2-1/4 in. VERITAS
Available, delivery time: 2-3 days
Product information

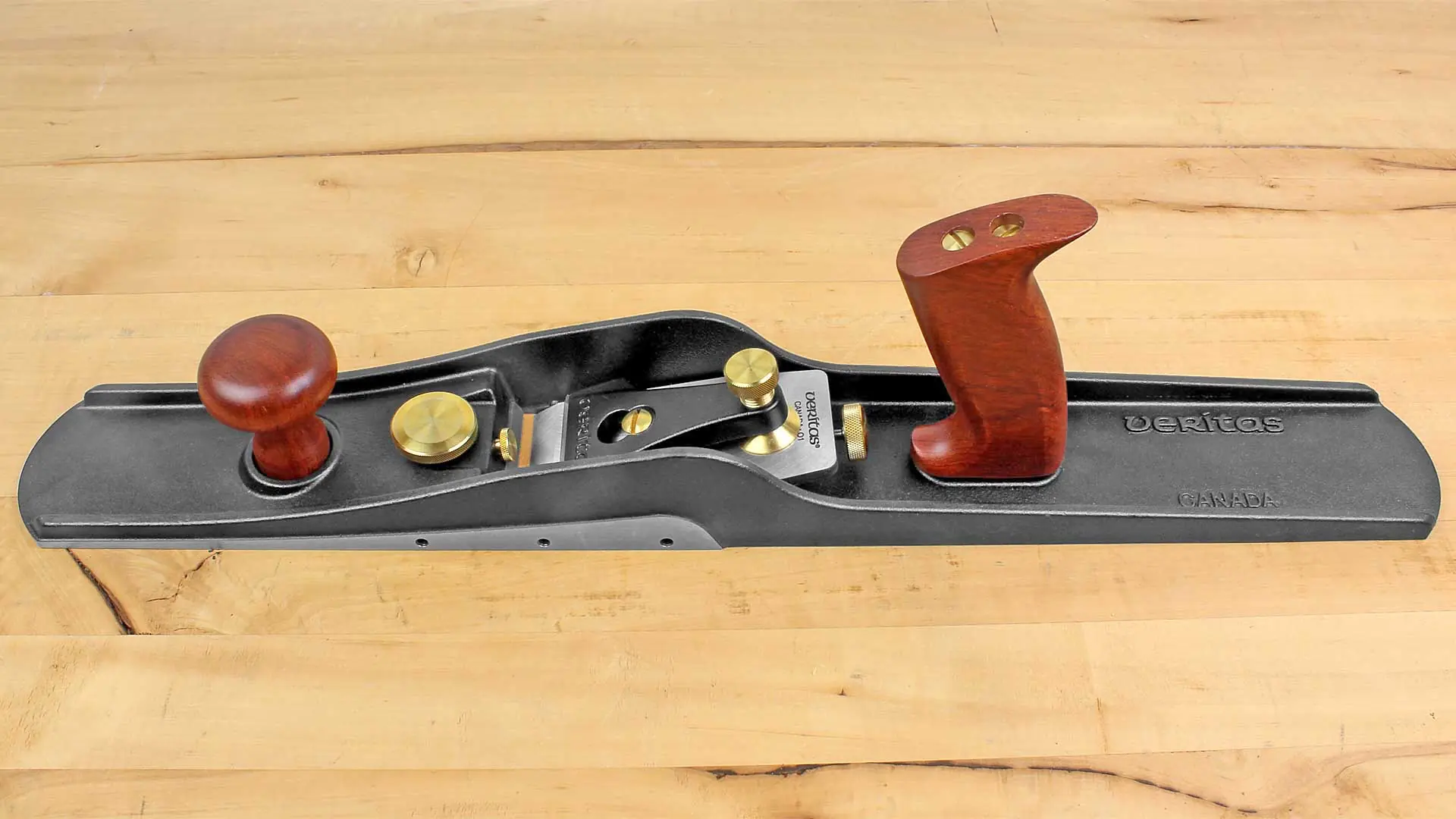

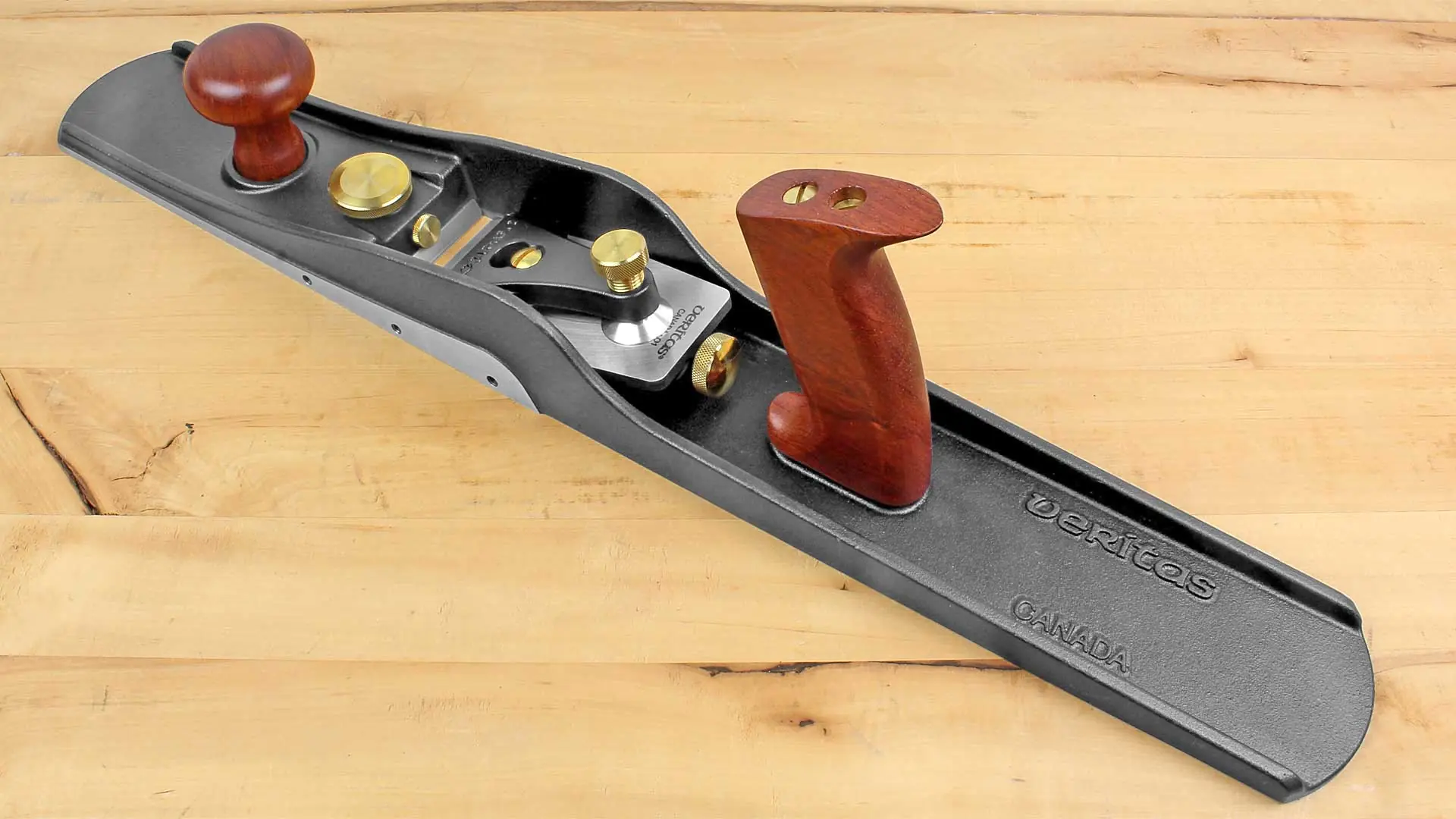

The Veritas Low-Angle Jointer is the largest member of the Veritas low-angle plane family.
The design of this plane, with an iron whose bevel faces upwards, ensures that it is versatile and easy to use. The 12° bed angle combined with a 25° bevel angle on the iron results in an effective cutting angle of 37°. To achieve a larger cutting angle, which is beneficial when working with woods with difficult grain, simply increase the bevel angle of the plane iron.
The 57 mm (2-1/4 inch) wide and 4.8 mm (3/16 inch) thick iron is made from A2 tool steel and hardened to 60-62 HRC. An adjustable mouth plate allows for a wide range of mouth settings. The unique stop screw preserves the mouth setting while simultaneously preventing damage to the iron when it is removed or inserted.
| Features | |
|---|---|
| Iron | A2-Iron |
| Iron Width | 57 mm (2-1/4 in.) |
| Bevel Angle | 25° |
| Weight | 3400 g (7-1/2 lbs) |
| Plane Bed | 12° |
| Length | 559 mm (22 in.) |
