Shinwa Steel Rulers

Shinwa Steel Rulers

Brief general information on steel rules

Steel rules of the Japanese manufacturer SHINWA are mostly made in Japan and are the most commonly used rules among Japanese manufacturers. Some sizes are manufactured in the SHINWA owned plant in China according to SHINWA's high standards. Eye-frienly display of calibrations and pearskin finished surface for reduced reflection make them a first choice. SHINWA rules are made of stainless steel accordingly to Japanese Industrial Standards (JIS B7516 Grade 1). The tolerance on length of rules is measured between arbitrary two scale marks unter a temperature of 20° Celsius.

SHINWA Ruler size up to 500 mm within ±0.15 mm
SHINWA Ruler size from 501 mm up to 1000 mm within ±0.20 mm
SHINWA Ruler size from 1501 mm up to 2000 mm within ±0.30 mm

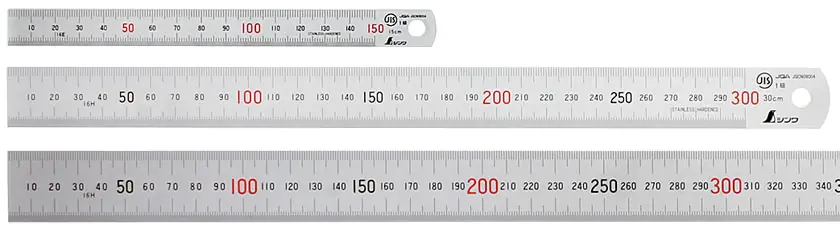

Shinwa Steel Rulers

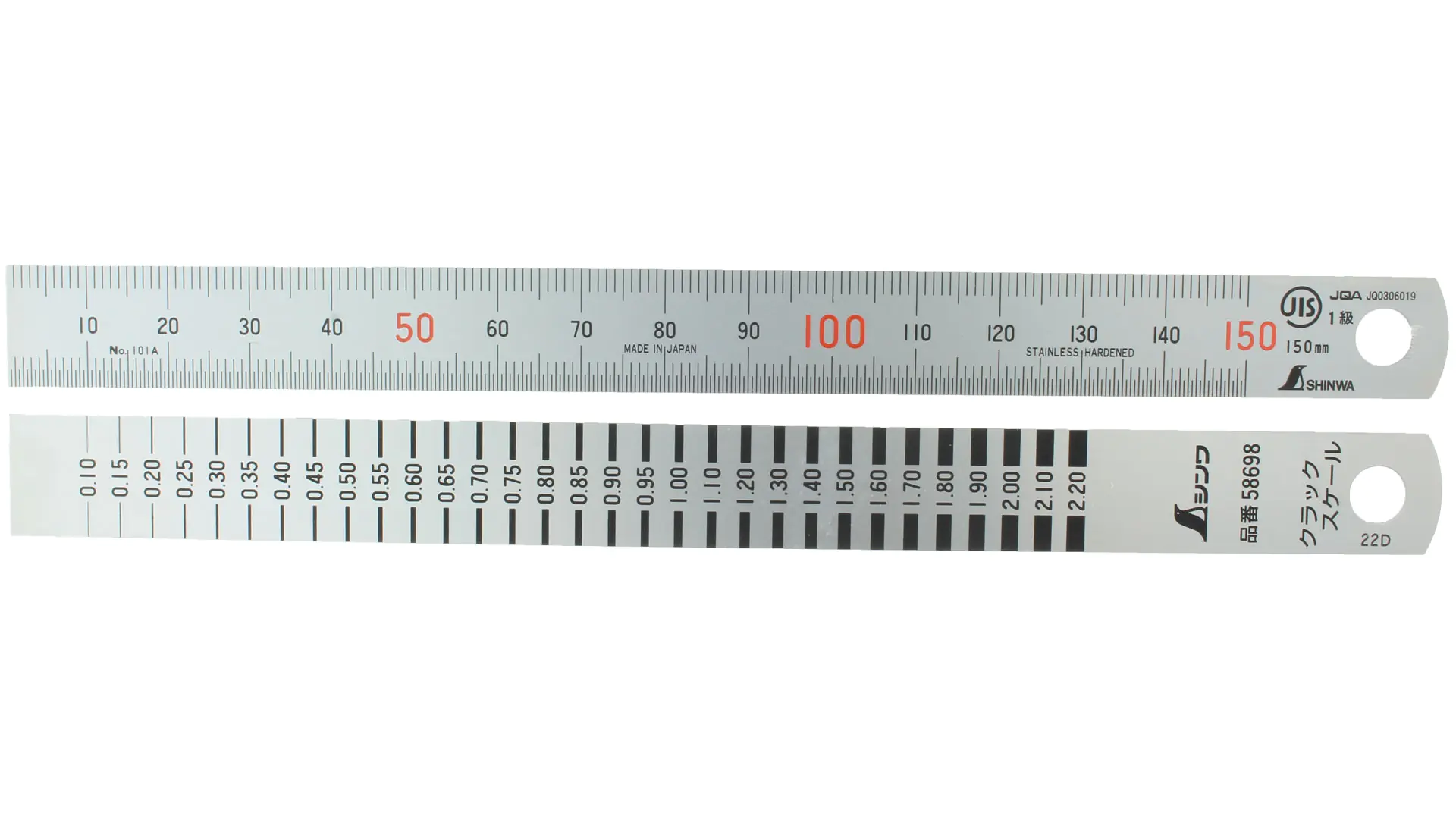

The graduation of these Japanese made steel rules is engraved, decimal numbers are red (1500 and 2000 mm rule: each 500 mm numbers are red). They come with a satin chrome finish for better readability and rust resistance. The rear side of the 150, 300, 600 und 1000 mm long rulers is covered with a conversion table mm-inch and a tap drill table.

Maßstäbe von Shinwa

SHINWA Metric Steel Rulers     View all sizes
Graduation Dimensions Graduation 1st side CodePrice
150 mm 175 x 15 x 0.5 mm 1/2 mm and mm Detail
from left to right
Code 310300CartPrice € 3.95
300 mm 335 x 25 x 1 mm 1/2 mm and mm Detail
from left to right
Code 310301CartPrice € 7.90
600 mm 640 x 30 x 1.2 mm 1/2 mm and mm Detail
from left to right
Code 310302CartPrice € 16.90
1000 mm 1050 x 35 x 1.5 mm 1/2 mm and mm Detail
from left to right
Code 310303CartPrice € 33.90
1500 mm 1565 x 40 x 2 mm mm, 1/2 mm only over the first 100 mm
from left to right
Code 310304CartPrice € 127.90
2000 mm 2065 x 40 x 2 mm mm, 1/2 mm only over the first 100 mm
from left to right
Code 310305CartPrice € 179.90

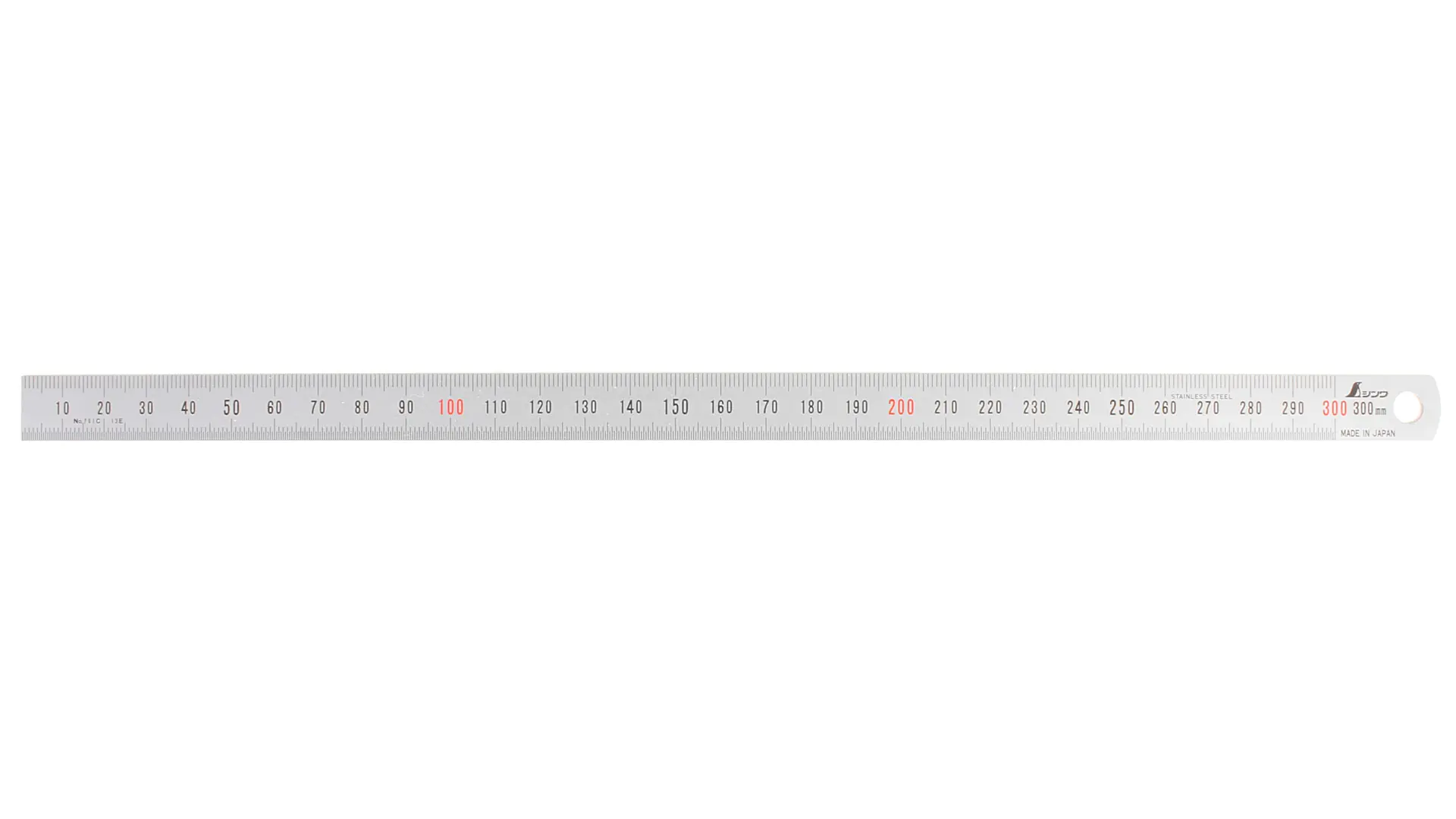

Flexible and thin SHINWA Rulers
Come with a satin chrome finish for better readability and rust resistance. Back side blank! Flexible and thin SHINWA Rulers
Flexible and thin SHINWA Rulers
Left side all sizes     Right side all sizes
Graduation Dimensions Graduation front side (back side blank) CodePrice
300 mm 325 x 15 x 0.5 mm top edge 1 mm bottom edge 1/2 mm
from left to right
Code 311000CartPrice € 7.90
600 mm 630 x 15 x 0.5 mm top edge 1 mm bottom edge 1/2 mm
from left to right
Code 311001CartPrice € 18.90
1000 mm 1030 x 15 x 0.5 mm top edge 1 mm bottom edge 1/2 mm
from left to right
Code 311002CartPrice € 32.90
1500 mm 1530 x 15 x 0.5 mm top edge 1 mm bottom edge 1 mm
from left to right
Code 311003CartPrice € 119.00
2000 mm 2030 x 15 x 0.5 mm top edge 1 mm bottom edge 1 mm
from left to right
Code 311004CartPrice € 159.00

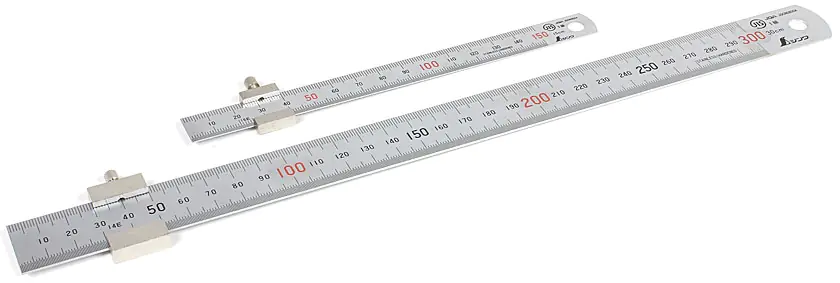

SHINWA Steel Rules - with Ruler Stop

SHINWA Metric Steel Rulers - with Ruler Stop     More ...
Graduation Dimensions Graduation 1st side CodePrice
150 mm 175 x 15 x 0.5 mm 1/2 mm and mm from left to right
Code 309607CartPrice € 12.20
300 mm 335 x 25 x 1 mm 1/2 mm and mm from left to right
Code 309608CartPrice € 17.50

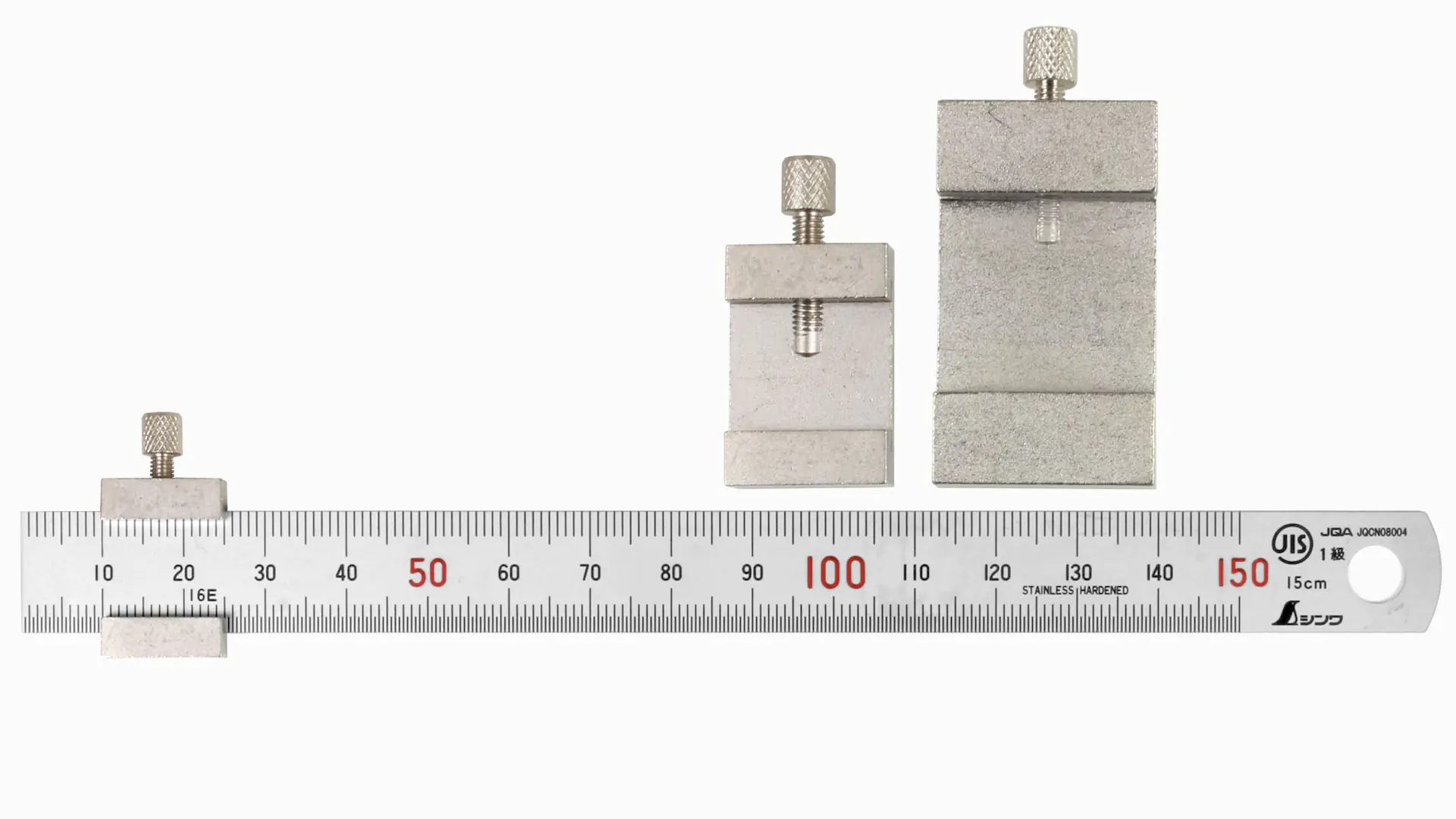

Ruler Stops for Shinwa steel rules These ruler stops fit only Shinwa steel rules or other rules with exaxtly the same sizes in width and thickness. Steel rule NOT included
Note: For all flexible and thin SHINWA rulers only the 15 mm wide ruler stop nr. 310310 will fit.
Fit in with
Shinwa steel rule
Width of
Ruler Stop
CodePrice
150 mm 15 mm
Code 310310CartPrice € 8.50
300 mm 20 mm
Code 310311CartPrice € 9.50
600 mm 20 mm
Code 310312CartPrice € 13.50
1000 mm 20 mm
Code 310313CartPrice € 14.90
1500 + 2000 mm 20 mm
Code 310314CartPrice € 29.50

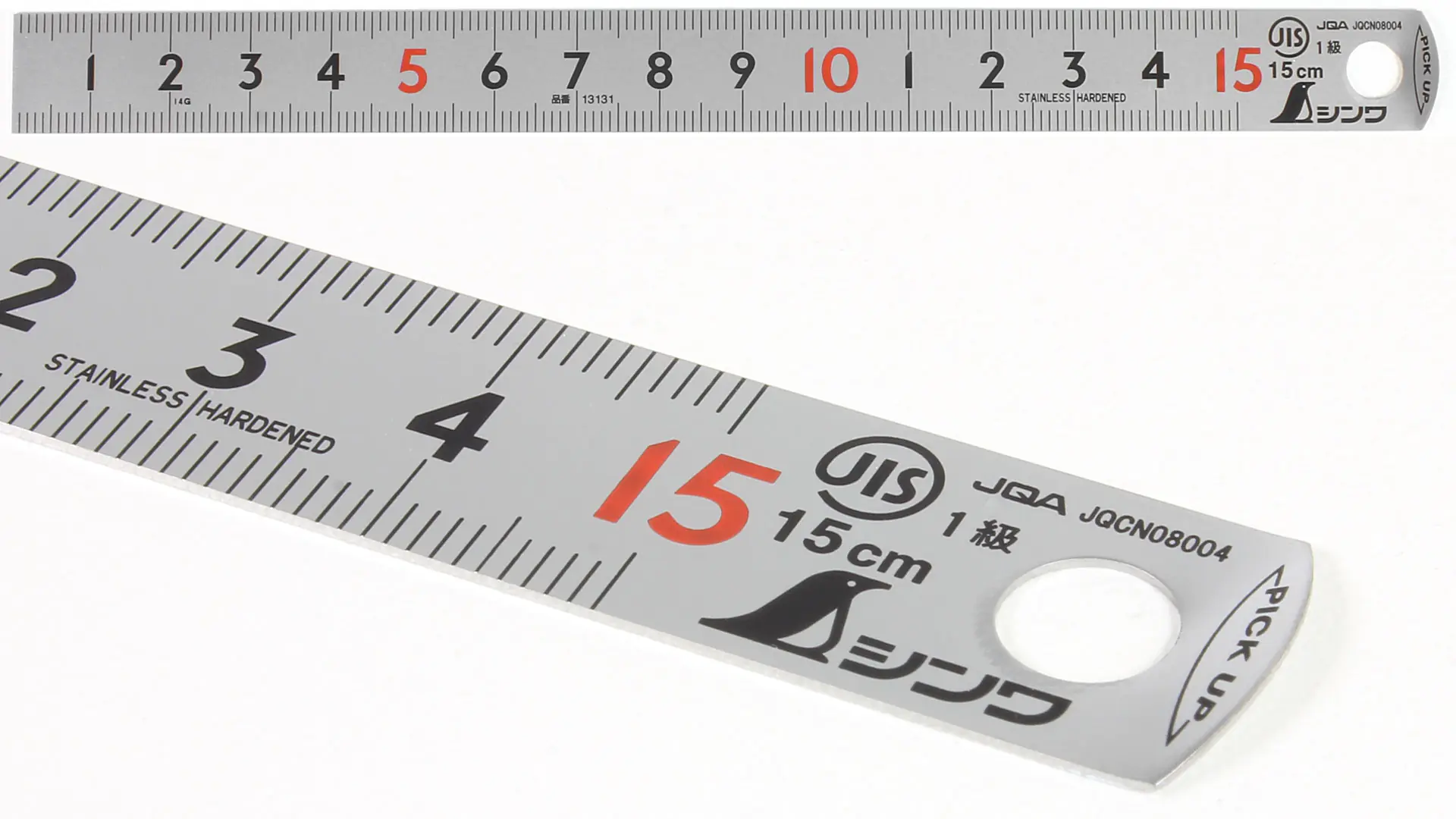

SHINWA Steel Rulers Pick-Up SHINWA Steel Rulers Pick-Up

These rulers have the same tolerance and the same finish as above, but without the tap drill table on the back. They do have the mm-inch table. The Clou:  These rulers have a raised edge on the right hand side to make picking it up from a flat surface easy. The 15 cm and 30 cm rulers will lift up all the way; the 60 cm and 100 cm rulers only lift half-way up. SHINWA steel rulers also feature easy to read extra large numbers and read even larger numbers for the decimals.
Detail of left side   Detail of right side   Video

Shinwa Steel Rulers Pick-Up
Graduation Dimensions Graduation 1st side CodePrice
100 mm 120 x 15 x 0.5 mm mm from left to right
Code 310334CartPrice € 3.50
150 mm 175 x 15 x 0.5 mm mm from left to right
Code 310335CartPrice € 3.90
300 mm 335 x 25 x 1 mm mm from left to right
Code 310336CartPrice € 8.50
600 mm 640 x 30 x 1.2 mm mm from left to right
Code 310337CartPrice € 17.90
1000 mm 1050 x 35 x 1.5 mm mm from left to right
Code 310338CartPrice € 32.90

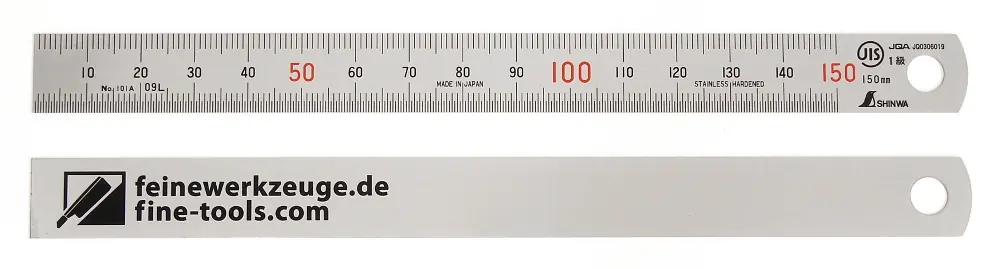

SHINWA Metric Steel Rule

SHINWA Metric Steel Rule
WITHOUT conversion table on back side, instead print: feinewerkzeuge.de + fine-tools.com
Graduation Dimensions Graduation 1st side CodePrice
150 mm 175 x 15 x 0.5 mm 1/2 mm and mm
from left to right
Code 310340CartPrice € 1.95
