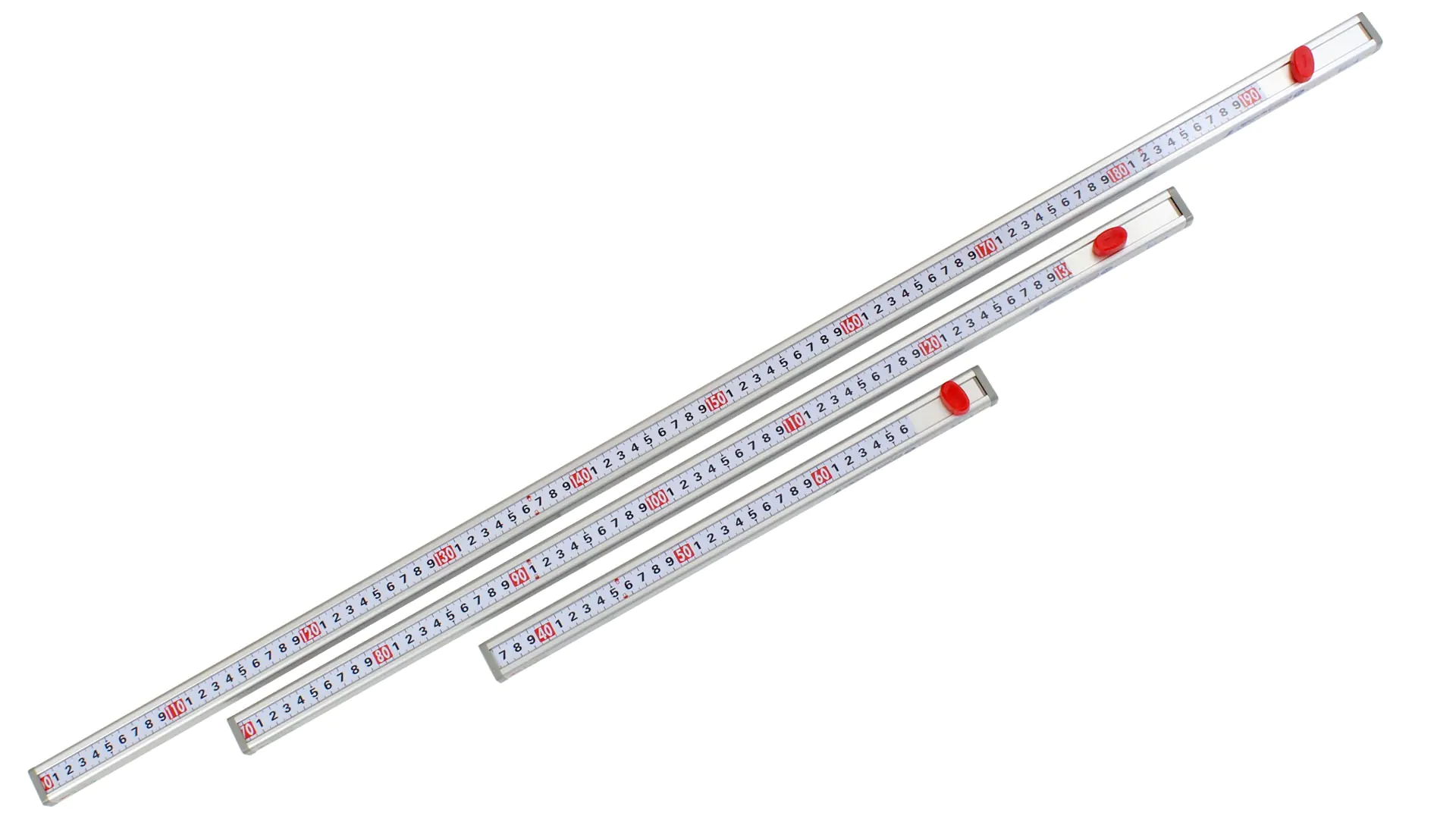

Telescopic Measure Two Directions 95cm (26x17x950mm)
SHINWA
Available, delivery time: 2-3 days
Product information
This versatile measuring tool allows for the determination and transfer of internal dimensions both horizontally and vertically. Unlike tape measures or a combination of multiple folding rulers, it can be positioned freely in space without additional support. The scales of the two extendable rails, which are easily readable even in unfavorable lighting conditions, allow for precise measurement, helping to avoid calculation errors common with traditional methods.
The handling is simple and self-explanatory, as described below for a horizontal measurement:

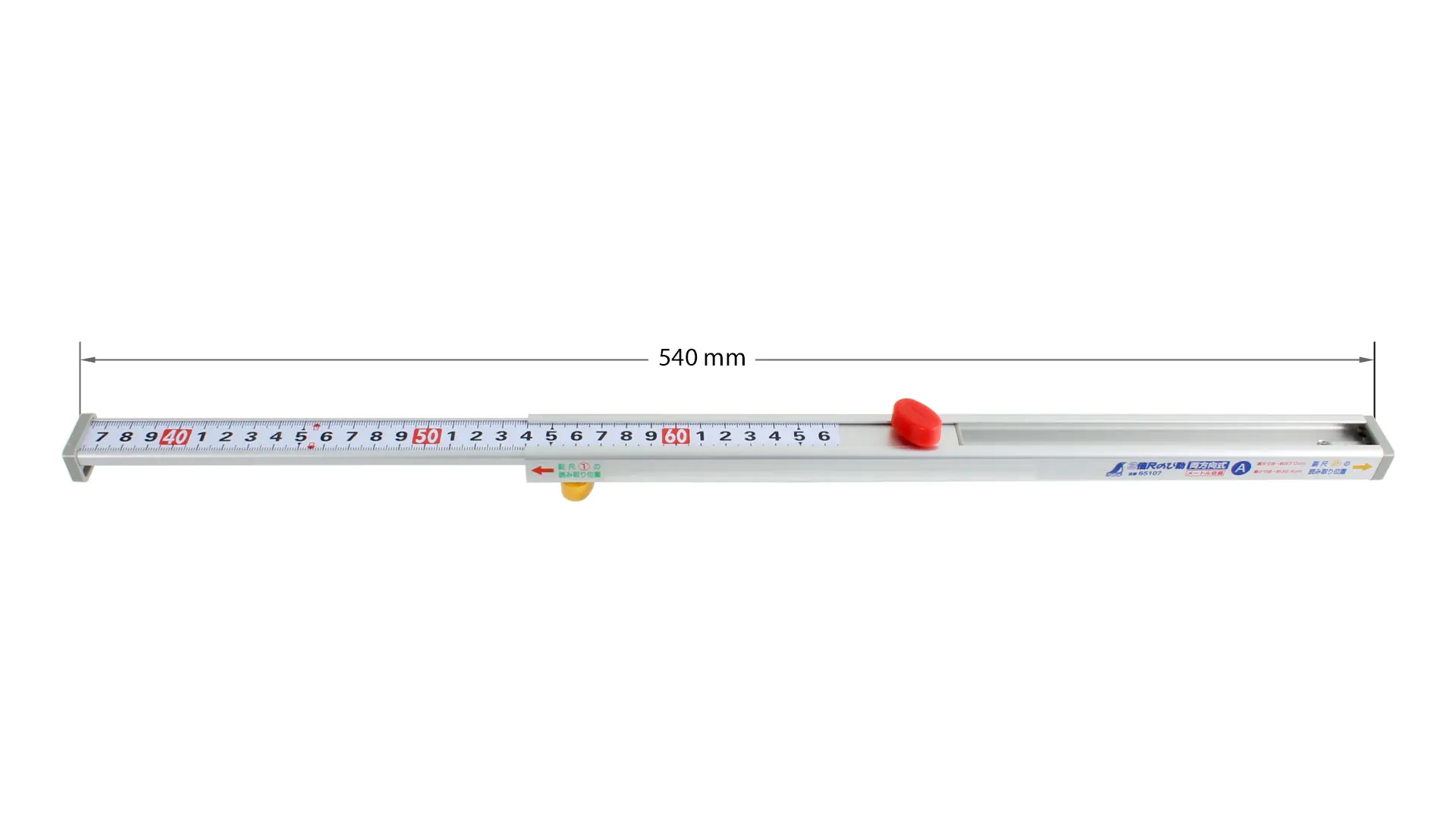

After loosening the red locking screw on the right, the rail is extended to the left and can be fixed in this position using the screw. The reading is taken at the end of the main body on the left. If the measuring range of the fully extended rail in the first step is insufficient, the measuring rod is rotated 180°, and the second rail is loosened and positioned using the yellow-orange locking screw. Again, the reading is taken at the end of the main body.
To protect sensitive surfaces in interior construction, the rails feature plastic caps at their ends. Furthermore, this robust yet lightweight tool proves beneficial for measuring clear dimensions on construction sites (windows, doors, stairs, ...), in the workshop, and during plumbing and masonry work.
| Properties | |
|---|---|
| Band | Steel |
| Weight | 230 g |
| Length Tolerance | ± 0.4 mm |
| Dimensions Width x Thickness | 26 × 17 mm |
| Body Material | Aluminum |
| Measurement Range | 36.5 – 97 cm |
| Stopper Screw | Polycarbonate Resin |
