Incra Miter 1000 - Crosscut and Miter Gauge
This new stop 1000HD is the most advanced in the 1000 series from Incra. HD stands for "High Definition".
The protractor features 180 fixed angle settings for every single degree and additional locking points at 22.5°, allowing you to reliably avoid errors. An additional vernier enables a setting with 1/10° precision! Furthermore, it is equipped with a 464 mm long, extendable to 787 mm profiled telescopic stop made of aluminum. The included foldable "Shop Stop" allows for precise length adjustments. There are also metric and inch scales designed for the stop's receiving slots. It is also suitable for cutting parts for segment turning; for example, 25.7° can be set for 7-sided objects and 18° for 10-sided objects to accurately duplicate the parts.
Dimensions of the sliding guide: 17-3/4 in. x 3/4 in. x 3/8 in.
(450 mm x 18.7 mm x 9.5 mm)
Slightly undersized to fit into T-slots manufactured with larger tolerances.
Diameter of the angle measuring unit: 7-1/2 Inch (192 mm)
The protractor features 180 fixed angle settings for every single degree and additional locking points at 22.5°, allowing you to reliably avoid errors. An additional vernier enables a setting with 1/10° precision! Furthermore, it is equipped with a 464 mm long, extendable to 787 mm profiled telescopic stop made of aluminum. The included foldable "Shop Stop" allows for precise length adjustments. There are also metric and inch scales designed for the stop's receiving slots. It is also suitable for cutting parts for segment turning; for example, 25.7° can be set for 7-sided objects and 18° for 10-sided objects to accurately duplicate the parts.
Dimensions of the sliding guide: 17-3/4 in. x 3/4 in. x 3/8 in.
(450 mm x 18.7 mm x 9.5 mm)
Slightly undersized to fit into T-slots manufactured with larger tolerances.
Diameter of the angle measuring unit: 7-1/2 Inch (192 mm)

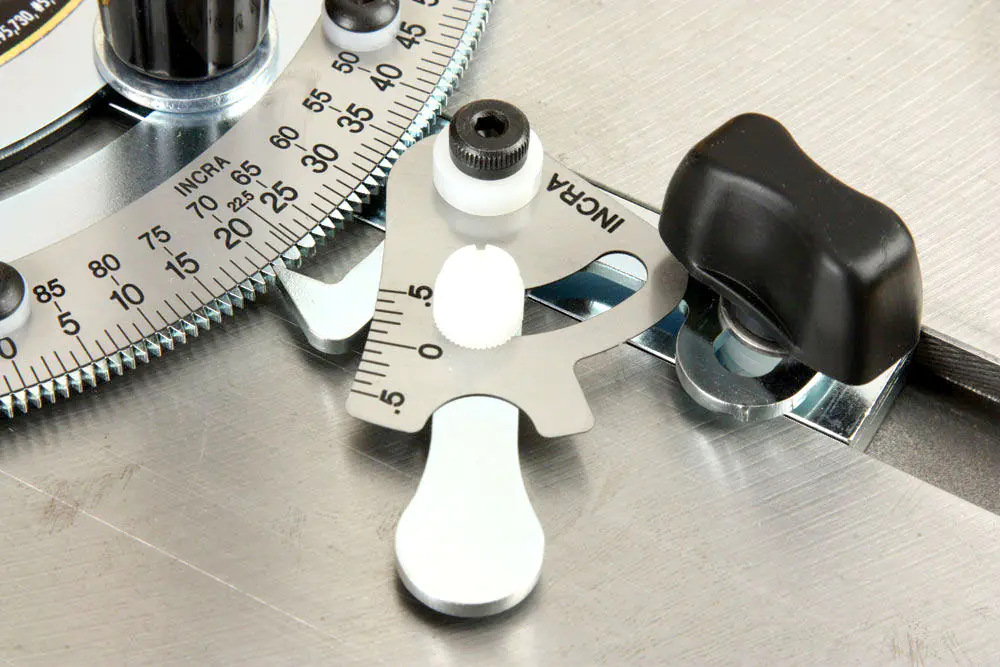

Detail view of the angle measuring unit with cutouts for precise angle adjustment and the vernier for a 1/4° setting.
This T-clip on the sliding guide is removable. This allows the guide to fit into 3/4 inch rails that do not have a T-widening at the bottom.
GlideLOCK Miter Bar

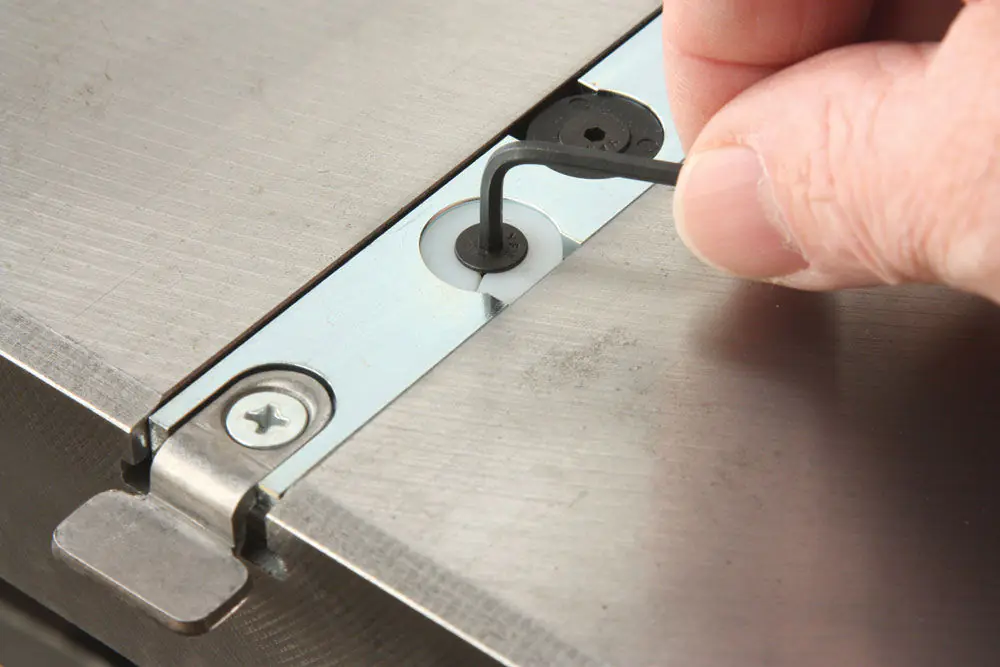

6 expansion discs made of plastic and metal give you the ability to adjust the glide rail play-free. This prevents inaccuracies that often arise from lateral play.
This glide rail fits into grooves with straight sides 19 mm wide and at least 7.1 mm deep. A T-widening of 17.9 mm at the bottom is convenient, but not required. The width adjustability of the glide rail ranges from 18.8 mm to 19.4 mm.
6 expansion discs made of plastic and metal give you the ability to adjust the glide rail play-free. This prevents inaccuracies that often arise from lateral play.
This glide rail fits into grooves with straight sides 19 mm wide and at least 7.1 mm deep. A T-widening of 17.9 mm at the bottom is convenient, but not required. The width adjustability of the glide rail ranges from 18.8 mm to 19.4 mm.

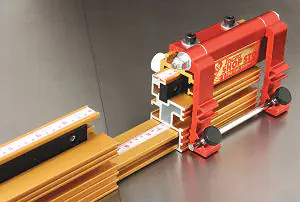

Telescoping IncraLOCK Fence
The 457 mm long telescoping fence can be extended up to 787 mm.
The 457 mm long telescoping fence can be extended up to 787 mm.
