Pantograph

PRO MILESCRAFT

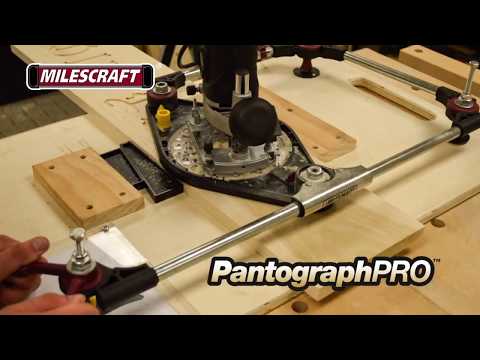

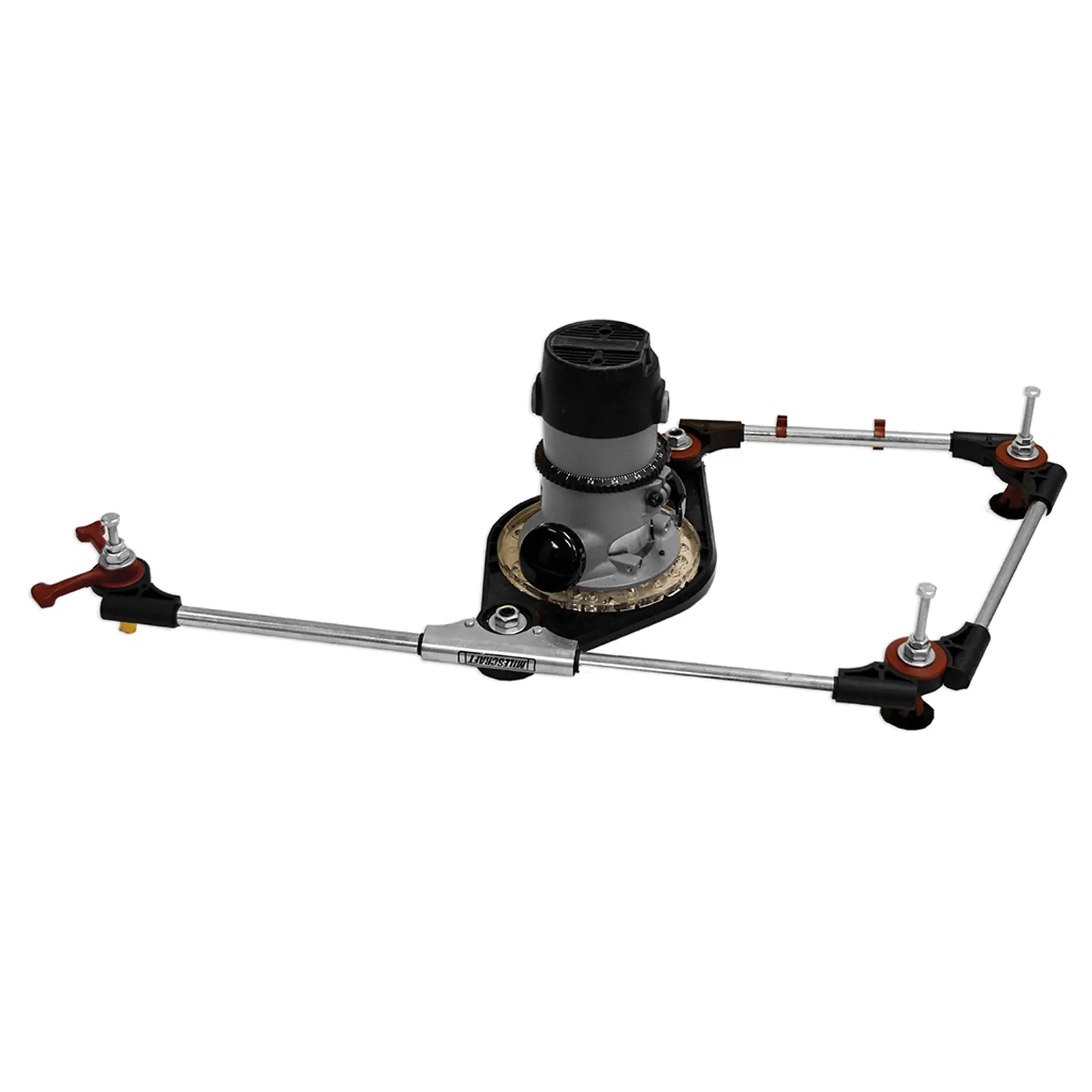

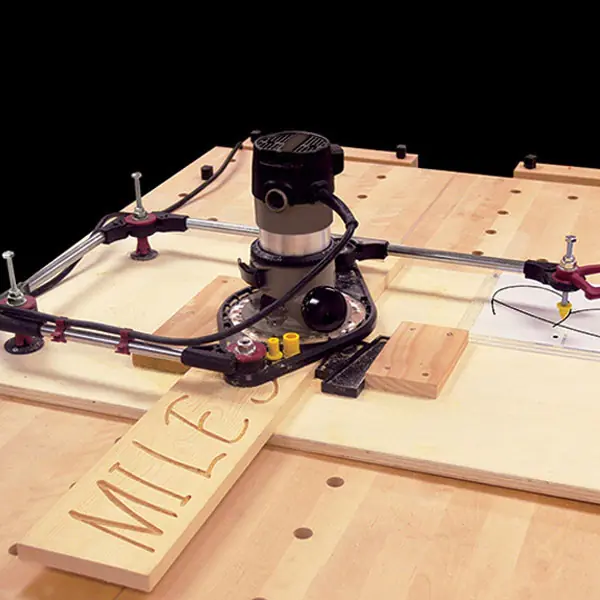

The Milescraft PantographPRO™ expands the capabilities of routers and allows for easy and precise guiding of the router. Thanks to the TurnLock™ base plate, the router can be quickly attached and detached. Anything that can be printed can also be routed. It is the only pantograph that comes largely pre-assembled. This is a complete routing system – including 3 router bits, 3 styluses, 2 template fonts, and design templates. All necessary assembly hardware is included – you only need a router and wood. By tracing the stylus along the template, the router takes over the work.

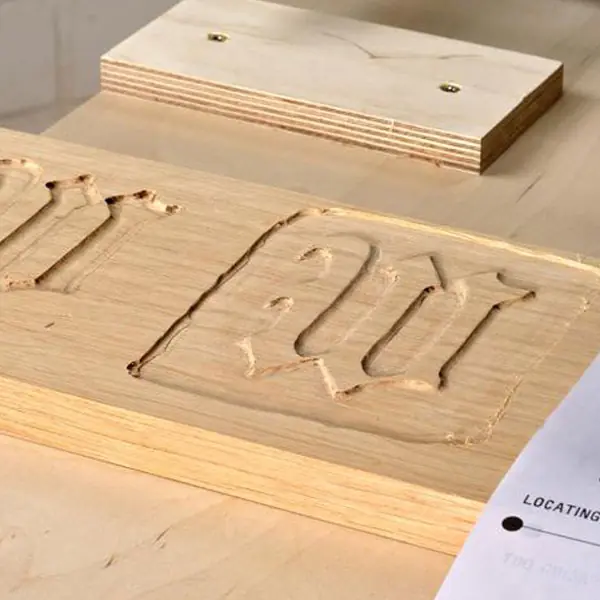

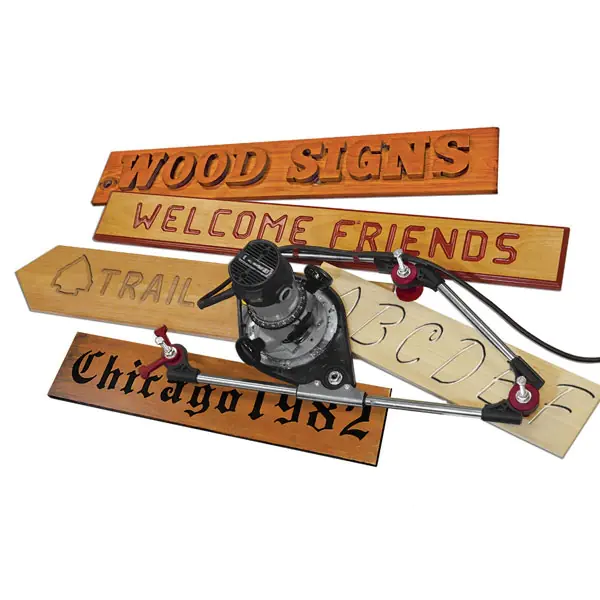

With this copying router unit, you can copy letters, shapes, reliefs, and images.
The appropriate router bits are included, so you can start right away.
Certainly, taking a look at the included user manual is very advisable.

PantographPRO™ Features:

• Trace letter templates or drawings while the router performs the cut at a 50% reduced scale

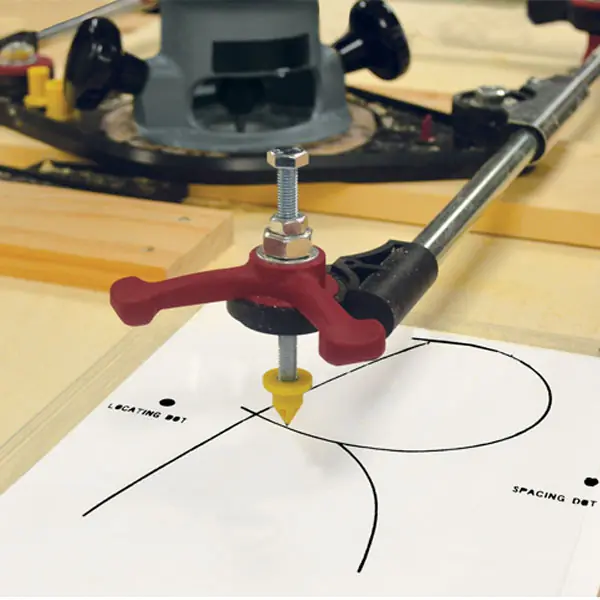

• Precise guidance and control of the router with a smooth-operating stylus
• Easy mounting on most routers thanks to the included TurnLock™ base plate and mounting hardware
• Create your own templates, e.g., from computer prints, coloring books, or other designs
• Minimal assembly required

TurnLock™ Base Plate:

• Transparent base plate for optimal view of the work area
• Durable polycarbonate base plate, adaptable if necessary (e.g., by drilling or filing) for non-standard routers
• Centering pin for quick and precise mounting of the base plate
• Includes common mounting screws for most routers
• Equipped with the patented TurnLock™ technology

TurnLock™ Technology:

• Quick, tool-free change of template guides and router bits
• Thumb-operated lock and unlock mechanism for faster and safer tool changes
• The TurnLock™ base plate is compatible with all Milescraft® template guides

Base Plate Compatibility and Base Plate Drawing
In the download section, we have provided two documents that include questions about the compatibility of common routers and a drawing of the included base plate.
