MagnaLOCK Plate MLP690890-AL
Available, delivery time: 1-3 businessdays within Germany
Product information

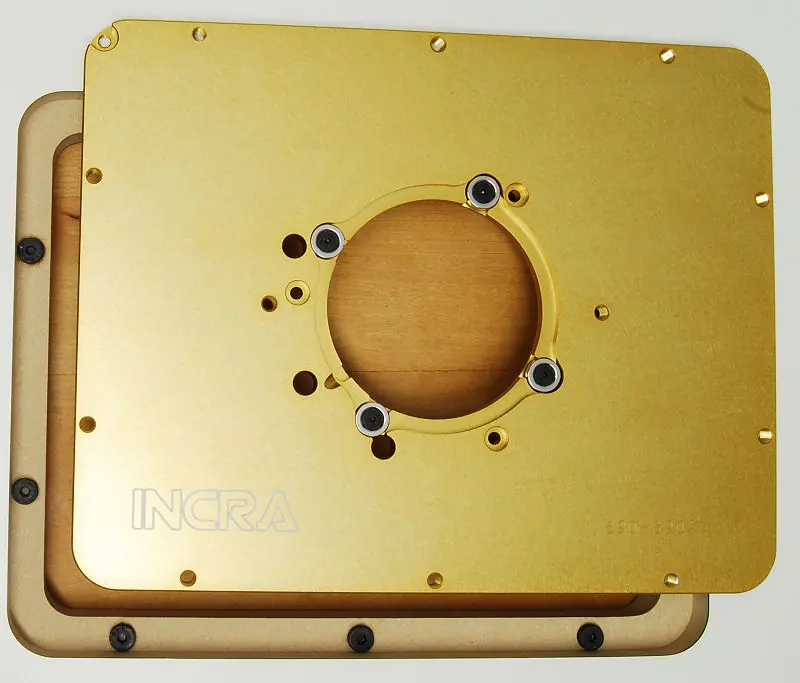

These mounting plates fit all INCRA router tables or even custom-built router tables with a cutout of 9-1/4 inch (235 mm) x 11-3/4 inch (298.5 mm).
Note: These mounting plates are manufactured for the American market. Therefore, only a few routers produced for the German market will fit these plates without modifications! You can still make use of these practical mounting plates by choosing the MLPUNDRILLED-AL (No. 314619) and drilling the required holes yourself.
Each of these mounting plates comes with 3 laser-cut steel reducer rings with openings of 1 inch (25.4 mm), 2-1/8 inch (54 mm) and 3-5/8 inch (92 mm). Additional rings are available in an 8-piece set.
10 leveling screws, 1 eccentric screw for clamp fastening, and matching inch hex keys are included!
For:
Bosch 1617, 1618 (Access for above-the-table height adjustment may need to be drilled)
Dewalt DW618
Makita RF-1101, RF1100
Milwaukee 5615, 5616 (It is possible that drilling may be required for height adjustment)
Porter Cable 690-699 series
Porter Cable 890-899 series
Porter Cable 7529, 8529
Rigid R2930 (It is possible that drilling may be required for height adjustment)

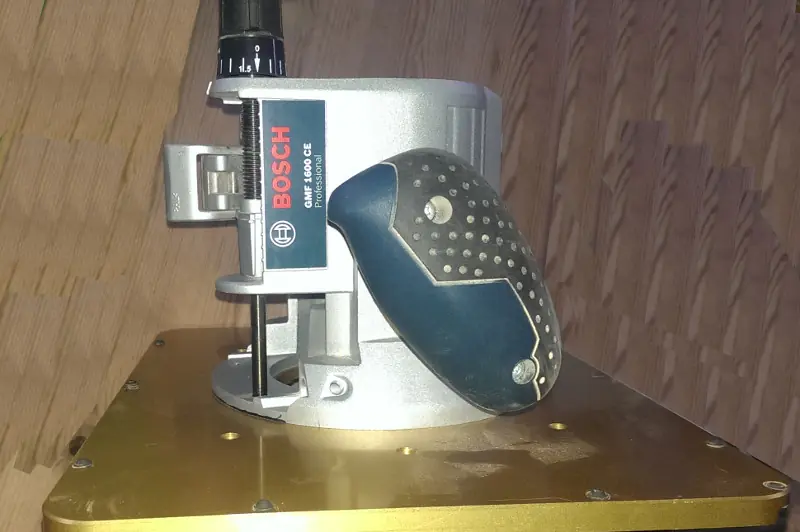

Bosch GMF1600CE (Drilling is required for height adjustment!)
| Features | |
|---|---|
| Cutout | 9-1/4 inch (235 mm) x 11-3/4 inch (298.5 mm) |
| Material | Aluminum |
| Reducer Rings | 1 inch (25.4 mm), 2-1/8 inch (54 mm), 3-5/8 inch (92 mm) |
| Model | MLP690890-AL |
