JessEm Mast-R-Lift Excel

II with laminated phenolic table top 610 x 813 mm

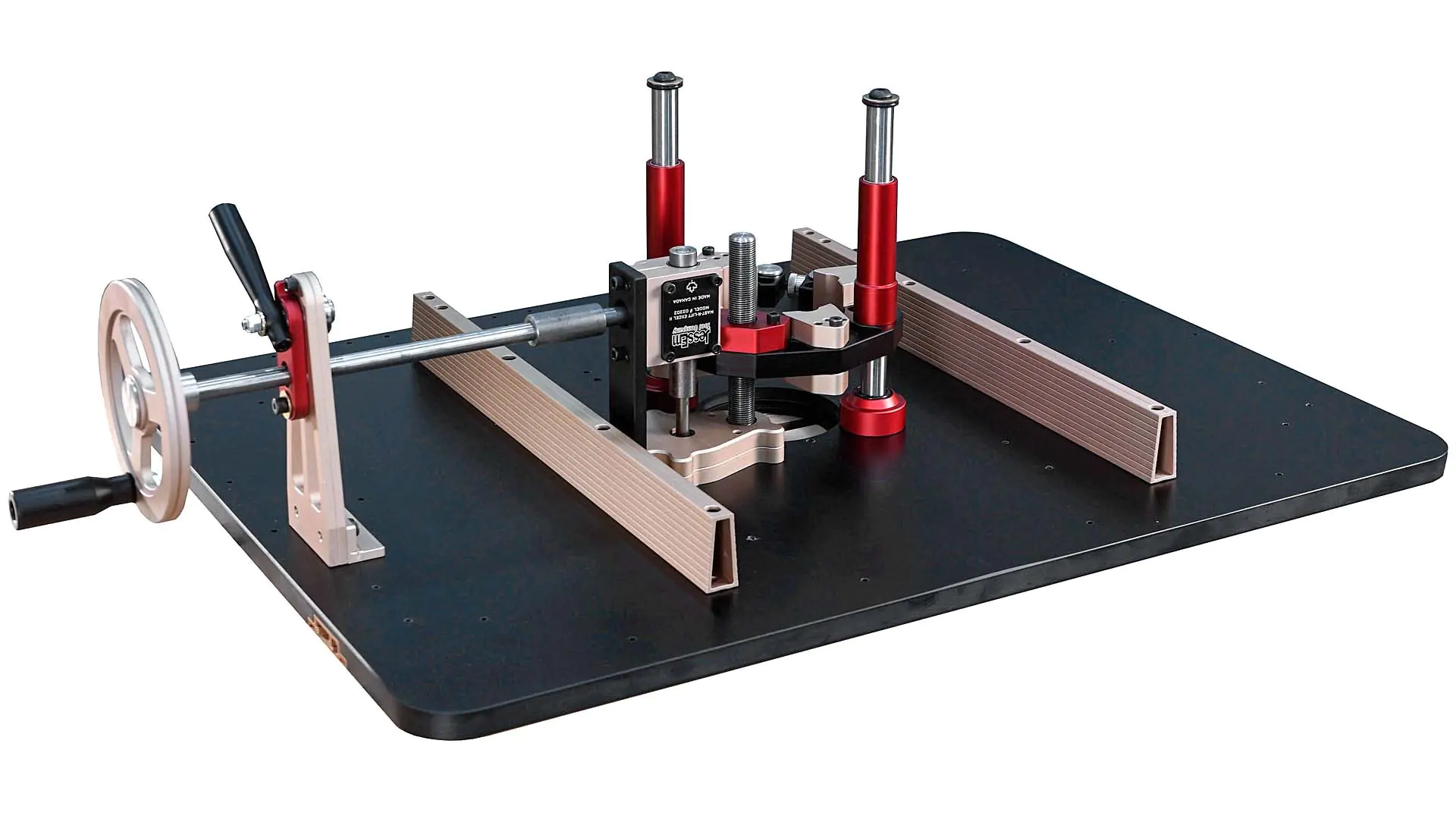

The Mast-R-Lift Excel II is the top model among router tables from JessEm. It has many improvements over previous models. The spindle of the lift now has double-sealed bearings, the adjustment mechanism—this operates via two gears—features six double-sealed bearings, and the clamping mechanism has three. This guarantees a very long service life and easy operation. Even with the heaviest routers available on the market, the Excel II can be easily adjusted.

All router lifts from JessEm feature a patented pre-tensioning of the threaded spindle. This removes the play in the thread and simultaneously provides a slight resistance when turning. This also prevents vibrations that typically occur due to the play in the spindle and prevents unwanted adjustments of the spindle during routing. Naturally, the Mast-R-Lift Excel II also has this feature. However, JessEm wanted to go further and has therefore installed a special clamping mechanism in the Excel II, which allows for long-lasting, heavy routing tasks without any problems. Thus, the Excel II not only has the capability to pre-tension the spindle but also includes a locking lever located next to the adjustment wheel for the routing depth. Simply flipping the lever ensures that the Excel II is securely clamped, allowing you to rely completely on the depth setting being fixed.

The guide shafts of the Mast-R-Lift Excel II, like all router lifts from JessEm, are hydraulically pressed into sockets. This allows the shafts to be fastened to the plate with more than one screw. This better distributes the lateral forces and leads to a very stable and durable connection that can handle even the heaviest routing tasks. All milled parts of the Mast-R-Lift Excel II are manufactured on CNC-controlled machines at JessEm’s factory in Oro-Medonte, Ontario, Canada. All non-wearing aluminum parts of the Excel II are anodized. This results in a better appearance, higher corrosion resistance, and increased resistance to wear.

The following router motors fit into the MAST-R-LIFT EXCEL II. Note: Most of these routers are intended for the North American market and are probably only available in limited quantities here in Europe. Does NOT fit routers where the motor is permanently attached to the router base!

• AEG MF 1400 KE (92 mm Motor Dia.)
• Porter Cable 7518 (4.2” = 107 mm Motor Dia.)
• Porter Cable 690/890 (3.5” = 89 mm Motor Dia.)
• JessEm’s Pow-R-Tek Router Motor - (4.2" = 107 mm Motor Dia.)
• Bosch 1617/1618 (3.5” = 89 mm Motor Dia.)
• DeWalt 610/618/616 (3.5” = 89 mm Motor Dia.)
• Makita 1101 (3.218” = 82 mm Motor Dia.)
• Hitachi M12VC & KM12VC (3.267” = 83 mm Motor Dia.)
• Milwaukee 5625 (4.143” =105 mm Motor Dia.)
• Milwaukee 5615/5616/5619 (3.32” = 84 mm Motor Dia.)
• Craftsman 17543/17540/28190 (3.5” = 89 mm Motor Dia.)
• Rigid R29302 (3.625” = 92 mm Motor Dia.)
• Portamate PM-P254 (4.2” = 107 mm Motor Dia.)

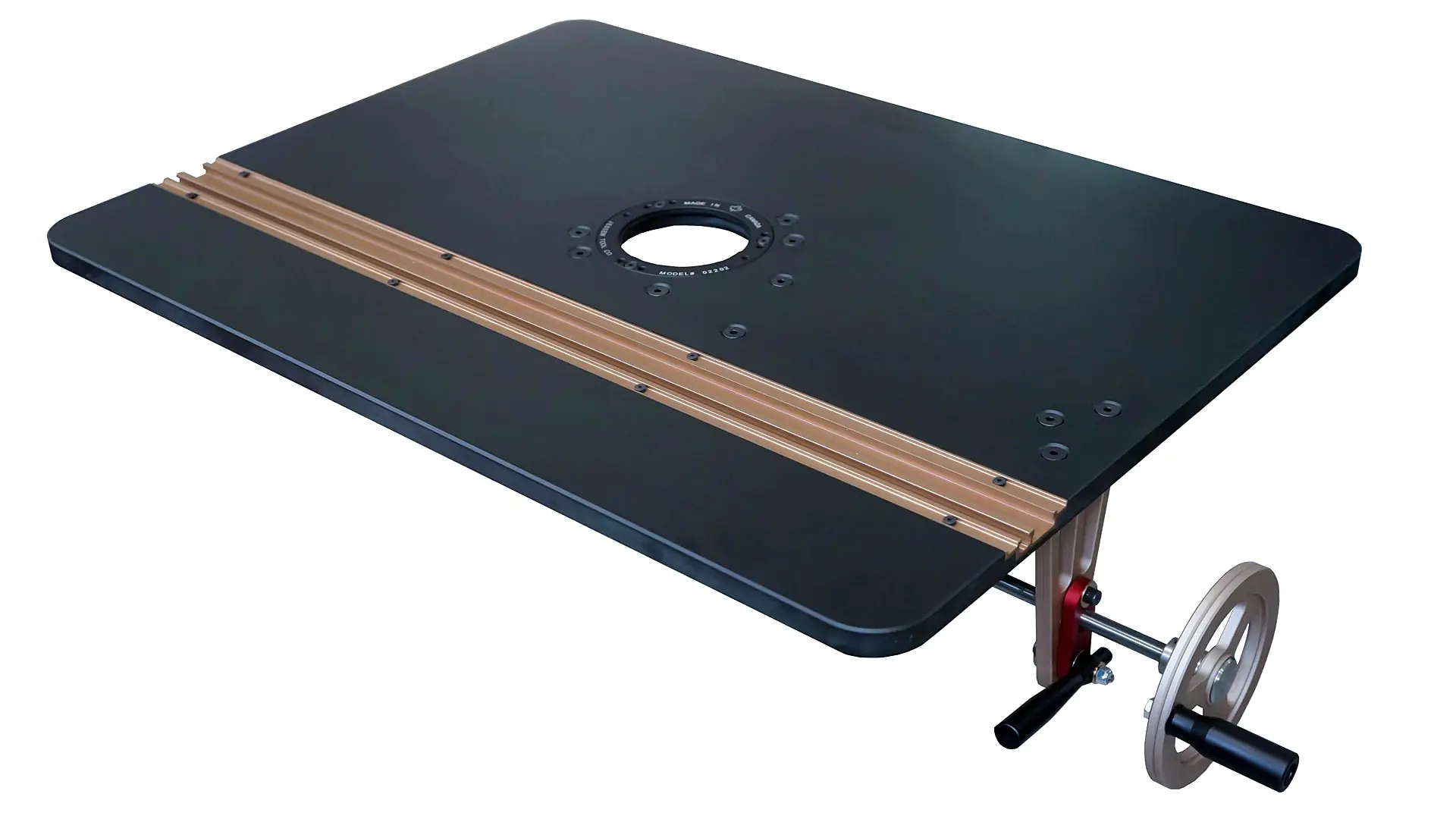

Router table plate size 610 × 813 mm
Weight of router table plate 14 kg
Weight of lift and accessories 8.3 kg
