MagnaLOCK Plate MLP7518-AL
Available, delivery time: 2-3 days
Product information

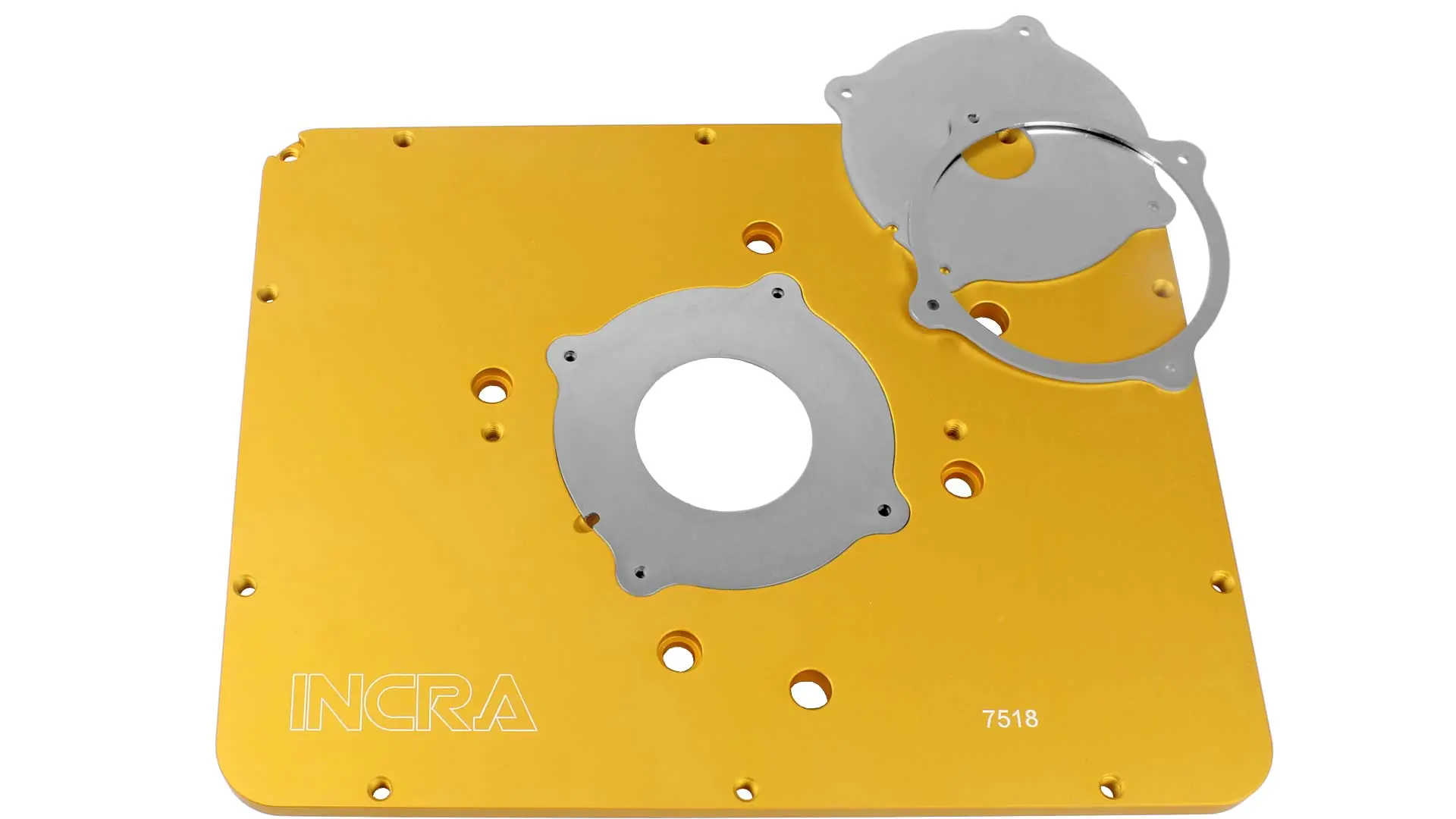

These mounting plates fit all INCRA router tables or even custom-built router tables with a cutout of 9-1/4 inch (235 mm) x 11-3/4 inch (298.5 mm).
Note: These mounting plates are manufactured for the American market. Therefore, only a few routers produced for the German market fit into these plates without modification! You can still make use of these practical mounting plates by choosing the MLPUNDRILLED-AL (No. 314619) and drilling the required holes yourself.
Each of these mounting plates is delivered with 3 laser-cut steel reducing rings with openings of 1 inch (25.4 mm), 2-1/8 inch (54 mm), and 3-5/8 inch (92 mm). Additional rings are available as an 8-piece set.

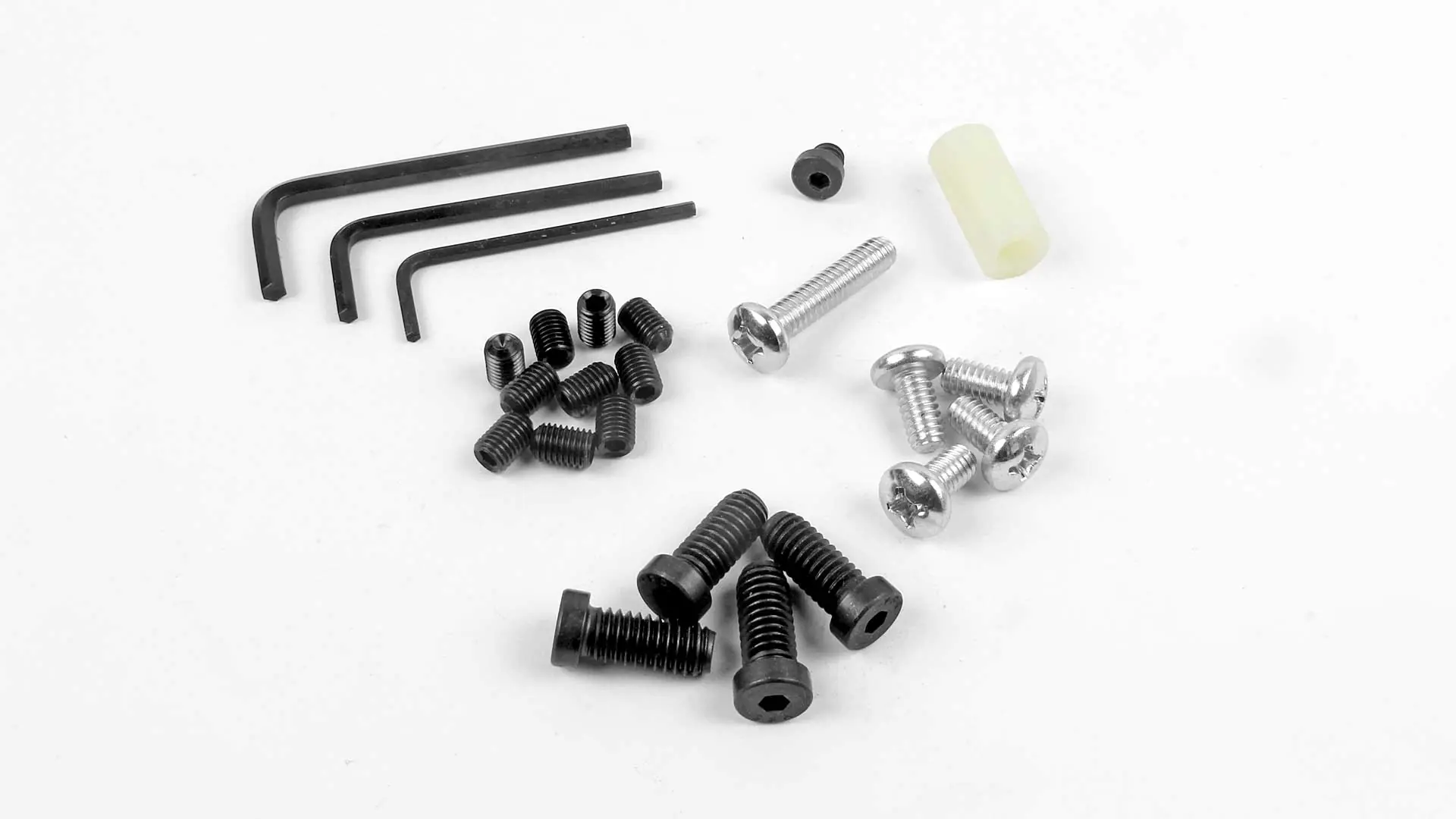

10 leveling screws, 1 eccentric screw for clamping, and matching inch hex keys are included in the delivery!
For:
Milwaukee 5625 (It may be necessary to drill for height adjustment)
Porter Cable 7518, 7519
Porter Cable 7538, 7539
Triton TRC-001, TRA-001, MOF-001KC, MOF-001 (Screws required for Triton mounting are not included.)
| Features | |
|---|---|
| Cutout | 9-1/4 inch (235 mm) x 11-3/4 inch (298.5 mm) |
| Material | Aluminum |
| Reducer Rings | 1 inch (25.4 mm), 2-1/8 inch (54 mm), 3-5/8 inch (92 mm) |
| Version | MLP7518-AL |
