Folding guide rail 75° - 135°,
60 cm from SHINWA
Available in 110 days, delivery time 2-3 days
Product information

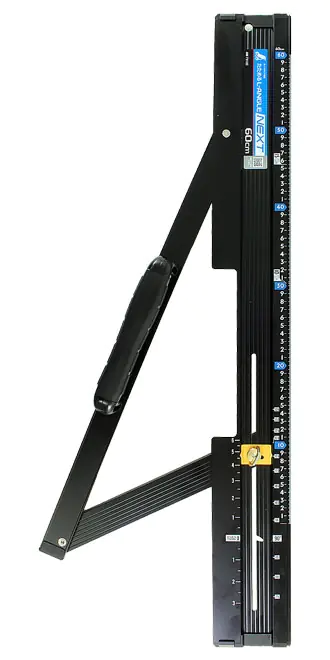

The L-Angle NEXT guide rail, to which any hand-held circular or jigsaw can be applied, makes cutting boards and trimming panels safe and easy.
Since the angle can be folded with the large, rubberized handle, this sturdy guide rail, which is also pleasantly lightweight, is ideal for use on assembly, construction sites, or in small workshops. When folded, it takes up just as little space as a wide stop ruler. Thanks to a hole, the rail can be hung up in a space-saving manner.
A specially profiled rubber pad on the underside effectively prevents slipping on the cutting material. The angle part, stop, and rail are made of lightweight aluminum, ensuring fatigue-free work even during prolonged use.
For better positioning of the circular or jigsaw on the workpiece, the rail extends a minimum of about 7 cm beyond the workpiece at the guide edge, which is reinforced with a layer of stainless steel for wear protection.
Equipped with a large, very easy-to-read metric scale that enables marking work and measurements. Adjustable in the range of 75° to 135°. There is a marking every 5°, and the mechanism locks in at 90°. Each position is reliably secured with a screw with a foldable bracket.
With a groove for the SHINWA sliding stop (available separately). This effectively prevents the cut from veering off course.
| Features | |
|---|---|
| Accuracy | 0.1 mm over 100 mm rail length when locked in 90° position |
| Rail | Aluminum 817 × 100 × 7 mm, with plastic end caps |
| Folded dimensions | 817 × 100 × 73 mm |
| Unfolded dimensions 90° | 817 × 346 × 73 mm |
| Guide surface | Stainless steel |
| Handle | Rubberized plastic |
| Stop height | 15 mm |
| Weight | 1000 g |
