Convex Profile Plane No.
50 jUUMA
Available, delivery time: 1-3 businessdays within Germany
Product information

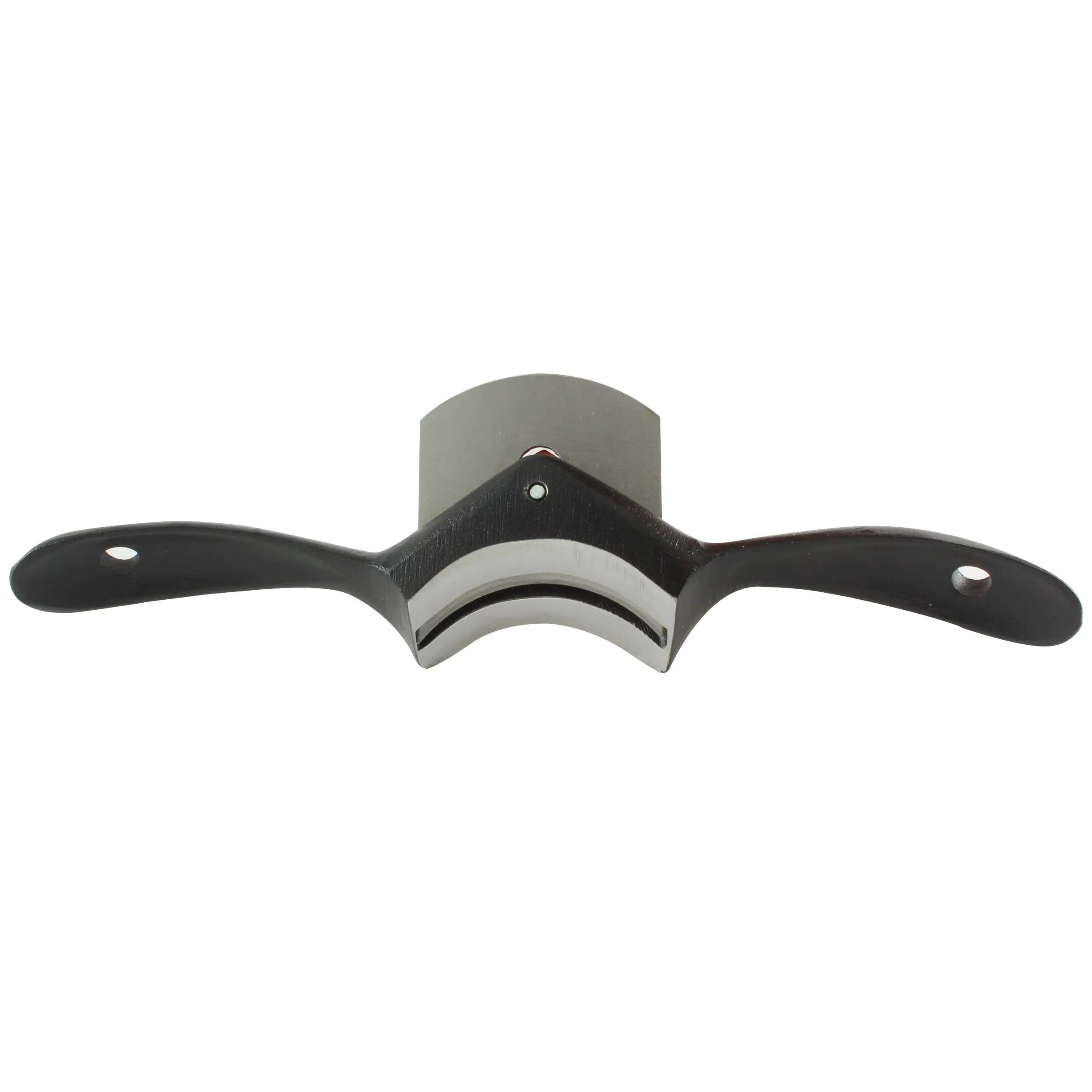

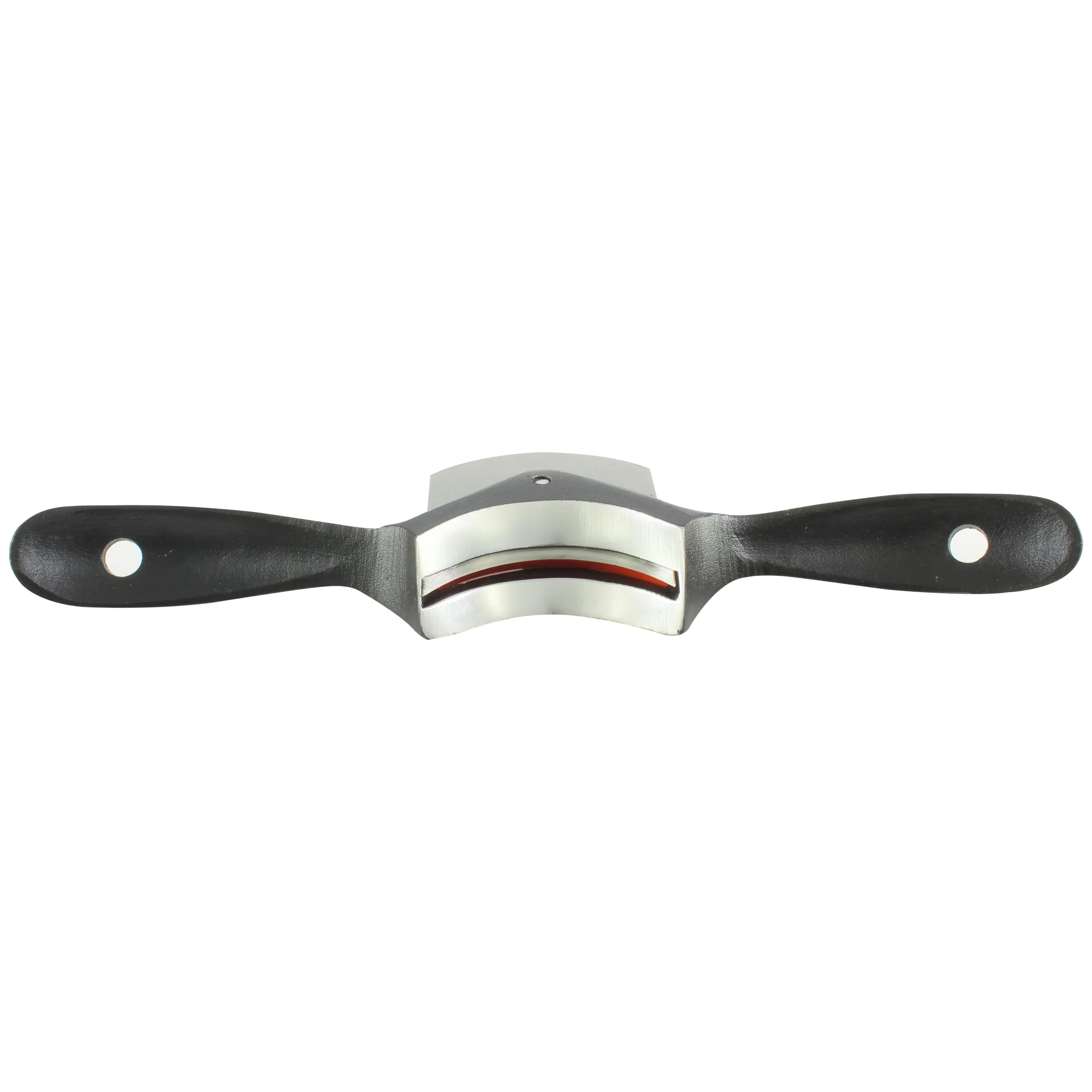

This curved spokeshave with a convex blade is ideal for working on concave shapes, such as those found in chair seats, boat building, or generally in the production of coves.
Satin matte black plane body with a slightly textured surface, featuring the usual surface quality typical of such cast parts. Contrasting with this is the massive cap. Pleasant to grip, incomparable to glossy paint, possibly even in a shock color!
The adjustment of the blade is done manually with a moderately tightened screw, whose head features a knurled side surface. Fine adjustment, for example using a hammer, is secured by using a screwdriver. For this purpose, the screw head has a slot.
The spokeshave can be used both pulled and pushed, with the relatively long sole providing better guidance than significantly shorter versions of other models. Both handles feature a practical, large-sized opening for hanging and space-saving storage when the plane is not in use.
Good quality for practical use!
| Technical Specifications | |
|---|---|
| Blade Angle | 55° |
| Blade Width | 54 mm |
| Blade Thickness | 2.2 mm |
| Bevel Angle | 25° |
| Blade Radius | approximately 40 mm |
| Width | 244 mm |
| Sole Width | 65 mm |
| Sole Length | 24 mm |
| Cap Thickness | 5 mm |
| Weight | 362 g |
| Plane Body Material | stress-relieved cast ductile iron |
| Blade Material | high carbon steel |
| Blade Hardness | 55 – 60 HRC |
