Concave Rabbet Plane No.
55 jUUMA

Available, delivery time: 1-3 businessdays within Germany
Product information

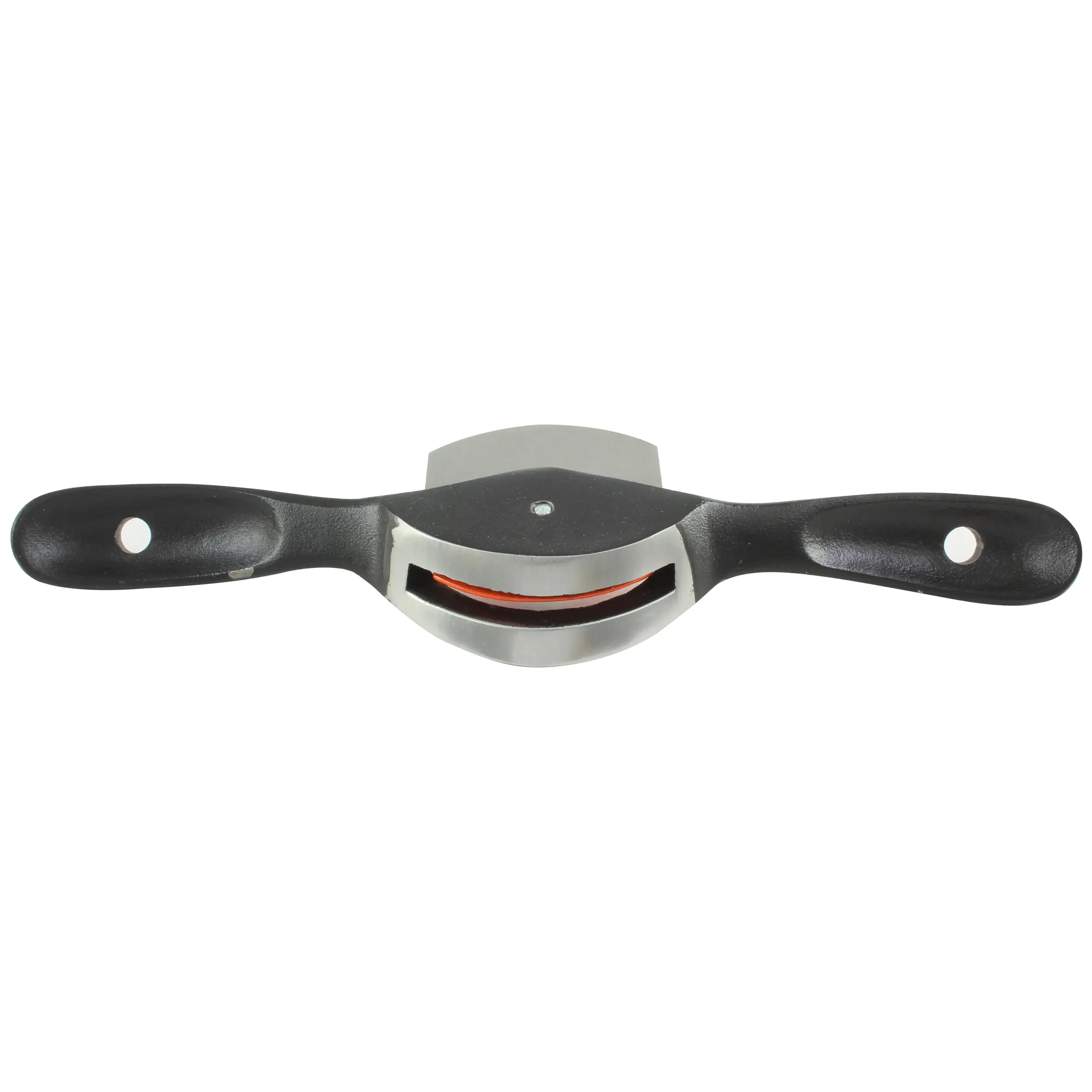

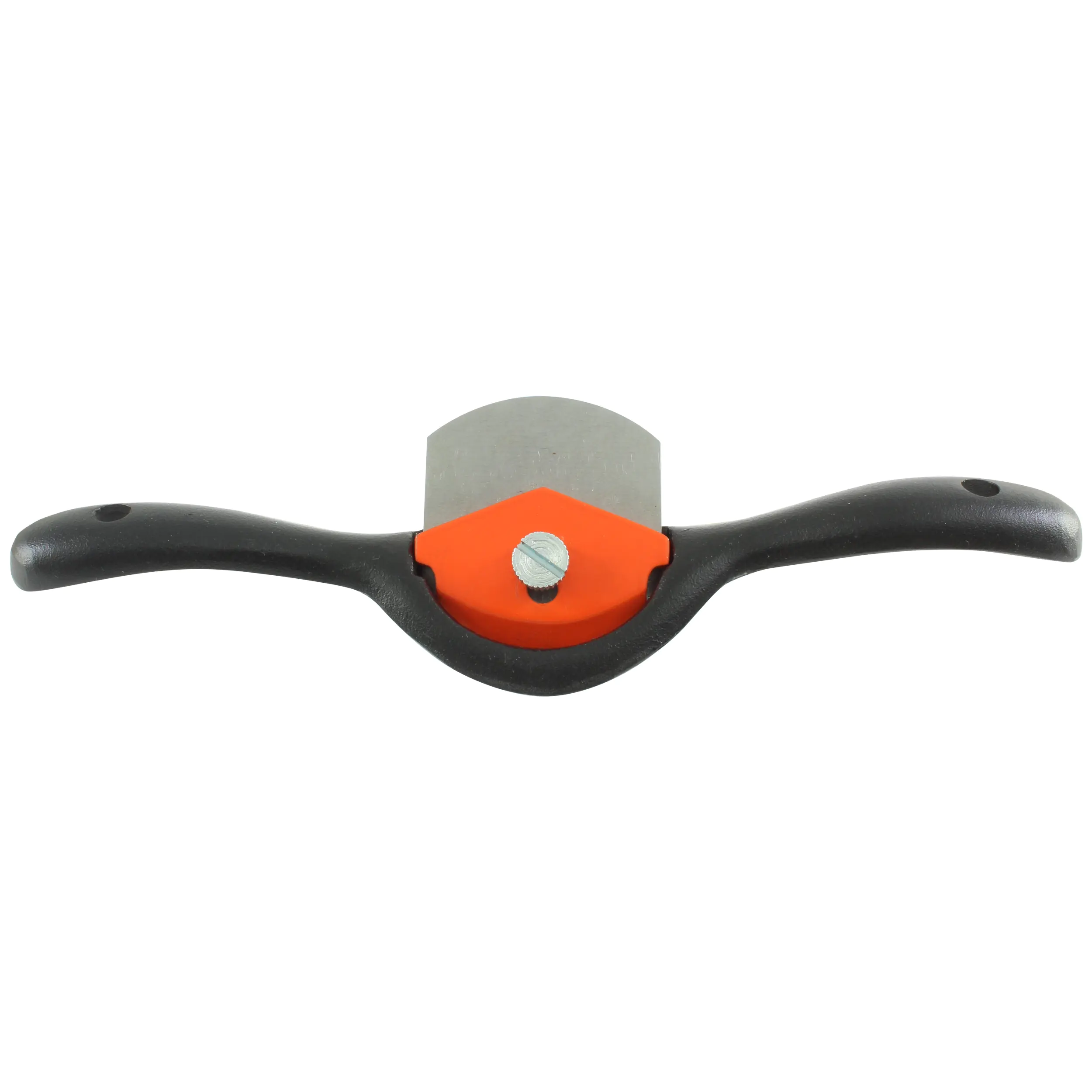

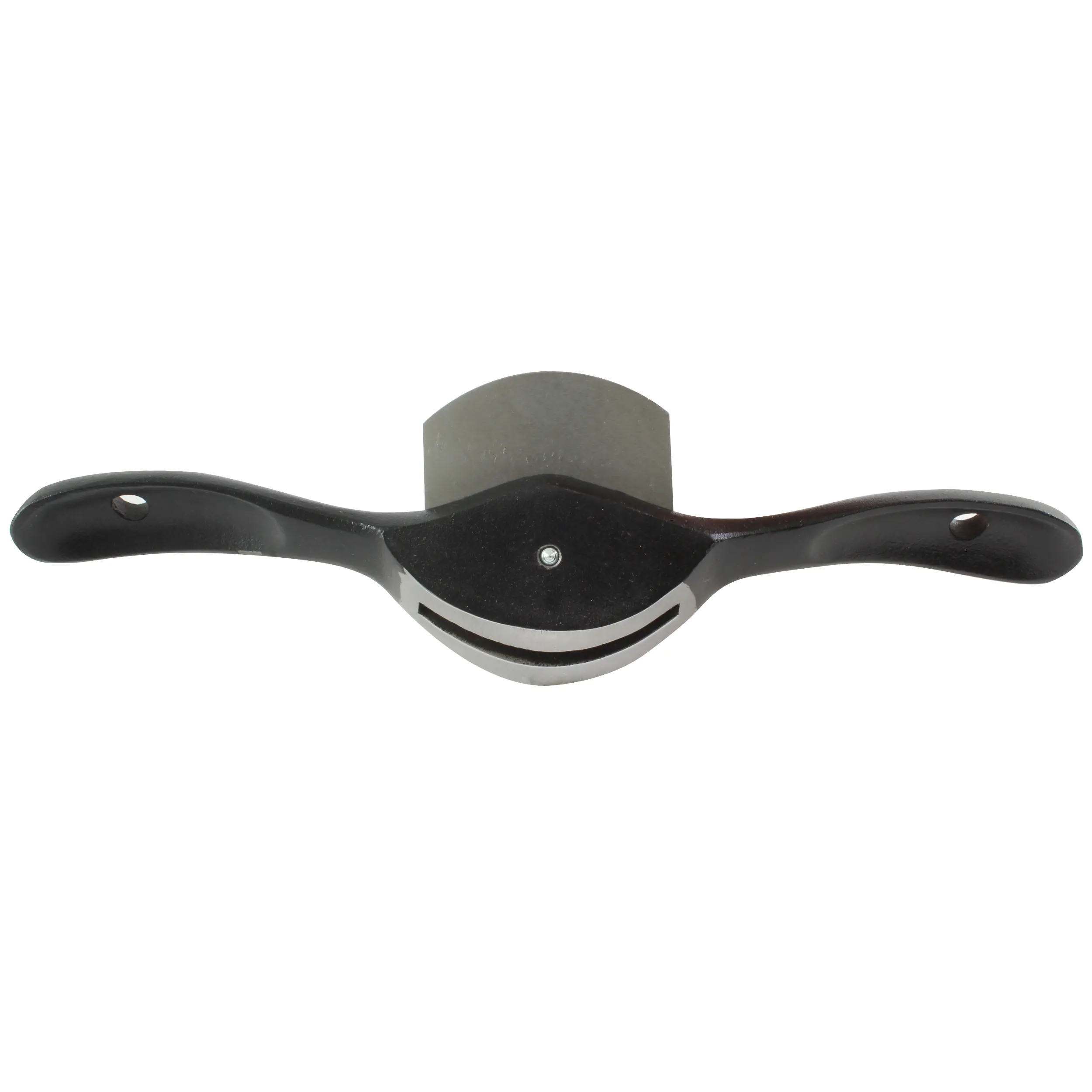

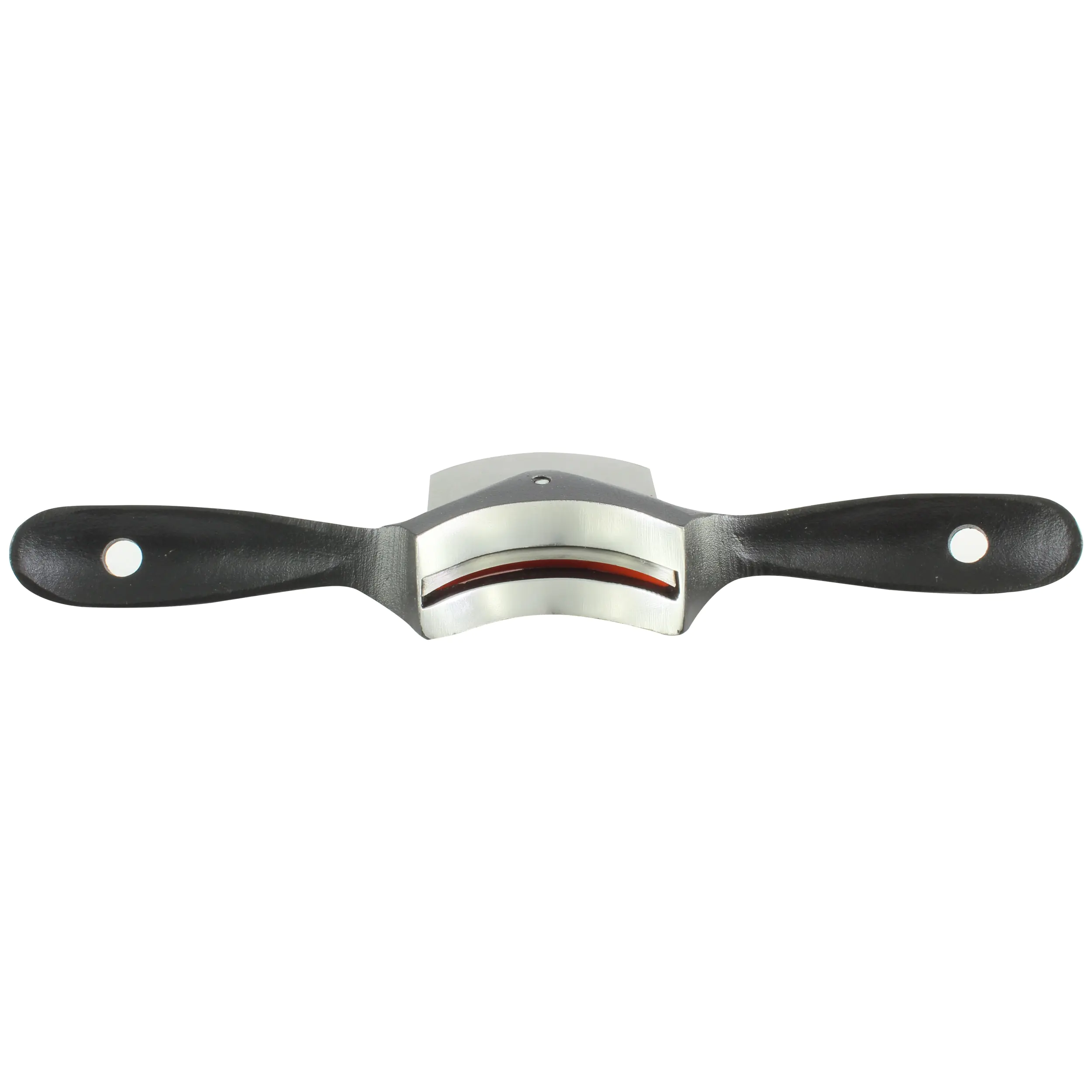

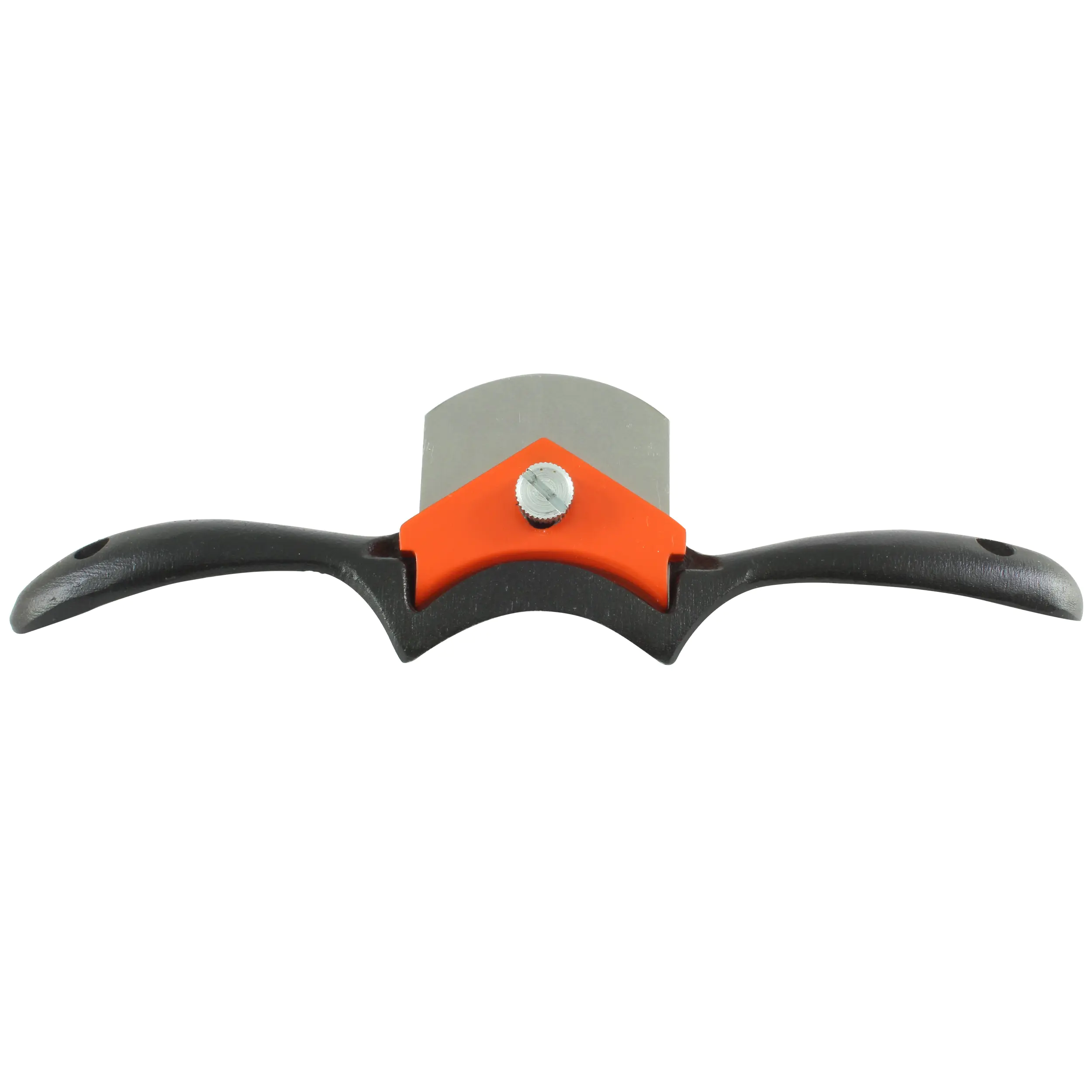

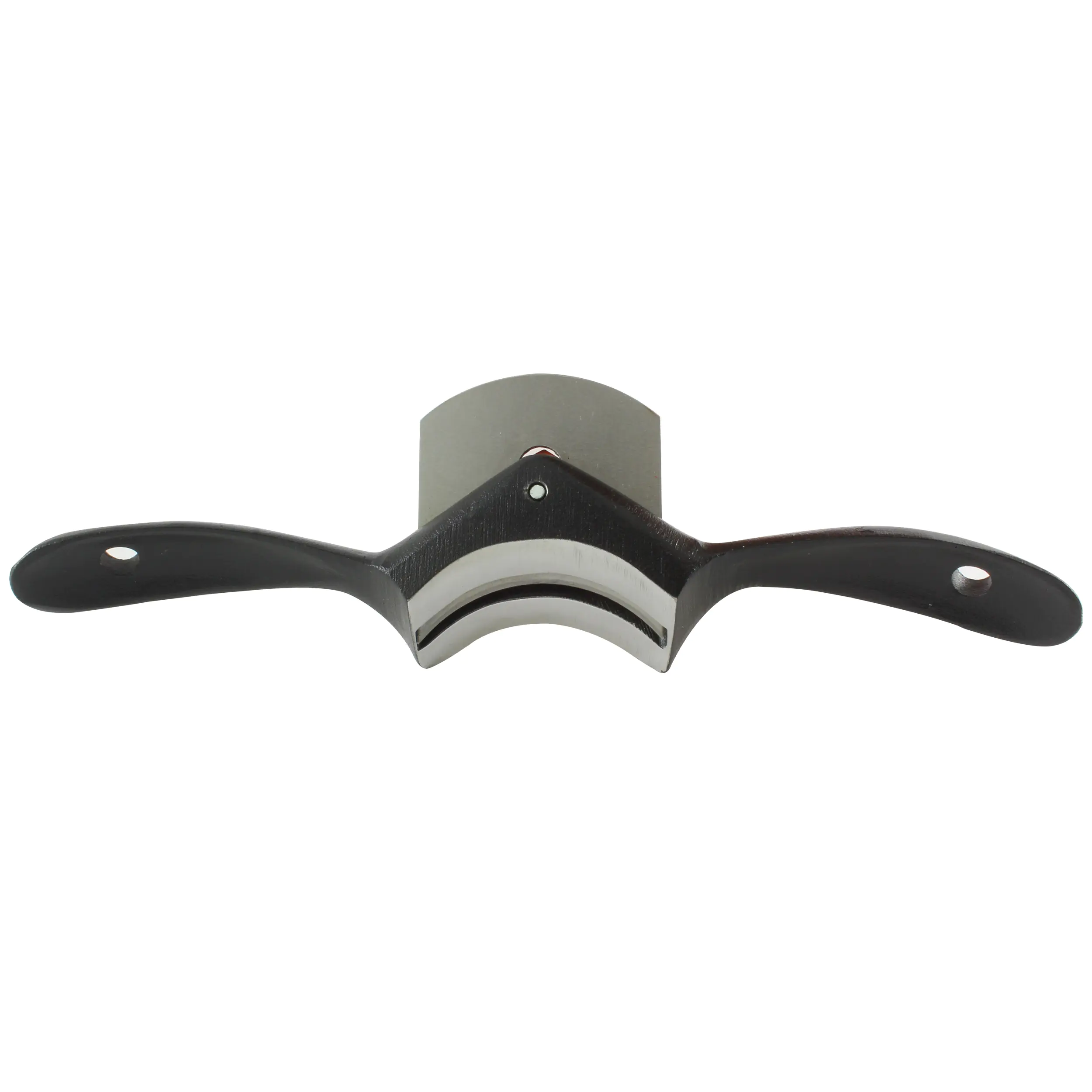

This concave iron spokeshave is ideal for shaping convex forms, such as those found on handrails, chair legs, dowels, or paddles.
The plane body is finished in a satin matte black with a lightly textured surface, typical of the surface quality found on such cast parts. It features a contrasting solid cap. It is comfortable to grip, incomparable to glossy lacquer, possibly even in a shocking color!
The adjustment of the iron is done manually with a moderately tightened screw, whose head has a knurled side surface. Fine adjustments, such as with a hammer, are ensured through the use of a screwdriver. For this purpose, the screw head has a slot.
The scraper plane can be used both pulled and pushed, with the relatively long sole allowing for better guidance than significantly shorter versions of other models. Both handles have a practical, large-sized opening for hanging and space-saving storage when the plane is not in use.
Good quality for use!
Technical Specifications | |
---|---|
Angle of Plane Iron | 45° |
Plane Iron Width | 54 mm |
Plane Iron Thickness | 2 mm |
Bevel Angle | 30° |
Plane Iron Radius | approximately 32 mm |
Width | 239 mm |
Sole Width | 57 mm |
Sole Length | 27 mm |
Cap Iron Thickness | 4 mm |
Weight | 287 g |
Plane Body Material | stress-relieved cast ductile iron |
Plane Iron Material | high-carbon steel |
Plane Iron Hardness | 55 – 60 HRC |
