Circle Cutter no.
36 High Speed Steel STAR-M
Available, delivery time: 2-3 days
Product information

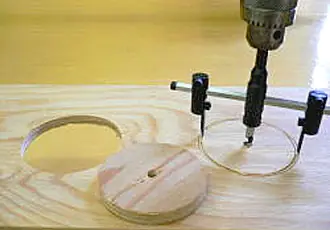

This high-quality circle cutter from Japan cuts precise circles in wood, wood composites, and chipboard. Also suitable for Teflon! With both outer and inner cutting, the edges are clean and tear-free. An extra tip for thin materials is included in the delivery. A suitable hex key is provided.
When drilling from two sides: 50 mm
Revolutions: max. 1000 min-1
Recommendation: Start well below the maximum speed and gradually increase it. This way, you can determine the ideal speed for your material.
- The screw that fixes the drill holder on the arm! This becomes visible at the base of the drill holder when the drill is unscrewed.
- The screw that fixes the drill in the drill holder!
- The two screws that fix the blade holders on the arm!
- The two screws that fix the blades on the blade holders!
- The two screws at the end of the tool arm!
- Repeat the procedure from time to time and after each change of the additional arms!
For stationary use in a drill press or with a drill in a drill stand, where the workpiece is securely fixed, we recommend the drill 312217.
| Features | |
|---|---|
| Drill Diameter | infinitely adjustable 30 – 120 mm |
| Maximum Drilling Depth | 25 mm |
| Shank Thickness | 10 mm |
| Revolutions | max 1000 min-1 |
