Incra V27 - Crosscut and Miter Gauge

April 3, 2025 Additional information

Incra V27 - Crosscut and Miter Gauge

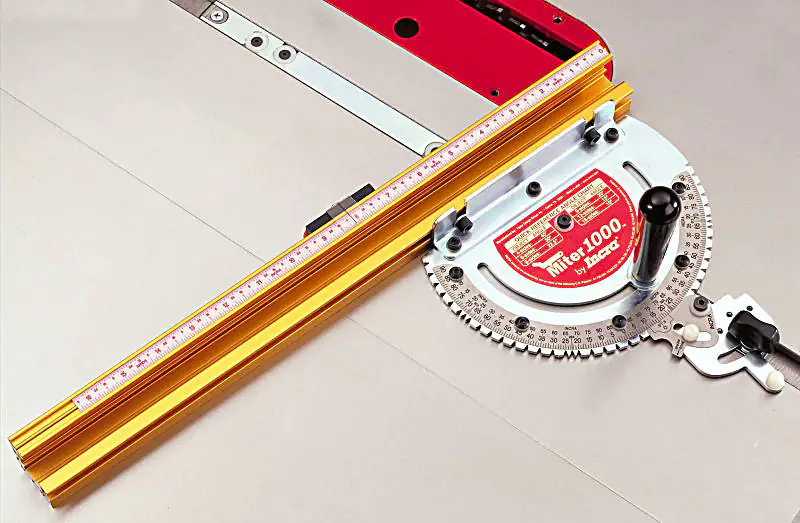

If you are looking for a miter gauge that combines high precision with manageable costs, this Miter 1000 is the right choice.

A solid angle measuring unit made of steel combined with an aluminum stop featuring a length adjuster and interchangeable scales in inches or metric!

Repeatability:
Whether it's simple 90° cuts, basic miters, or complicated miter objects with 20 sides: you can always repeat the cuts accurately!

Details:
41 fixed angle settings
5° increments in angle adjustment

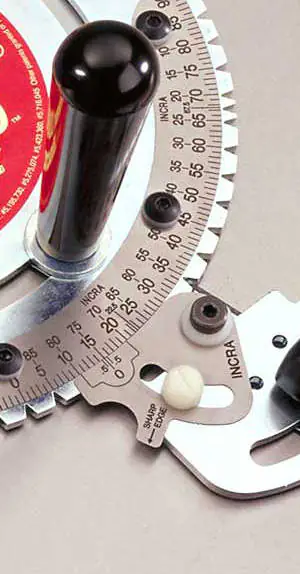

additionally a small vernier for 1/2°
Adjustment range plus minus 90°
Additionally fixed settings for 22 1/2° and 67 1/2°
GlideLOCK sliding guide with 6 expansion discs
Incra aluminum stop 18 inches (457 mm)
INCRA plastic length adjuster

Dimensions of the sliding guide: 17-3/4 in. x 3/4 in. x 3/8 in.
(450 mm x 18.7 mm x 9.5 mm)
Slightly undersized to fit into T-slots made with larger tolerances.
Diameter of the angle measuring unit: 7-1/2 inches (192 mm)

Detail

This T-clip on the sliding guide is removable. This allows the guide to fit into 3/4 inch rails that do not have a T-widening at the bottom.

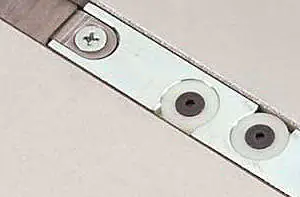

6 plastic spacer discs give you the opportunity to adjust the sliding guide play-free. This avoids inaccuracies that often arise from lateral play.
