Additional information about the carpenter's vise No. 52 1/2 without quick adjustment

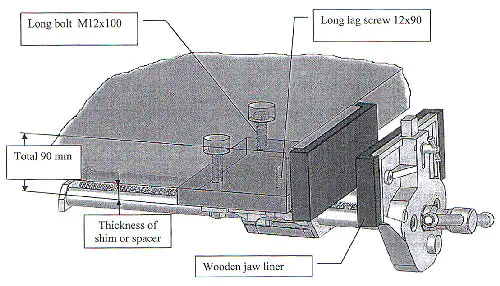

The vise should be secured with sufficiently large screws on a plate that cannot tip over. Keep in mind that this vise weighs 18 kg! We recommend M12 hexagon head screws for the rear holes, which are countersunk from above into the plate. For the front holes (i.e., near the jaw), we recommend 12 mm thick wood screws with hexagon heads, screwed in from below. The heads and nuts of the screws should be equipped with washers. Details see image!

You can easily cover the jaws with wood after assembly if you wish. Holes are provided for this purpose on the jaws.

Assembly Instructions

Mounting area: 265 mm wide 127 mm deep.
Hole spacing on the jaw: 190 mm
Hole spacing at the back: 175 mm
Total length: 605 mm
Clamping width: 395 mm
Clamping depth: 105 mm
Recommended wood thickness: 90 mm
Thinner plates can be doubled up at the mounting point!
