Template Guide 1/2 inch
VERITAS
€13.40*
Available in 176 days, delivery time 1-3 businessdays within Germany
Product number: 325732
Product information

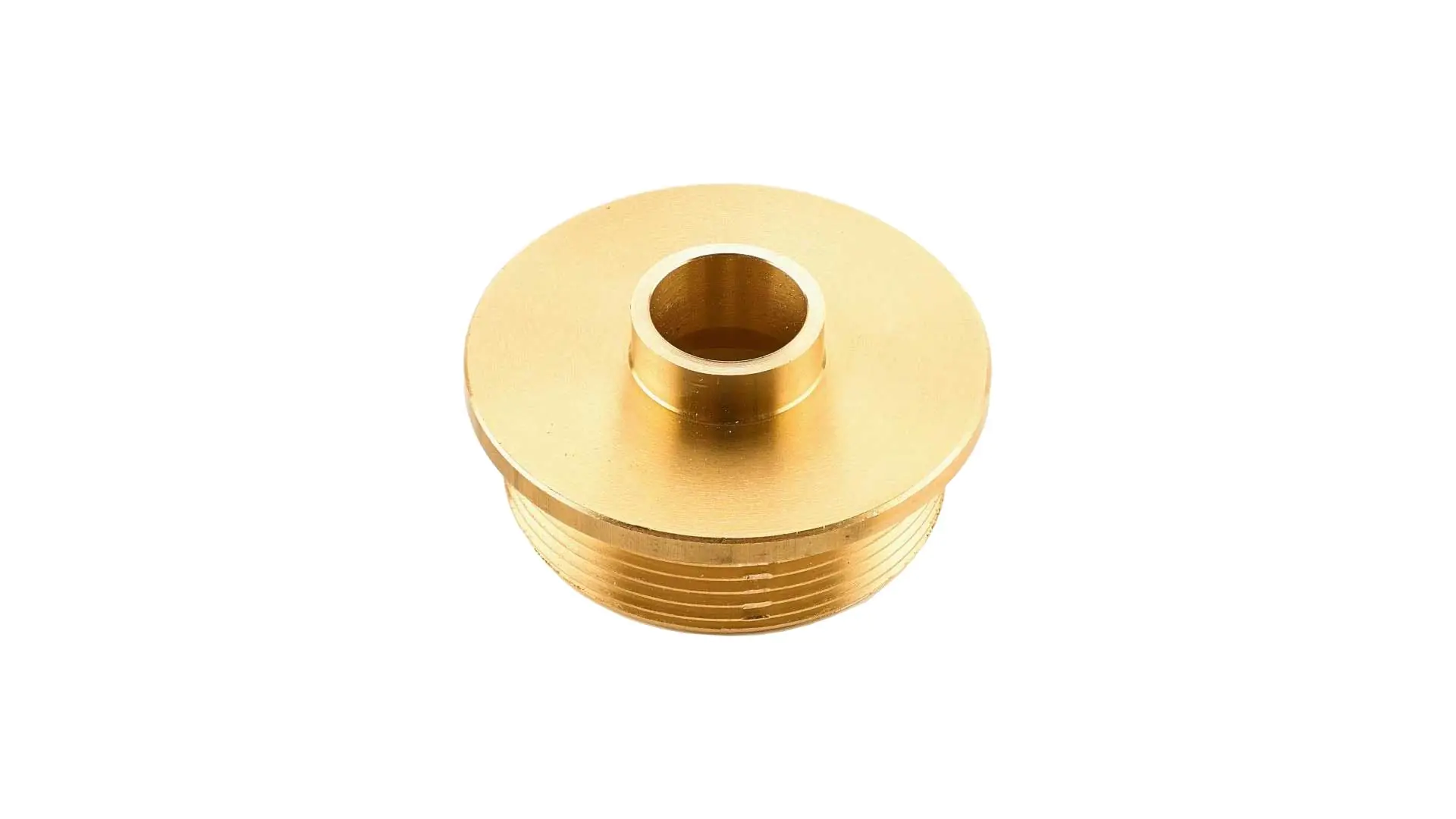

Used to follow the outline of a pattern, these solid brass template guides have a reduced height for use with the Veritas Compact Router Base Plate. The side of the template guide bears against the edge of a template as thin as 3/16 inch (4.8 mm).
Available in four sizes: 1/4 inch outside diameter for use with a 1/8 inch bit, 3/8 inch outside diameter for use with a 1/4 inch bit, 1/2 inch outside diameter for use with a 3/8 inch bit, and 5/8 inch outside diameter for use with a 1/2 inch bit.
Attached using a 1 3/16 inch (30.2 mm) threaded ring nut. Sold separately, see at the bottom of this page.
| Properties | |
|---|---|
| Outer diameter | 1/2 inch |
| Recommended cutter Ø | 9 mm, 3/8 inch |
