Wooden Plane Hardware Kit No Blade
VERITAS
Available, delivery time: 2-3 days
Product information

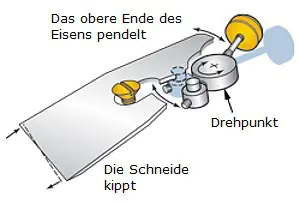

With the help of this kit (and basic woodworking skills), you can build a hand plane (with a bevel down, not a low-angle plane) out of wood by yourself. The iron adjustment is done via a Norris-style mechanism, allowing you to easily adjust the iron forward, backward, and sideways.
The kit includes, besides the plane iron, a Norris adjustment mechanism with a steel insert for mounting on the plane body, a threaded insert, and a pin for holding the cap. All components are made of brass, and the adjustment mechanism is made of steel. The lapped iron (available in A2, O1, and PM-V11) is 3.2 mm (1/8 inch) thick and 41 mm (1-5/8 inch) wide. The bevel has an angle of 25°.

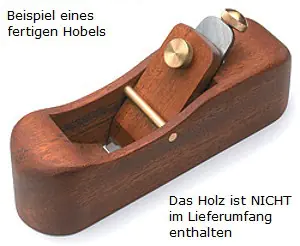

You can craft the plane from the wood of your choice. The piece must be at least 200 mm (8 inches) x 57 mm (2-1/4 inches) x 64 mm (2-1/2 inches) in size. A detailed printed building instruction is included (in English). You can customize the size and shape of the plane to your needs, providing you with a unique and very practical tool for your future projects.
A wonderful project for beginners and advanced users. The wood is NOT included in the delivery!
| Features | |
|---|---|
| Iron Width | 41 mm (1-5/8 inch) |
| Iron Thickness | 3.2 mm (1/8 inch) |
| Iron Material | no iron |
| Iron Adjustment | Norris style |
| Bevel Angle | 25° |
| Minimum Wood Size | 200 mm (8 inch) x 57 mm (2-1/4 inch) x 64 mm (2-1/2 inch) |
