Universal Variable Angle Plane Fence for
VERITAS and other Planes
Available, delivery time: 1-3 businessdays within Germany
Product information

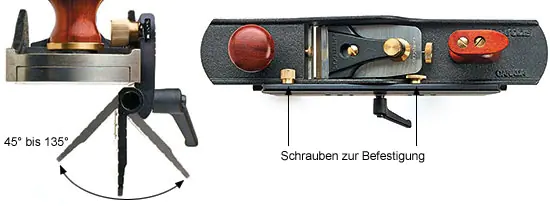

Designed to fit a wide array of bench planes, including those made by other manufacturers, this variable angle fence can be used left or right. Not just for right angles, the fence allows you to plane accurate and consistent angles from 45° to 135°.
Angles are set using a square or angle gauge, or directly on an angle you wish to match. A spring-loaded lever locks the fence and can be rotated out of the way when not needed.
Through-holes in the 280 mm (11 inch) long aluminum fence allow the attachment of a wooden extension, or a tapered spacer for planing angles less than 45°.
The fence clamps to the side wing of most planes using the included brass clamping knobs (refer to the chart here); the position of the clamping knobs is adjustable to accommodate the length of the plane’s side wing.
For planes such as the VERITAS jack rabbet, jointer, shooting and custom bench planes, the fence is designed to mount to the tapped holes in the side wings using stainless-steel knobs that are available separately.
Made in Canada
Fits Planes:
Veritas no. 4 Smooth
Veritas no. 4-1/2 Smoothing
Veritas no. 5-1/4W Bench
Veritas no. 6 Fore
Veritas Low-Angle Jack
Veritas Custom Bench
Veritas Bevel-Up Jointer
Veritas Jack Rabbet
Veritas Shooting
Veritas Miter
Stanley no. 4 – no. 7
Juuma no. 4 – no. 7
