TrackSawGuide
MILESCRAFT
Available, delivery time: 1-3 businessdays within Germany
Product information

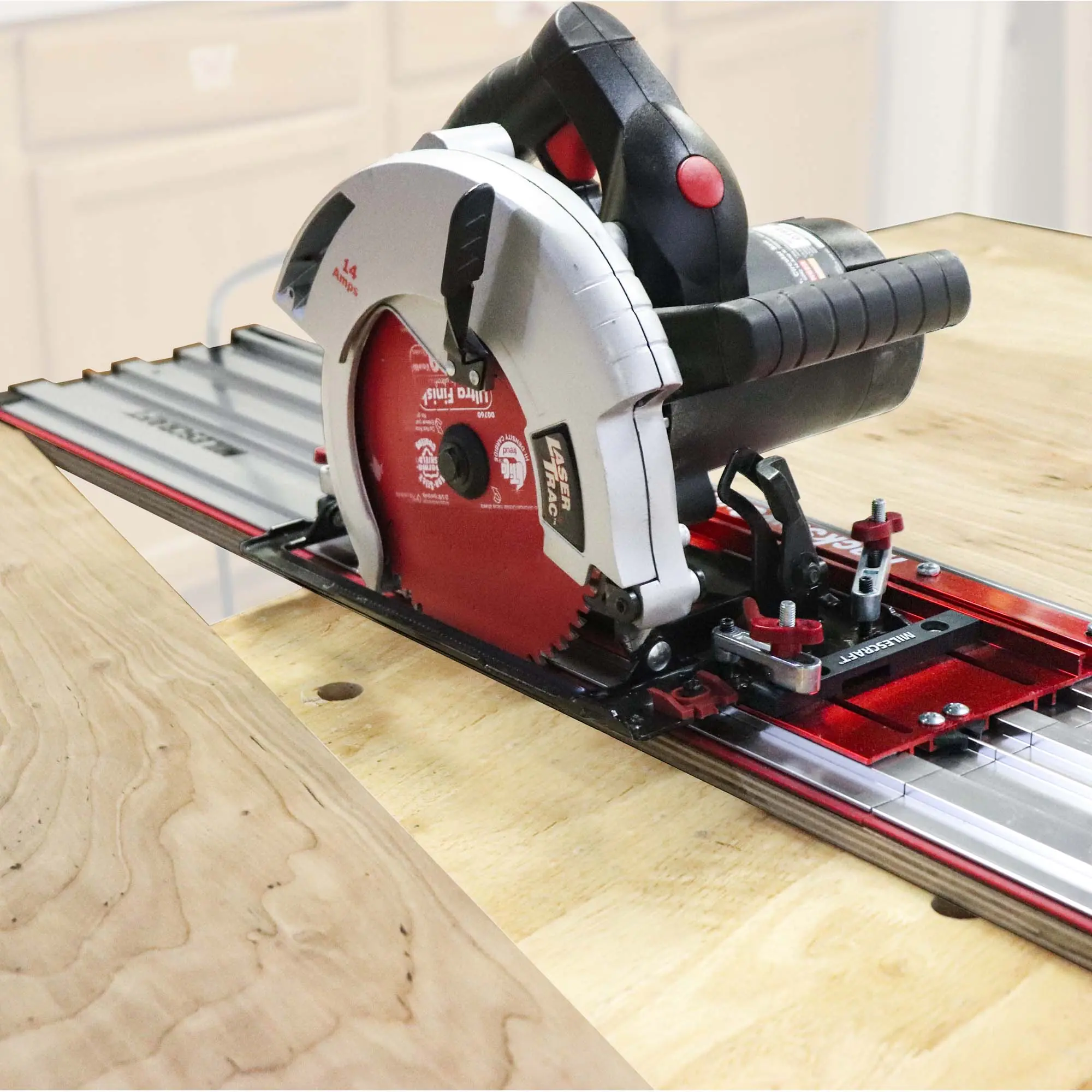

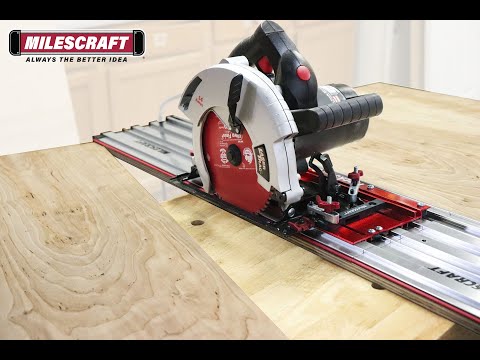

The Milescraft TrackSawGuide™ transforms an ordinary circular saw into a precisely guided saw for straight cuts, even for longer cuts, thanks to the rail system.

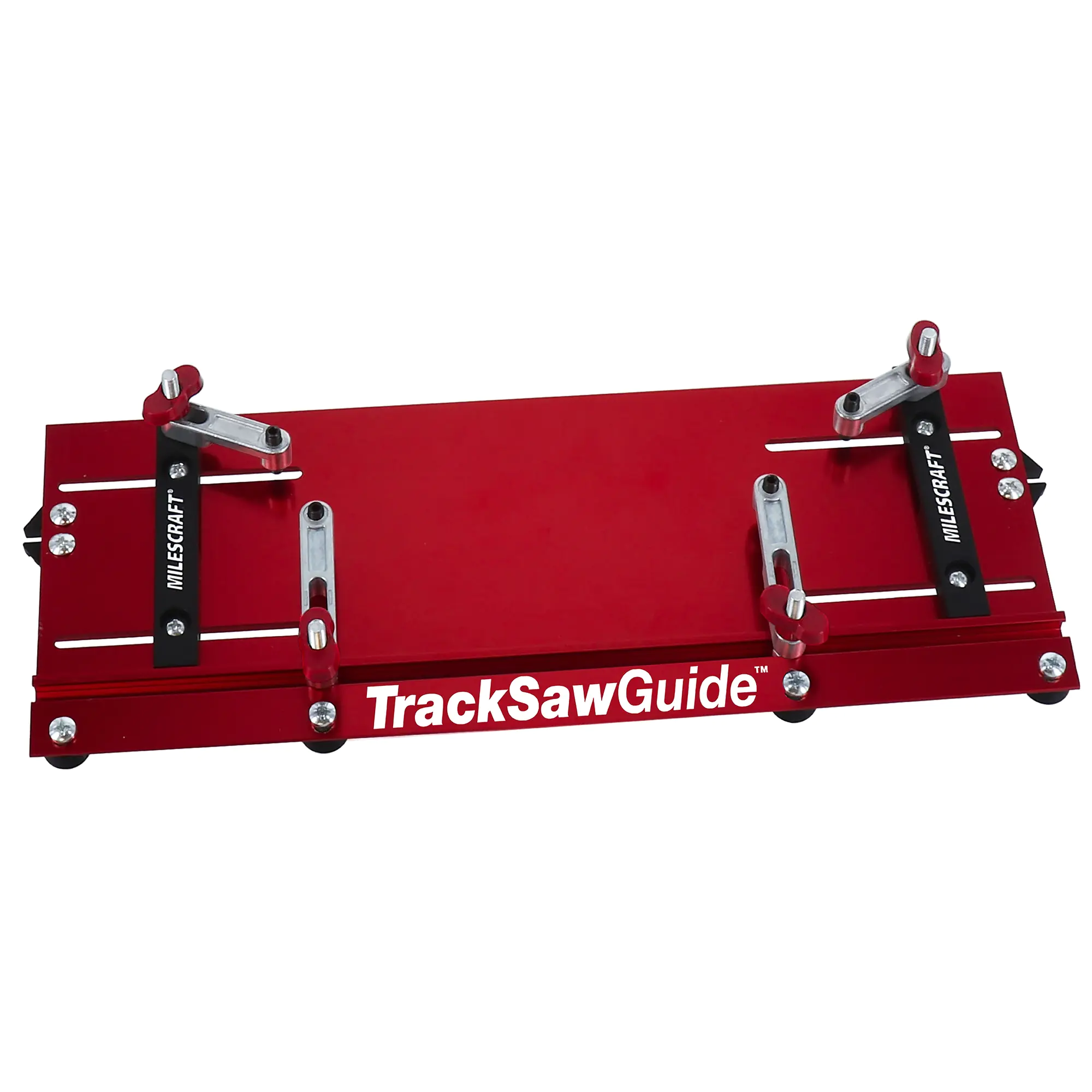

Unstable freehand cuts, which can cost time, money, and nerves, are a thing of the past. The universal base plate fits most circular saws with blades up to 7-1/4" (approximately 184 mm) and makes the system an ideal solution for precise, straight cuts. The sturdy aluminum construction reduces twisting and ensures higher cutting accuracy. The flat profile also allows cuts in materials thicker than 1-3/4" (approximately 45 mm), as it minimizes the loss of the saw’s cutting depth.
With the TrackSawGuide™ guide rail, clean straight cuts are achieved – whether ripping panels up to 50" in length, cross-cutting, or making angled cuts.
Universal Compatibility
Fits most circular saws with blades up to 184 mm (7-1/4") 7-1/4".

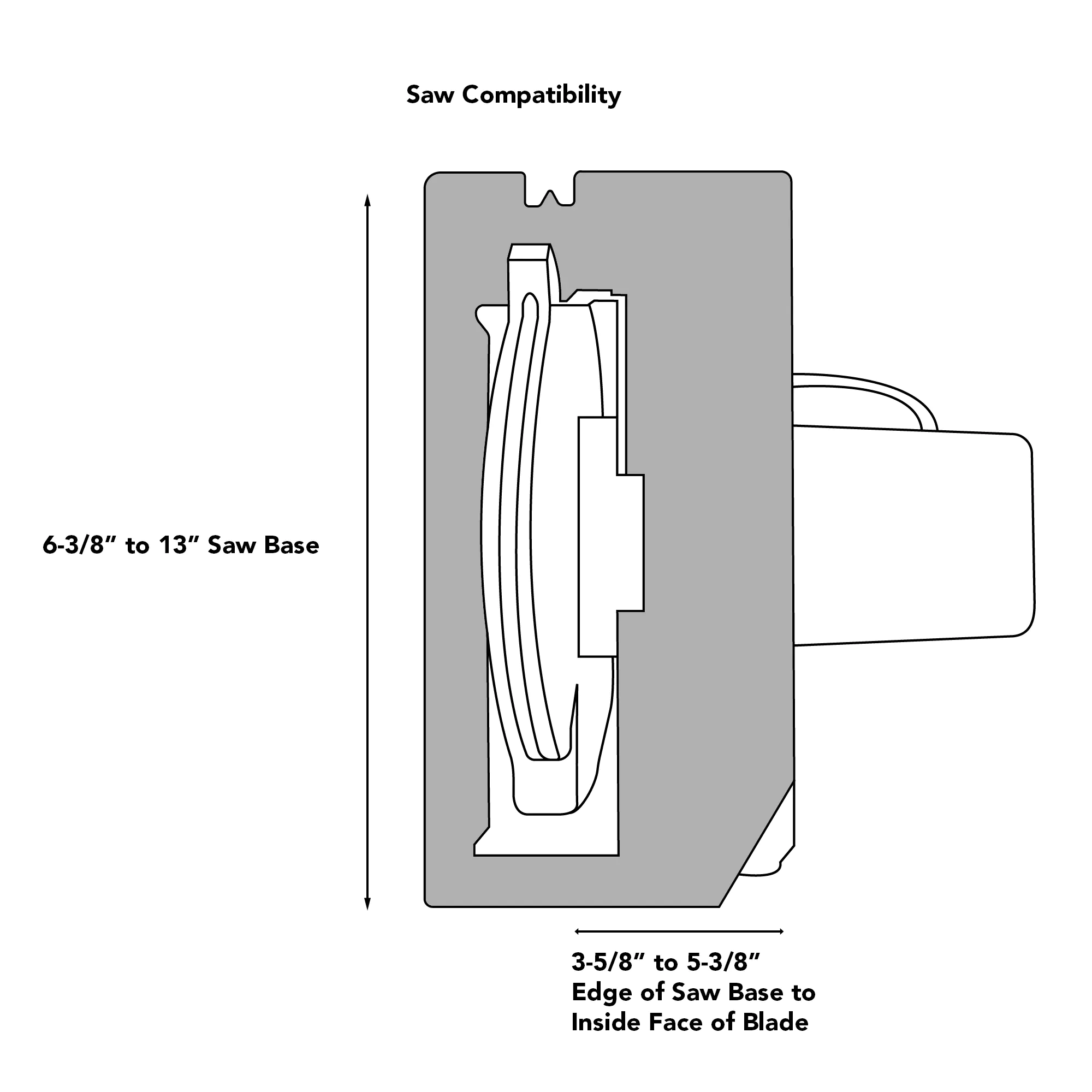

(Not compatible with most worm drive or rear-handle saws. See compatibility image for details.)
- Saw base: 16.2 to 33.0 cm (6-3/8" to 13")
- Distance: 9.2 to 13.7 cm (3-5/8" to 5-3/8") – from the edge of the saw base to the inside of the saw blade
Large Cutting Lengths

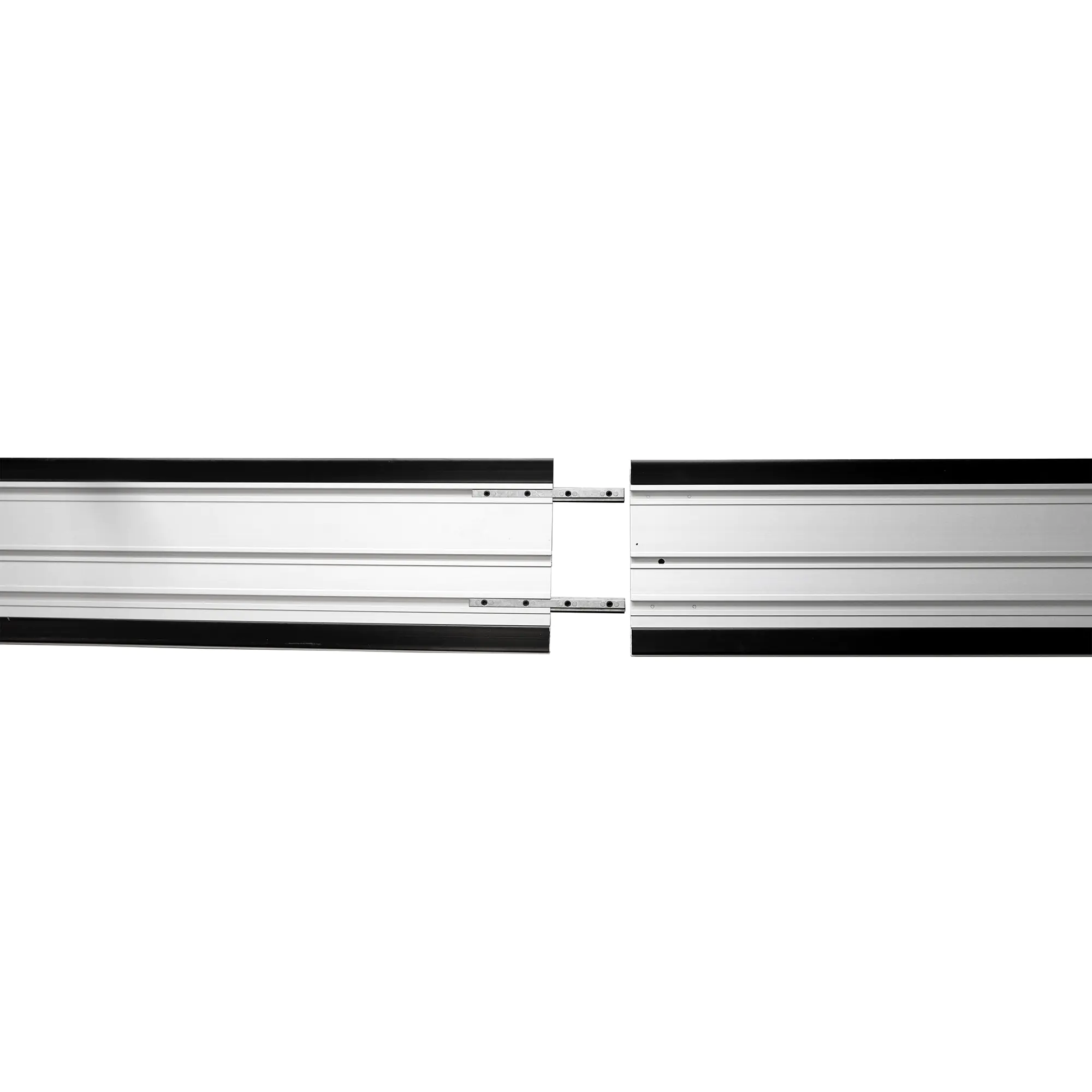

Cutting length up to 50" ready for use, extendable to any length with optional GuideRail™ extensions
Full Metal Construction
High rigidity reduces deformation and improves cutting accuracy
Easy Alignment
The red cut line serves as a guide – the saw blade cuts precisely along this edge
Reduced Tear-Out

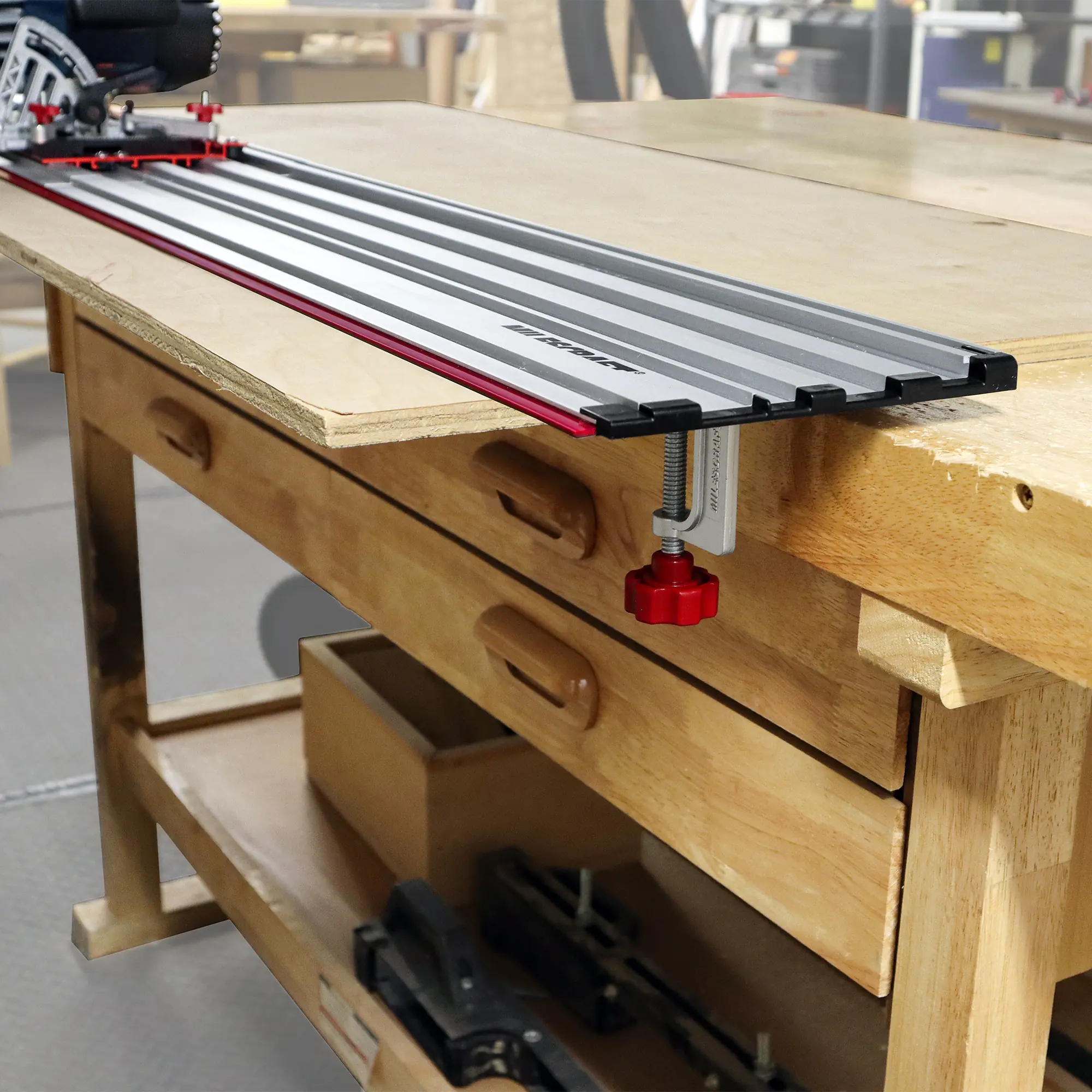

The guide rail reduces tear-out and splintering and minimizes slippage on the workpiece
Deep Cutting Depth

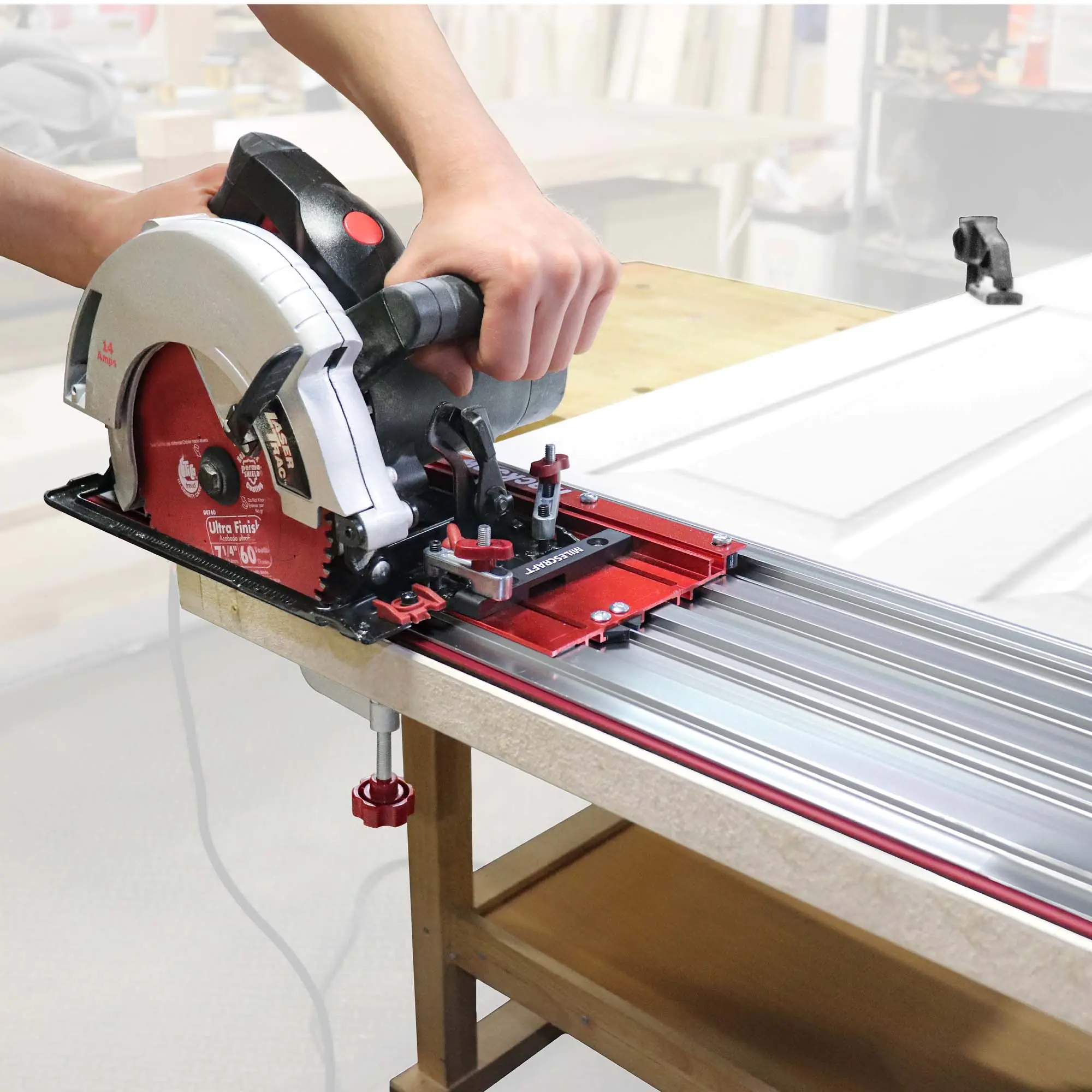

The flat design allows cuts deep enough to completely cut through standard interior doors
| Properties | |
|---|---|

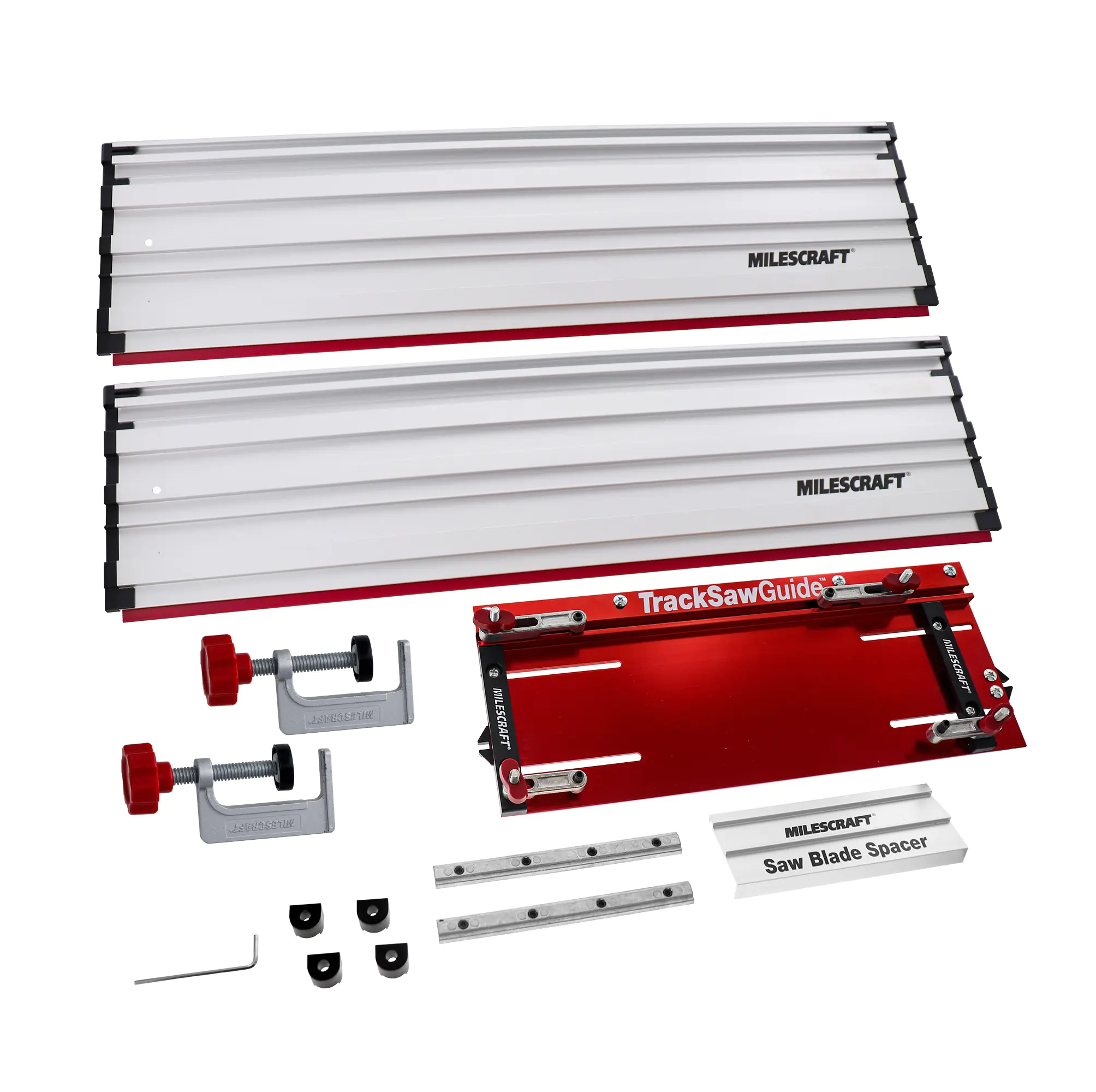

| Includes | Saw Base; Blade Spacer; 2 × 26.5″ Saw Track; 2 x TrackClamps; 4 x Saw Clips |
| Material | Aluminum |
| Cutting Length | 1270 mm / 50″ |
| Cutting Depth | 44,45 mm / 1-3/4″ |
| Compatible With | Left or right-handed circular saws with blades up to 184,15 mm / 7-1/4″ (Non – Worm Drive) |
