Tongue And Groove Assembly with Ball Bearing
TCT D=41mm B=19mm L=70mm E=9.5mm S=8mm KLEIN
€71.90*
Currently not available, no delivery date known
Product number: 362125
Product information
For creating tongue-and-groove joints. The ball bearing has a diameter of 22 mm.
The spacer rings have an outer diameter of 16 mm and an inner diameter of 8 mm.

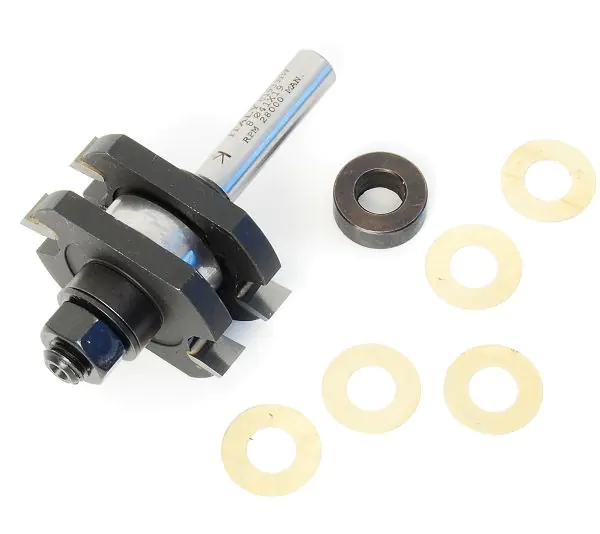

Contents as shown in image 3, the cutter set needs to be reassembled for the two required milling operations.
The tongue-and-groove sets with guiding ring from Sistemi Klein are carbide tipped (HM).
| Properties | |
|---|---|
| Diameter D | 41 mm |
| Total length L | 70 mm |
| Material | HM |

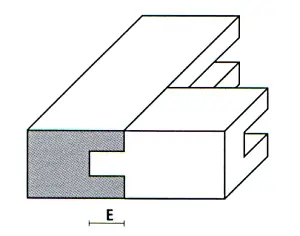

| Groove depth | 9.5 mm |
| Shank diameter S | 8 mm |
| Cutting width of the discs | 6.35 mm |
| Cutting length B | 19 mm |
