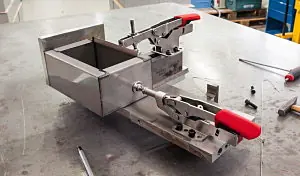

STC-IHH15 Push/Pull Clamp with horizontal Base Plate
BESSEY
€33.90*
Available, delivery time: 2-3 days
Product number: 317615
Product information
The movement of the lever in these push rod clamps is converted into an axial movement of the push rod. The clamping height is automatically adjusted steplessly with nearly constant clamping force without the need to change the position of the pressure screw. The clamping force is adjustable up to 2,500 N depending on the adjustment of the set screw in the joint. The hole pattern of the base plate fits both mm and inch hole series. The handle is made from a two-component plastic.
| Features | |
|---|---|
| Overall Length | 185 mm |
| Manufacturer No. | STC-IHH15 |
| Clamping Range | 25 mm |
