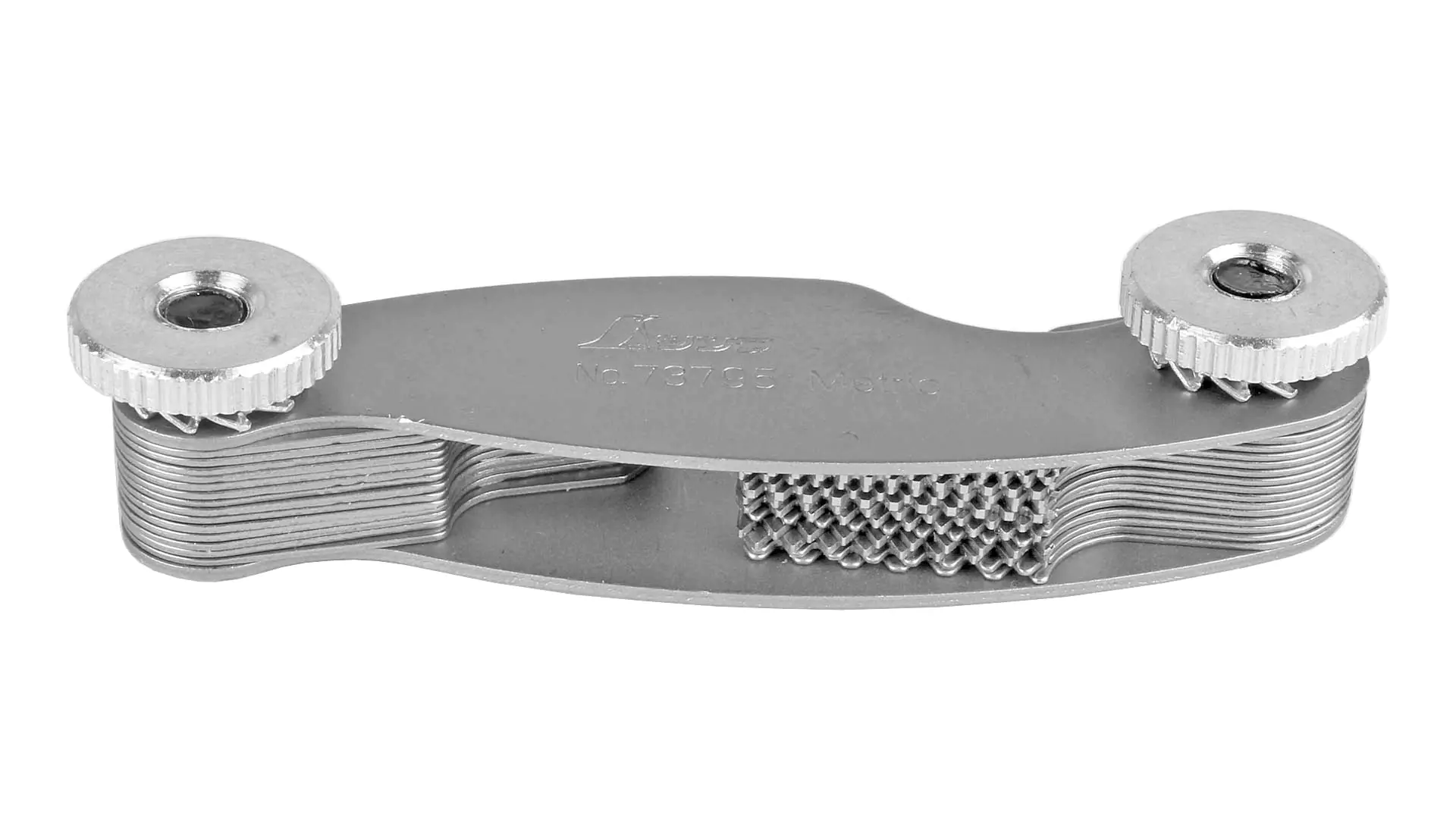

Thread pitch gauge metric with
28 leaves SHINWA
Available, delivery time: 2-3 days
Product information
With this thread gauge, you can easily determine thread sizes. The individual leaves have the pitches stamped on them. You need to know which thread matches a specific pitch.
To make this easier for you, you will find a downloadable table on this page with the thread corresponding to each pitch. In the table with the inch threads, the outer diameter in mm is also provided. This allows you to perform a simple cross-check with a caliper.
with 28 leaves
Pitch measurement range: 0.25 – 2.5 mm
Pitches mm: 0.25-0.30-0.35-0.40-0.45-0.50-0.55-0.60-0.65-0.70-0.75-0.80-0.85-0.90-1.00-1.10-1.20-1.25-1.30-1.40-1.50-1.60-1.70-1.75-1.80-1.90-2.00-2.50
Dimensions 68 × 18 × 14 mm
| Properties | |
|---|---|
| Number of Blades | 28 |
| Dimensions | 68 × 18 × 14 mm |
| Measurement Range of Pitches | 0.25 – 2.5 mm |
| Pitches mm | 1.90, 1.80, 1.75, 1.70, 1.60, 1.50, 1.40, 1.30, 1.25, 1.20, 1.10, 0.25, 1.00, 0.85, 0.80, 0.75, 0.70, 0.65, 0.60, 0.55, 0.50, 0.45, 0.40, 0.35, 0.30, 0.90, 2.50, 2.00 |
