Taper Gauge with Metal Case
1 - 15 mm SHINWA
10% Discount
New
10% Discount
New
€20.16*
€22.40*
You save €2.24!
Available, delivery time: 1-3 days
Product number: 310366
Product information

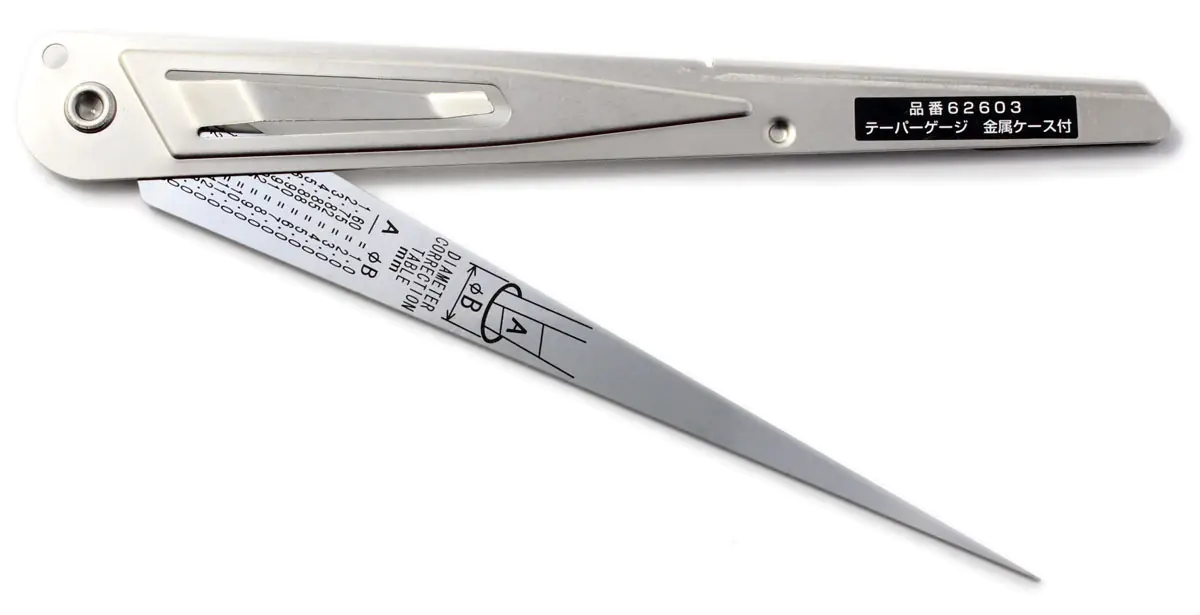

For measuring joints, slots, and the inner diameter of pipes. Made from stainless steel. This measuring wedge is inserted vertically with the narrow 1.2 mm thick side into the gap. Ensure the perpendicularity of the reference edges for an accurate measurement. On the back, there is a correction table (see lower image) to obtain precise results for round inner diameters as well.
With a foldable metal guard and clip to carry the measuring wedge in a breast pocket.
1st Side:
1 mm to 15 mm in 1/10 mm increments
2nd Side:
Correction table for inner pipe measurements
| Features | |
|---|---|
| Thickness | 1.2 mm |
| Overall Length | 148 mm |
| Material | Stainless Steel |
| Measuring Range | 1 mm to 15 mm |
| Scale | in 1/10 mm increments |
