Taper Gauge for Clearance Hole Diameter Length
1 - 15 mm SHINWA
Available, delivery time: 1-3 days
Product information

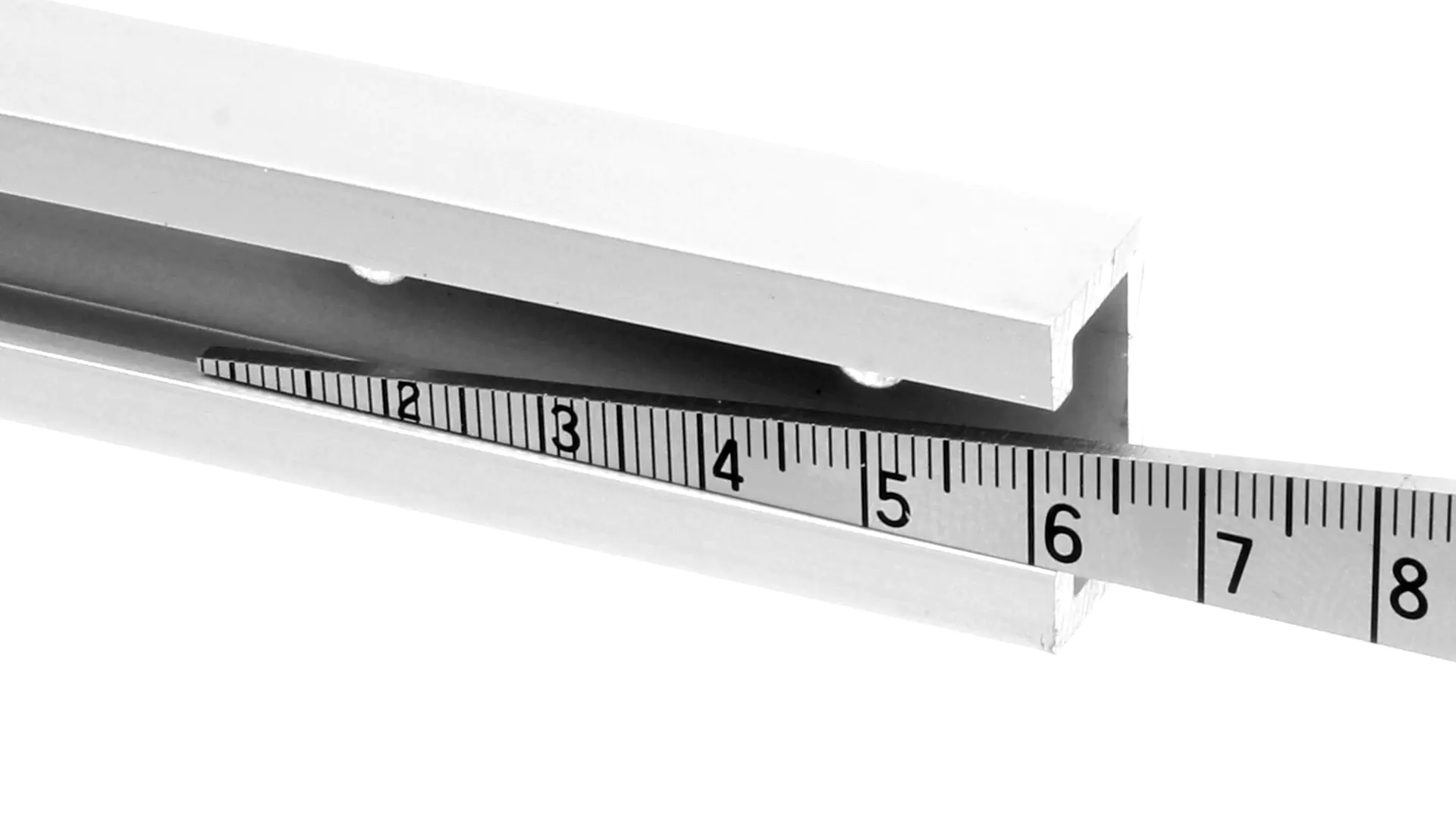

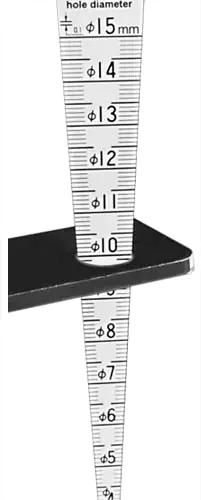

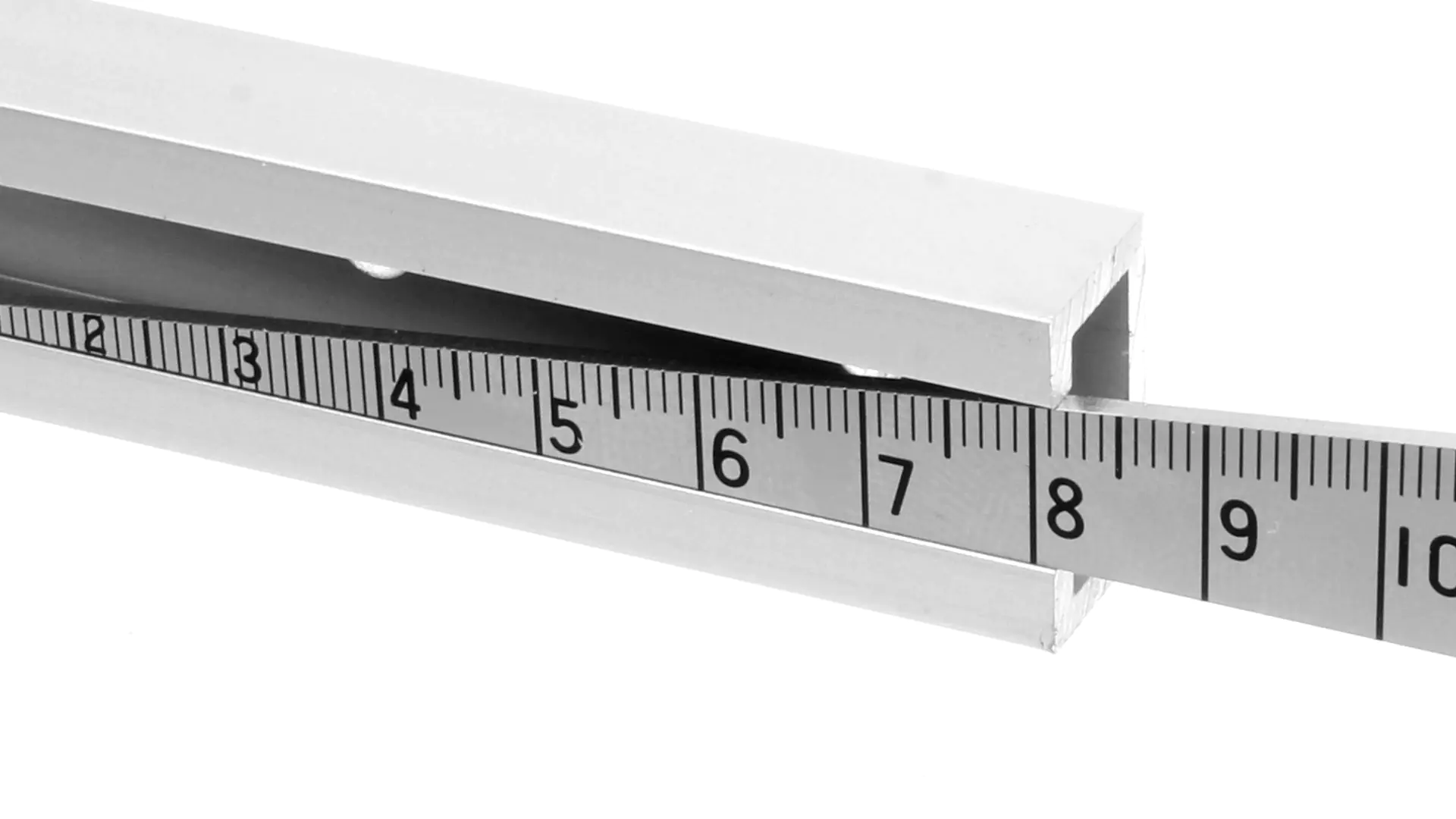

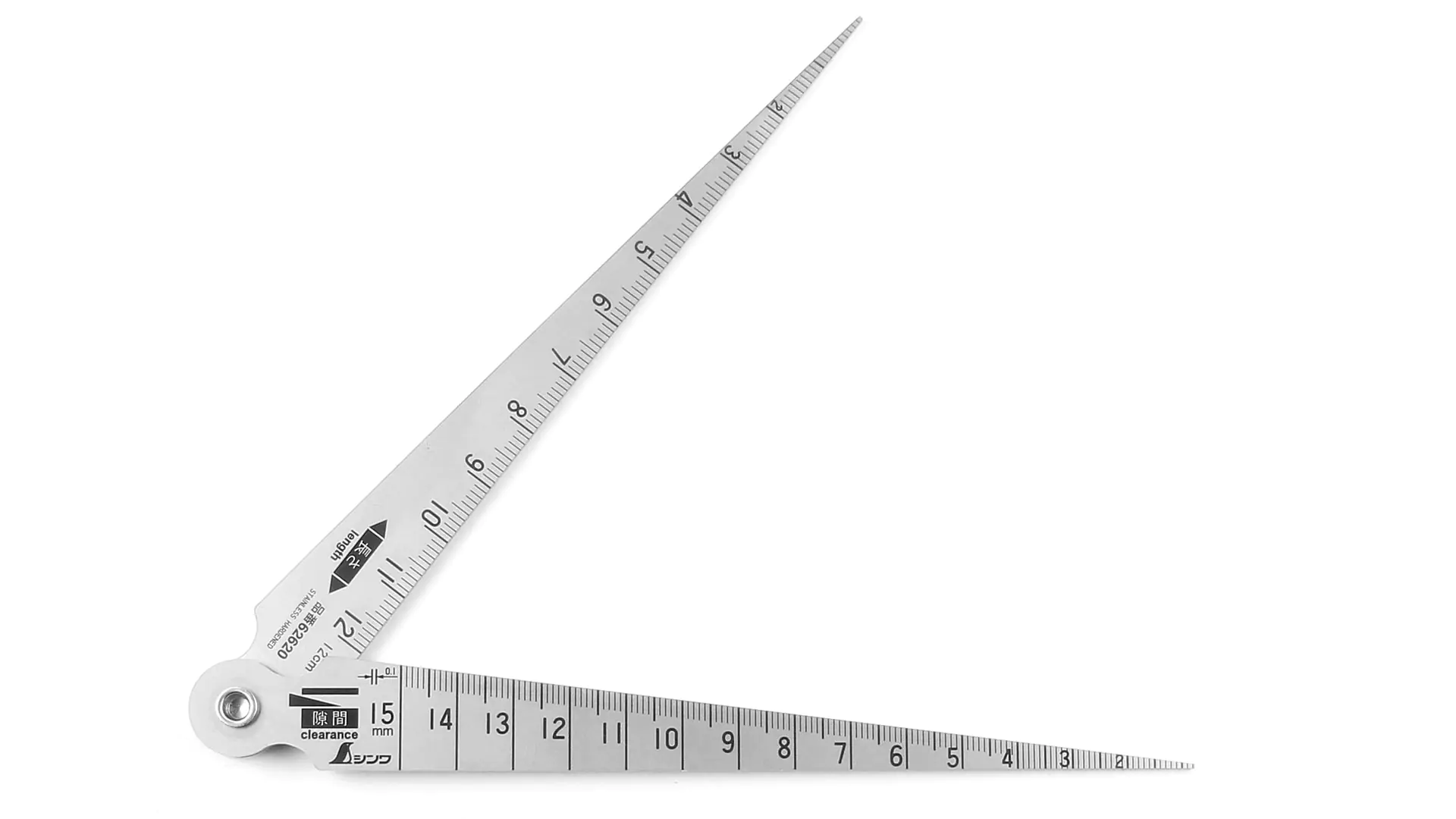

With this two-part feeler gauge from SHINWA, you can measure gap width, hole diameter, and length with a single device. When measuring the gap width, the edge with the scaling arranged at a right angle to it is laid flat on the surface. This scaling is present on both sides, allowing the device to be inserted into the gap from either the right or the left. The gap width just needs to be read off the scale. When measuring the hole diameter, the device is inserted into the hole until the relevant graduation mark touches the edges of the hole on both sides, allowing the hole diameter to be read. The third scale is used for pure length measurement like a regular steel ruler. Made of stainless steel.
Also suitable for determining hole diameters.
| Features | |
|---|---|
| Gap Measurement Accuracy | ±0.05 mm |
| Hole Diameter Accuracy | ±0.05 mm |
| Length Measurement Accuracy | ±0.15 mm |
| Gap Measurement Range | 1 – 15 mm |
| Hole Diameter Measurement Range | 2 – 15 mm |
| Length Measurement Range | 0 – 120 mm |
| Size | 144 × 16.3 × 5.5 mm |
| Weight | 25 g |
