T-marking gauge
100 mm ❘ BLACK-RED Plus ❘ DASQUA
Available, delivery time: 1-3 businessdays within Germany
Product information

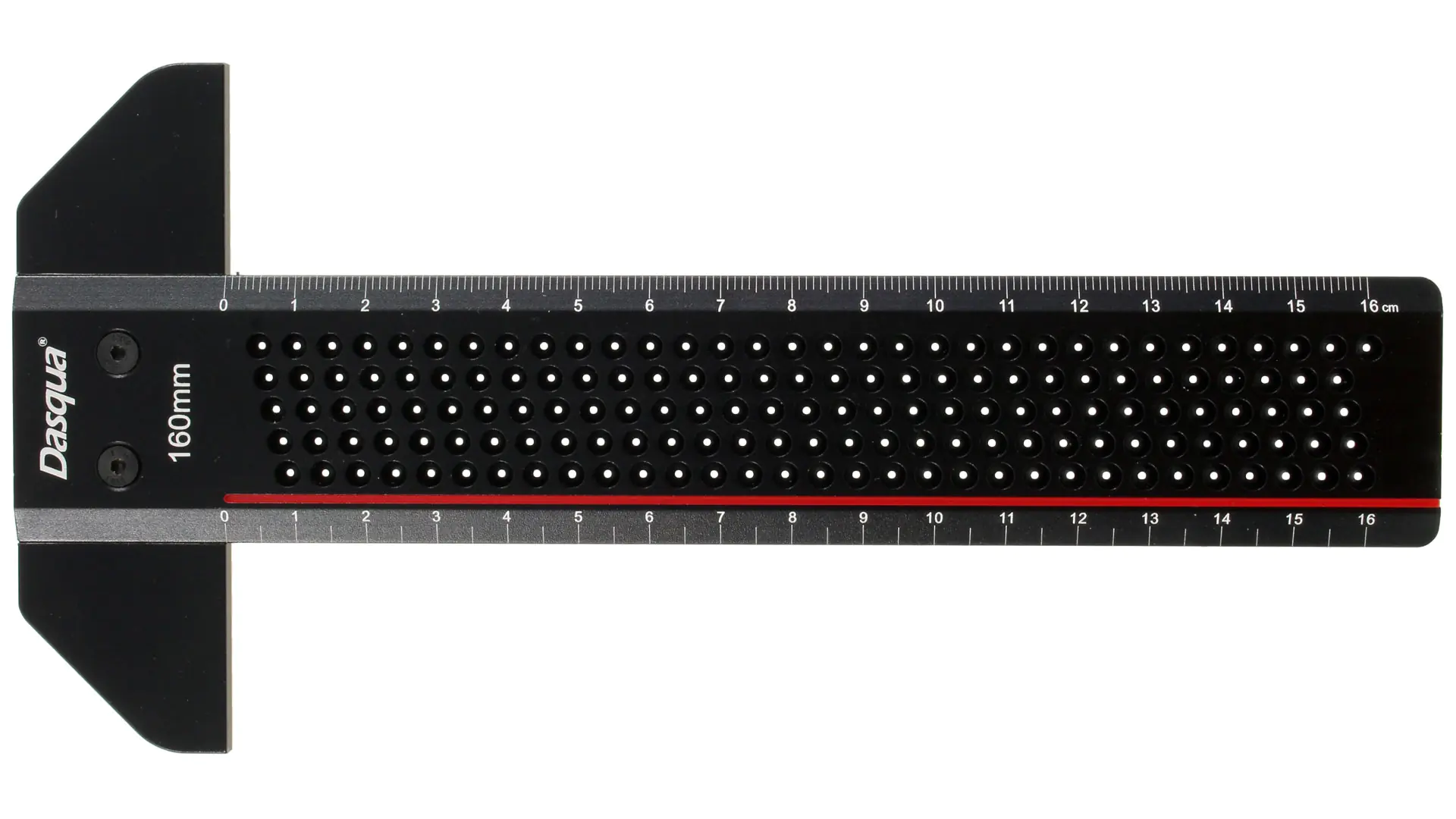

Marking gauge with pronounced stop, hole grid at 1 mm intervals, for drawing lines at distances of 5 – 160 / 260 mm parallel to the edge of a workpiece. Ideal for use with, for example, mechanical pencils with leads of 0.5 to 1.0 mm. Due to the conical design of the holes, it has a self-centering effect, ensuring the marking is exactly where it should be.
Aluminum alloy, CNC machined, black anodized, with laser-engraved scale. The slightly matte surface texture makes the gauge comfortable to grip. Fingerprints do not adhere. The high contrast of the white markings on a black background allows for excellent, glare-free readability. The scale and labeling in white are not simply printed on, but are protected within the recess created by the laser. This allows the tool to be used for many years without any issues.

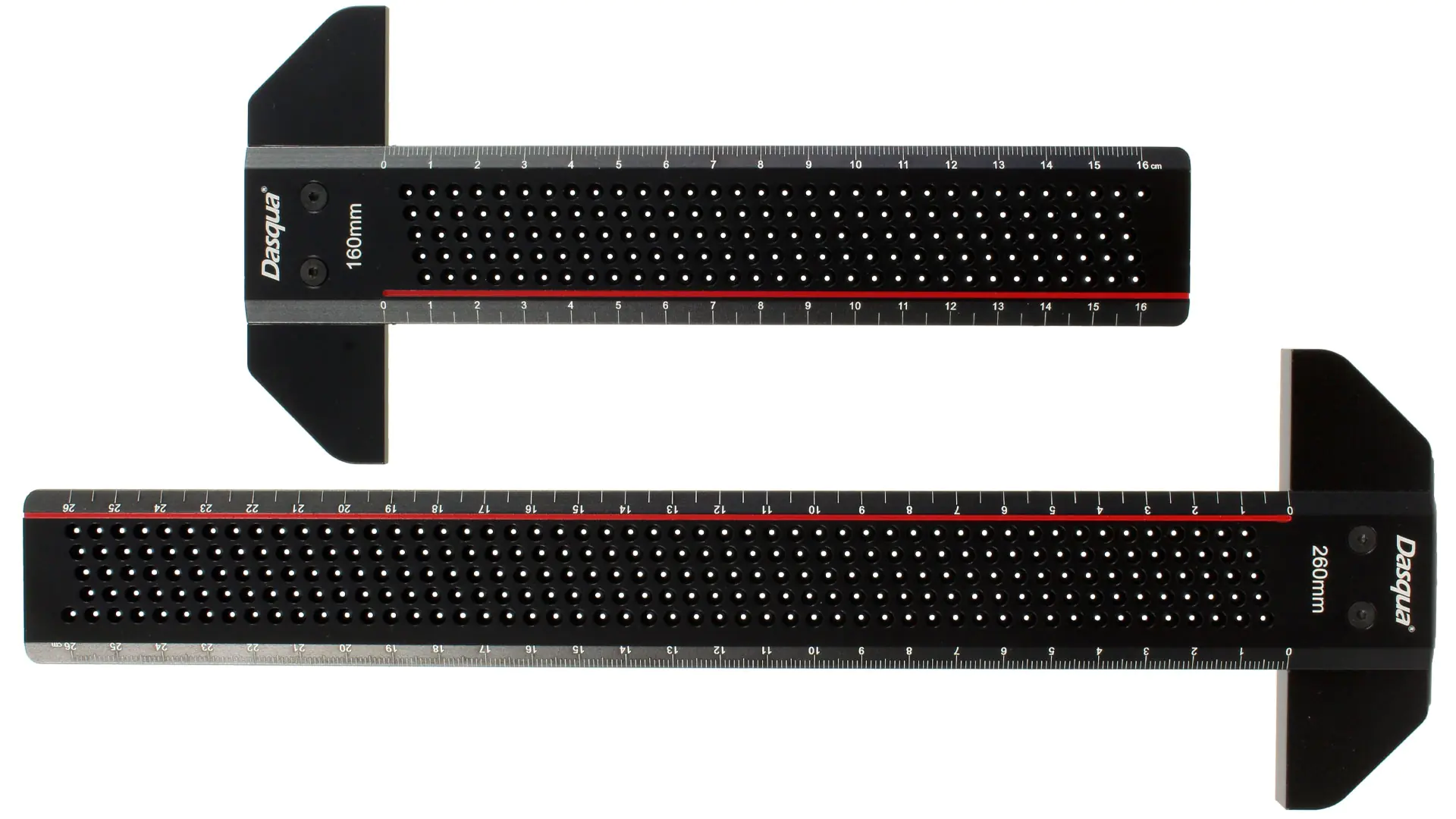

T-shaped design, the tongue features, in addition to the marking holes at fixed 1 mm intervals, two scales up to 160 / 260 mm at 1 and 5 mm intervals respectively. This makes it easy to measure or mark intermediate dimensions, or to use pencils that do not fit into the marking holes. The stop has practical bevels where the thumb and fingers can comfortably rest.
The scale on beveled edges ensures that any parallax errors that may occur when viewed from the side are minimized, or almost completely avoided.
Dimensions:
- Cross-section ruler: 39 × 3 mm (W x H)
- Stop: 98 × 30 × 5/9 mm (L x W x H)
- Overall: 200 × 98 × 5/9 mm, 300 × 98 × 5/9 mm
