T-Track Elbow Bracket
VERITAS
Available, delivery time: 2-3 days
Product information

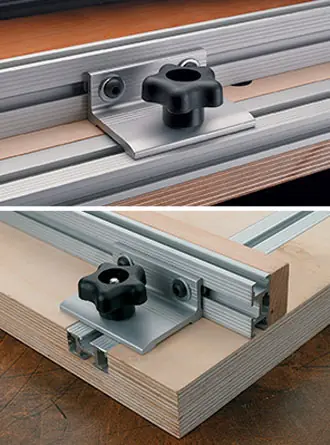

With the help of these aluminum angle brackets, you can, for example, attach a four-way T-track from Veritas to a T-track mounted flush on the surface and thus build a quickly and easily mountable stop. You can use the angle brackets wherever you want to attach T-tracks at right angles to each other. A screw with a star knob, which holds one sliding nut, allows you to quickly adjust one T-track. The second T-track is held firmly with the help of two sliding nuts and matching screws. The angle bracket is 76 mm (3 inches) long, 54 mm (2-1/8 inches) wide, and 28.5 mm (1-1/8 inches) high. It is designed to hold an upright four-way T-track almost flush with the work surface.
| Properties | |
|---|---|
| Width | 54 mm |
| Height | 28.5 mm |
| Length | 76 mm |
| Material | Aluminum |
