T-Slot Cutters

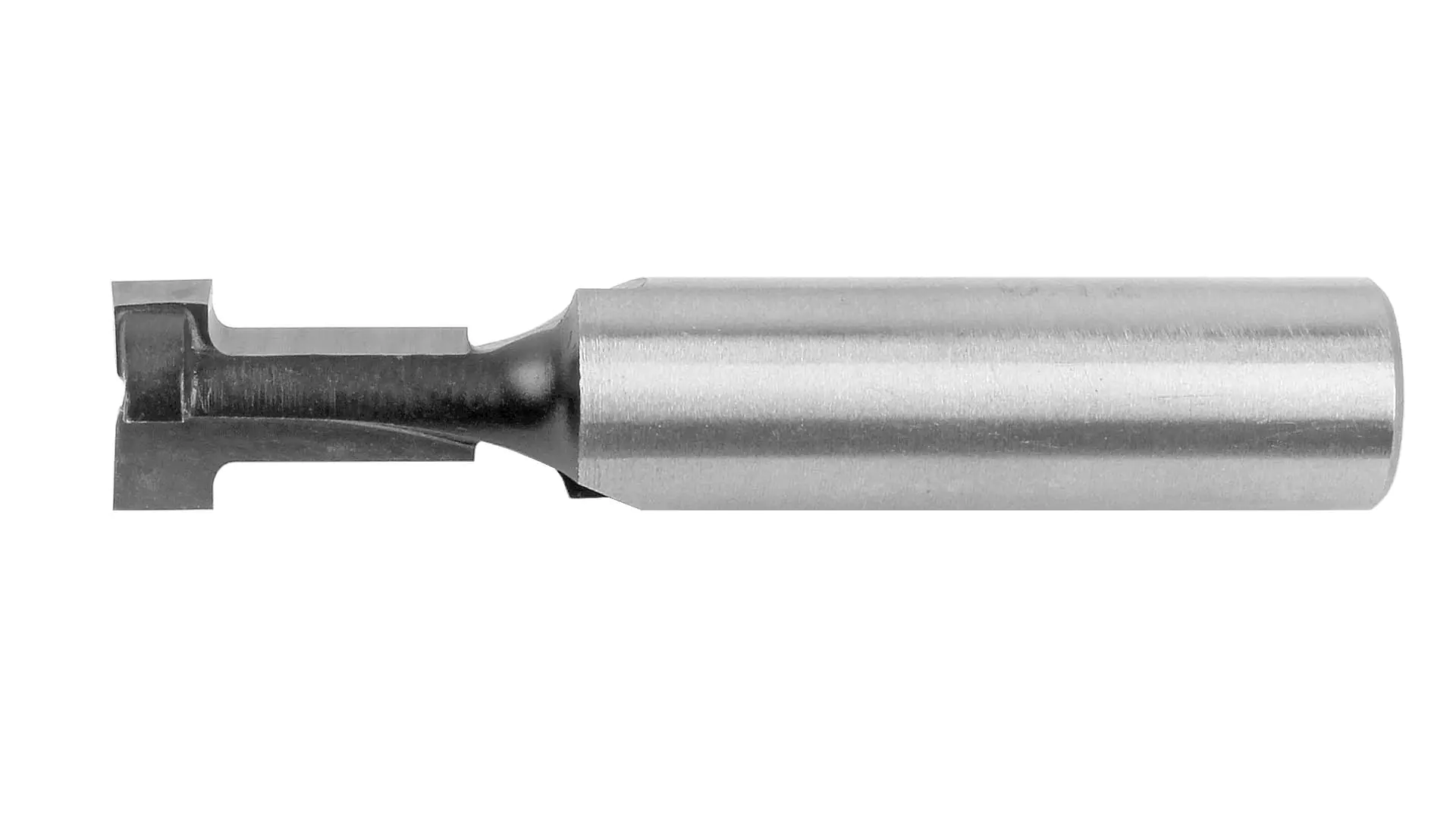

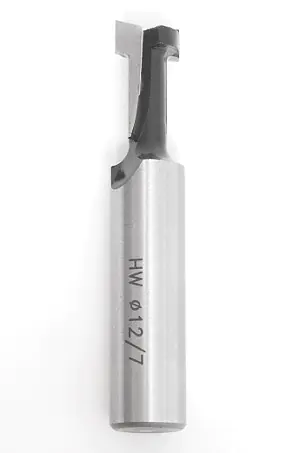

TCT D1=12mm D2=7mm B1=5mm B2=18mm L=65mm S=12mm KLEIN
€142.90*
Available, delivery time: 2-3 days
Product number: 361390
Product information

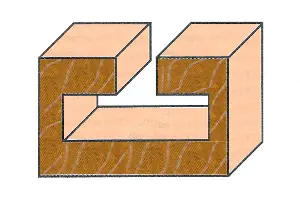

For creating T-slots. Suitable for all woods and wood-based materials.
The T-slot cutters from Sistemi Klein are carbide-tipped (HM).
The blades of cutter No. 361390 are designed so that screws with 1/4 inch coarse thread and hex head can be guided in the groove produced with it. This means that when using hold-down clamps, knobs, and angles, for example from Incra, you are not solely reliant on their tracks, but can use these stops directly in board material.
Additionally, you can use 6 mm screws, but not with the hex head (it is too small) in the guide slot, instead with a square nut, which fits precisely into the T-slot.

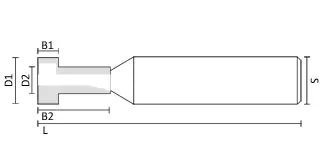

| Properties | |
|---|---|
| Diameter D1 | 12 mm |
| Diameter D2 | 7 mm |
| Total Length L | 65 mm |
| Material | HM |
| Shank Diameter S | 12 mm |
| Cutting Length B1 | 5 mm |
| Cutting Length B2 | 18 mm |
