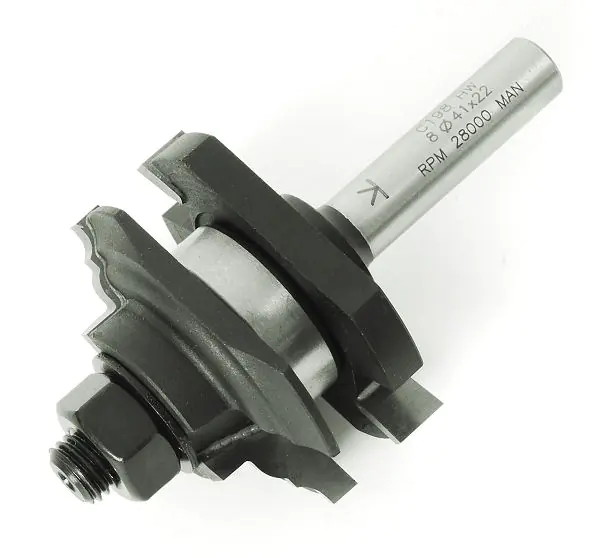

Stile And Rail Assembly (5) with Ball Bearing
TCT D=41mm B=22mm L=70mm S=8mm KLEIN
Available, delivery time: 2-3 days
Product information
For creating profile and counter-profile with the same set. The ball bearing has a diameter of 22 mm. The spacer rings have an outer diameter of 16 mm and an inner diameter of 8 mm and are used to fine-tune the fit. The counter-profile cutters from Sistemi Klein are carbide-tipped (HM).

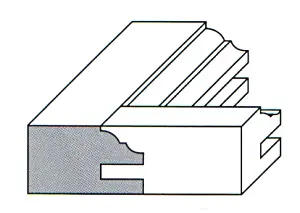

Even if you see two sketches per item: It is always just one cutter, whose discs need to be reassembled for the respective counter-profile. If you want to mill without reassembly, you need two cutters of the same kind (and even better, 2 routers!).
| Supplied Spacer Rings Size and Quantity | |
|---|---|
| 0.05 mm | 1 piece |
| 0.1 mm | 2 pieces |
Diameter D = 41 mm
Cutting Length B = 22 mm
Total Length L = 70 mm
Cutting Width of Groove Disc 6 mm
Shank S = 8 mm
Material HM
