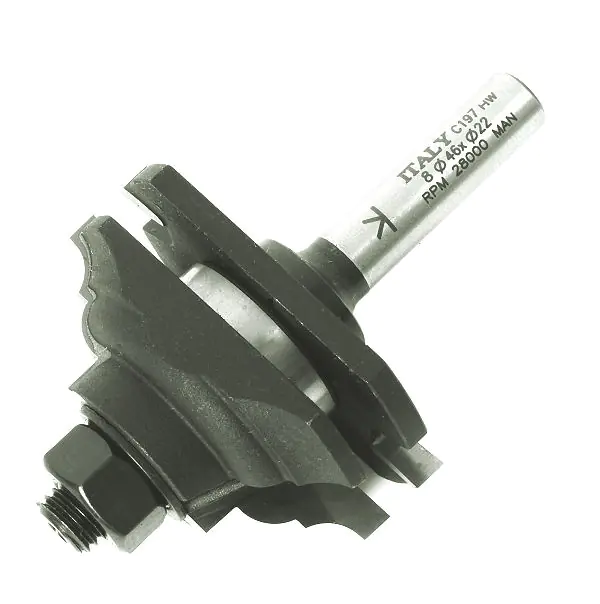

Stile And Rail Assembly (4) with Ball Bearing
TCT D=46mm B=22mm L=70mm S=8mm KLEIN
Available, delivery time: 2-3 days
Product information
For creating profile and counter-profile with the same set. The ball bearing has a diameter of 22 mm. The spacer rings have an outer diameter of 16 mm and an inner diameter of 8 mm and are used to finely adjust the fit. The counter-profile cutters from Sistemi Klein are carbide-tipped (HM).

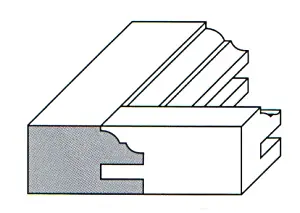

Even though you see two sketches per item: it is only one cutter, whose discs need to be reassembled for the respective counter-profile. If you want to mill without reassembling, you need two cutters of the same type (and even better, 2 routers!)
| Supplied Spacer Rings Size and Quantity | |
|---|---|
| 0.05 mm | 1 piece |
| 0.1 mm | 1 piece |
| 1 mm | 1 piece |
Diameter D = 46 mm
Cutting Length B = 22 mm
Total Length L = 70 mm
Cutting Width of the Slot Disc 4 mm
Shank S = 8 mm
Material HM
