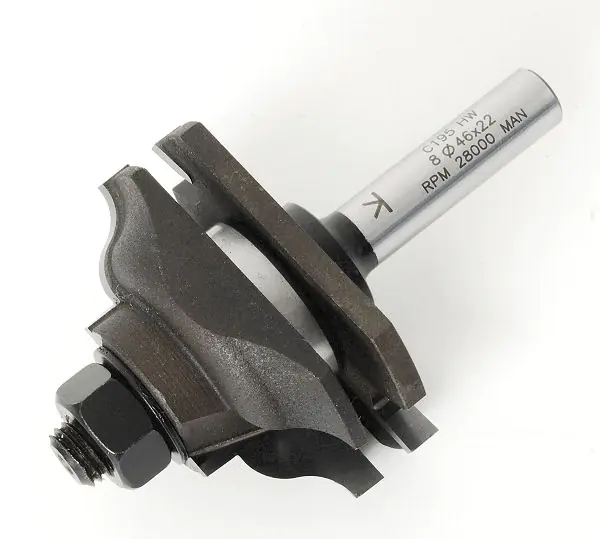

Stile And Rail Assembly (2) with Ball Bearing
TCT D=46mm B=22mm L=70mm S=8mm KLEIN
Available, delivery time: 2-3 days
Product information
For creating profile and counter profile with the same set. The ball bearing has a diameter of 22 mm. The spacer rings have an outer diameter of 16 mm and an inner diameter of 8 mm and are used to finely adjust the fit. The counter profile cutters from Sistemi Klein are carbide-tipped (HM).

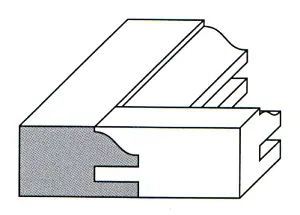

Even if you see two sketches per item: each is only one cutter, whose discs need to be reassembled for the respective counter profile. If you want to mill without rebuilding, you need two cutters of the same type (and even better, 2 routers!)
Diameter D = 46 mm
Cutting length B = 22 mm
Cutting width of the groove disc 4 mm
Total length L = 70 mm
Shank S = 8 mm
Material HM
| Supplied Spacer Rings Size and Quantity | |
|---|---|
| 0.05 mm | 1 piece |
| 0.1 mm | 1 piece |
| 1 mm | 1 piece |
| Properties | |
|---|---|
| Diameter D | 46 mm |
| Total Length L | 70 mm |
| Material | HM |
| Included Spacer Rings Size and Quantity | 1 piece |
| Shank S | 8 mm |
| Cutting Width of the Groove Disc | 4 mm |
| Cutting Length B | 22 mm |
