Small Circle Cutter no.
5010A High Speed Steel STAR-M
Available, delivery time: 2-3 days
Product information
This circle cutter has two advantages:
- You don’t have to adjust the blades individually. Simply loosen the two star knobs and use the knurled screws to easily rotate the two blade holders to the desired position. These blade holders run on a thread. In this way, the desired hole width is adjusted much more easily and quickly than with conventional circle cutters. After setting the desired measurement, simply retighten the two star knobs. The two blade holders may wobble a bit even after tightening the star knobs, but this does not affect the accuracy. The play in the thread is necessary to prevent the risk of breakage.
- It is the most handy circle cutter we offer. Due to its small size, it is much easier to handle than larger models. If you don’t need to drill larger circles than 75 mm, this circle cutter is the best solution. It is perfect for switch boxes with their 68 mm diameter measurement. The compact form allows for a higher speed of the drill.

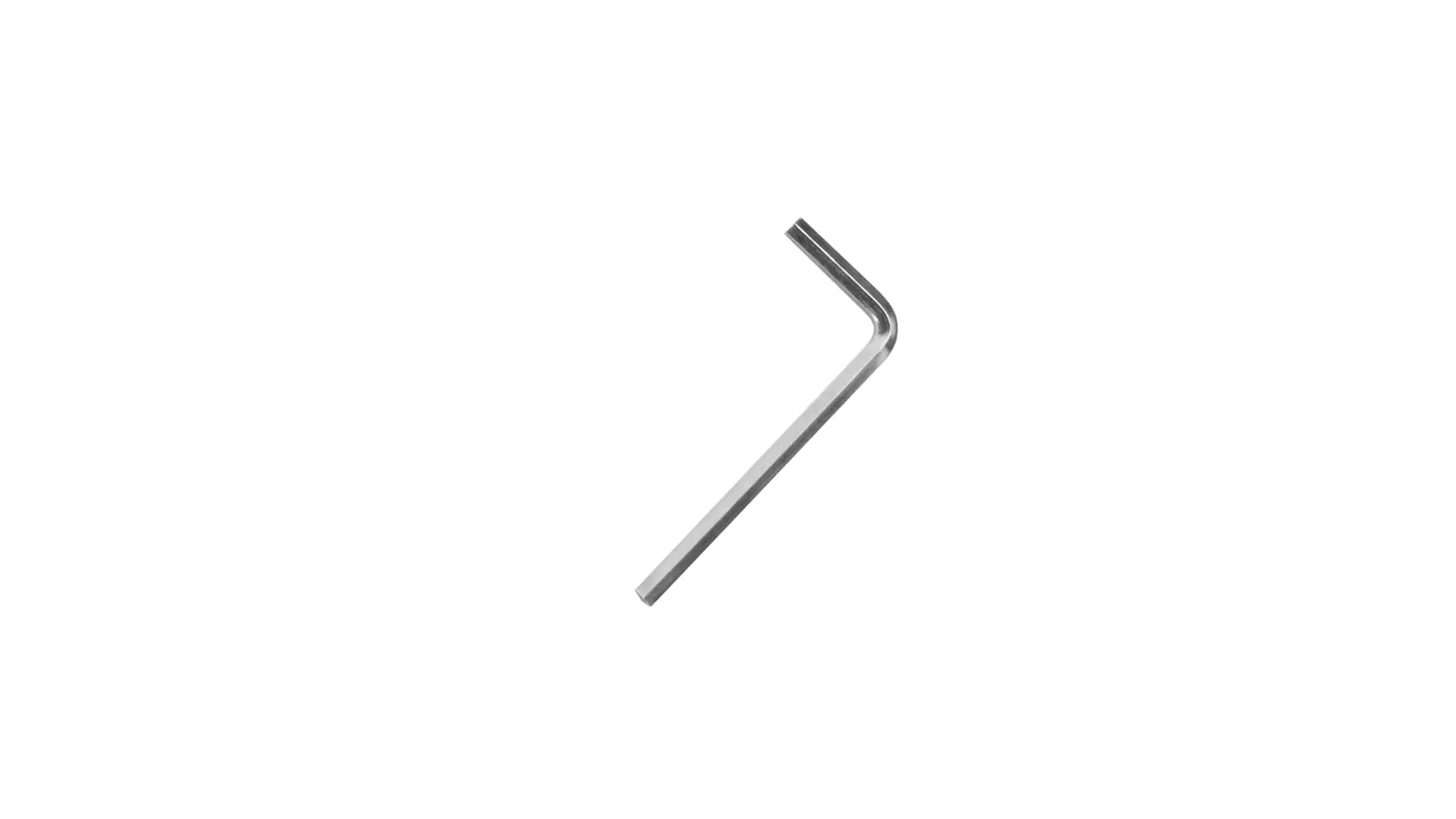

Precise circles up to a diameter of 75 mm in wood, wood-based materials, chipboard, and drywall are possible. Thanks to the outer and inner cut, the edges are free of tear-out and clean. A suitable hex key is included.
For drilling from 2 sides: 56 mm
Revolutions: max. 1500 min-1
Recommendation: Start significantly lower and gradually increase the speed. This way, you can find the ideal speed for your material.
| Features | |
|---|---|
| When drilling from 2 sides | 56 mm |
| Drilling diameter | infinitely adjustable 25 – 75 mm |
| Weight | 440 g |
| Maximum drilling depth | from one side 28 mm |
| Shaft thickness | 10 mm |
| Revolutions | max 1500 min-1 |
