Shear Pliers with Wire Cutter and Screw Removal Function PZ-75
ENGINEER
Available, delivery time: 1-3 businessdays within Germany
Product information

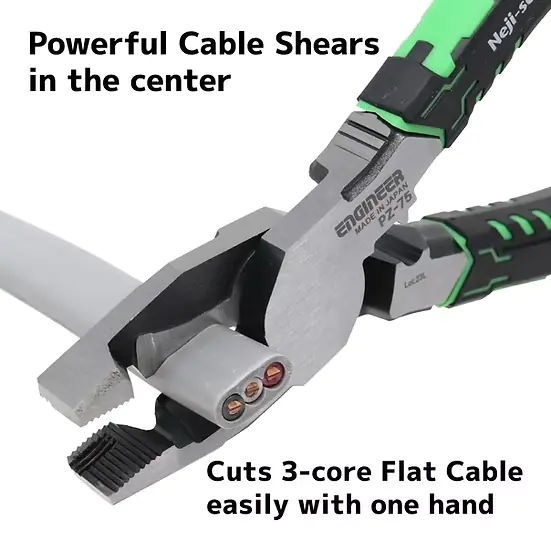

This multifunctional combination pliers are an excellent choice for cable work, among other things. The particularly clean cut is achieved through the shearing effect of the two very sharp blades, ensuring the cable is not just simply "squashed."

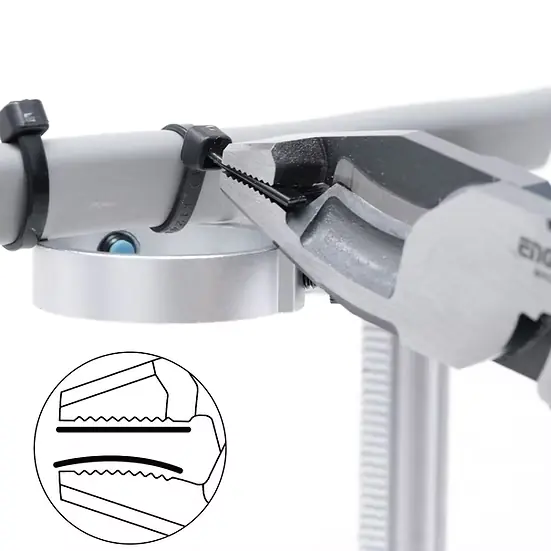

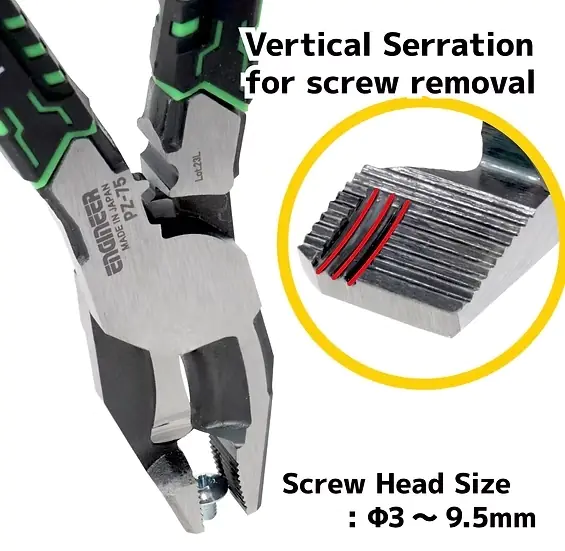

In addition to the usual serration parallel to the head end, the gripping jaws, one of which is convexly shaped, have an additional serration perpendicular to it, allowing for the loosening of tight screws. This is positioned off-center, so cable ties can be gripped alongside. The functional range is completed with a strong wire cutter and crimping capability.

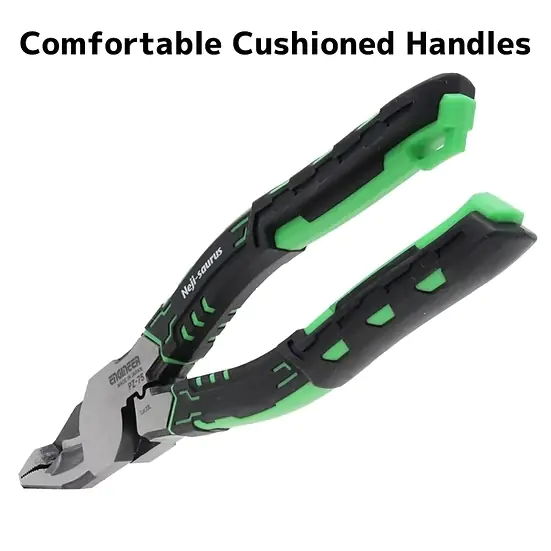

The handle made of thermoplastic rubber is pleasantly soft and fits very well in the hand, reducing the tendency to fatigue prematurely.
Manufactured by ENGINEER in Japan.

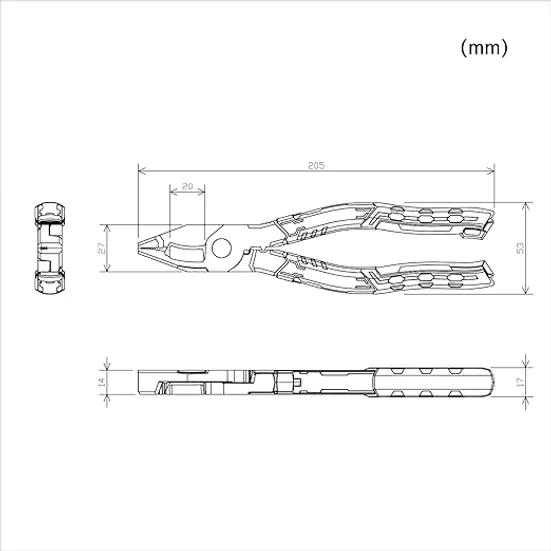

| Features | |
|---|---|
| Overall Length | 205 mm |
| Closed Width | 53 mm |
| Head Width | 14 mm |
| Tip Width | 13 mm |
| Tip Height | 6 mm |
| Cutting Length | 20 mm |
| Handle Width | 17 mm |

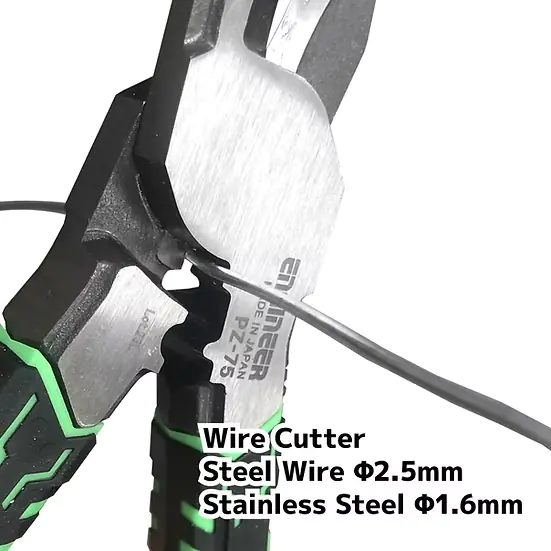

| Cutting Capacity | Copper wire cutting blade/VVF (2.6 mm × 3C), stranded wire (22 mm²), wire cutting blade/steel wire (φ 2.5 mm), stainless steel wire (φ 1.6 mm) |
| Crimp Range: 1.25–3.5 mm² | |
| Screw Head Size | 3 – 9.5 mm |
| Pliers Head Hardened to | HRC60±2 |
| Weight | 297 g |
| Material | Body/Carbon Steel, Handle/TPR |
