Set: Slide Nut with thread
M8 - Socket Head Screw M8x10 - Socket Head Screw M8x20
Available, delivery time: 2-3 days
Product information
With this fastening set, toggle clamps can be easily and inexpensively mounted on Incra T-slot rails.

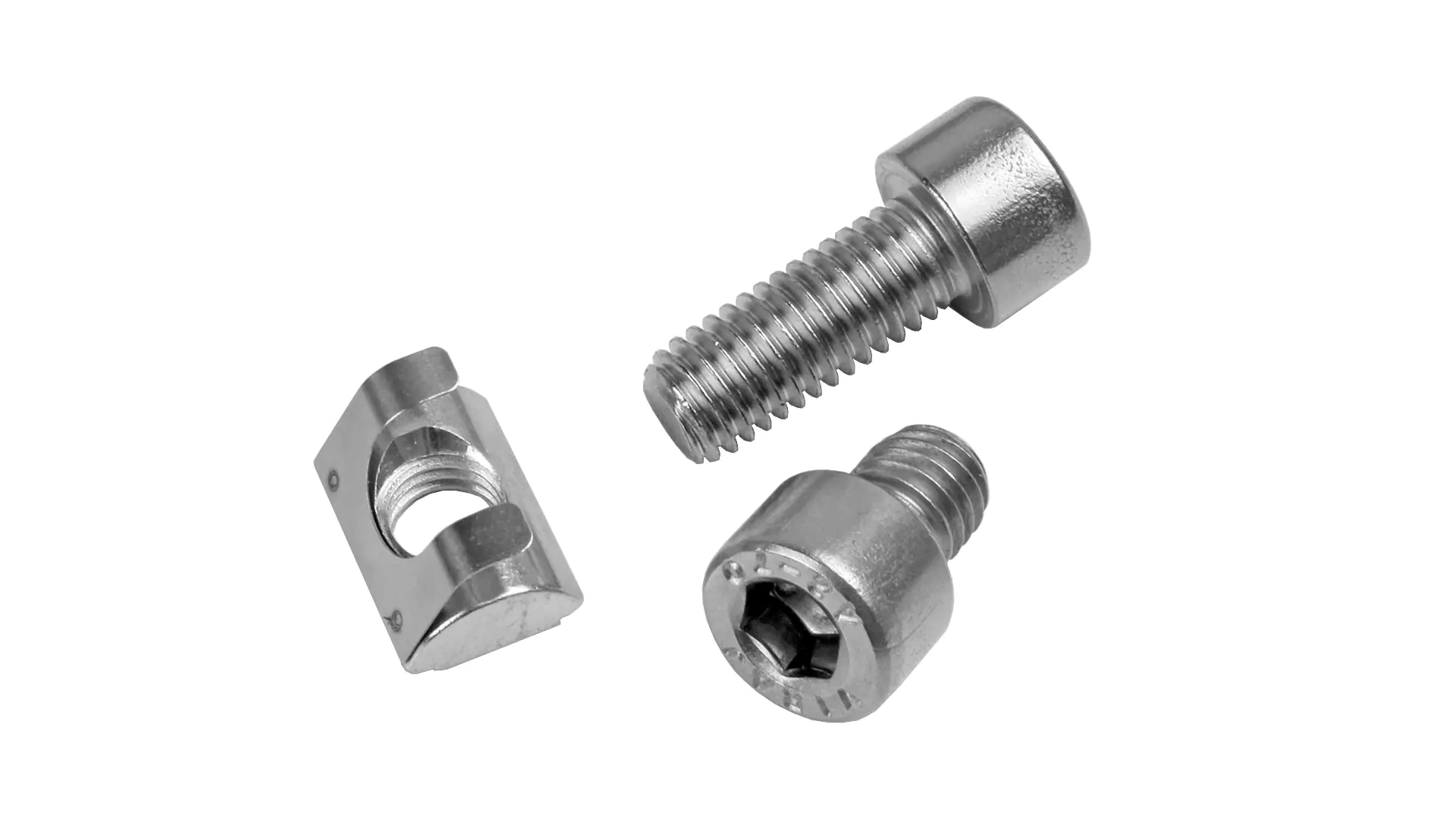

- 1 x Sliding nut M8
- 1 x Cylinder screw M8 × 10 mm
- 1 x Cylinder screw M8 × 20 mm

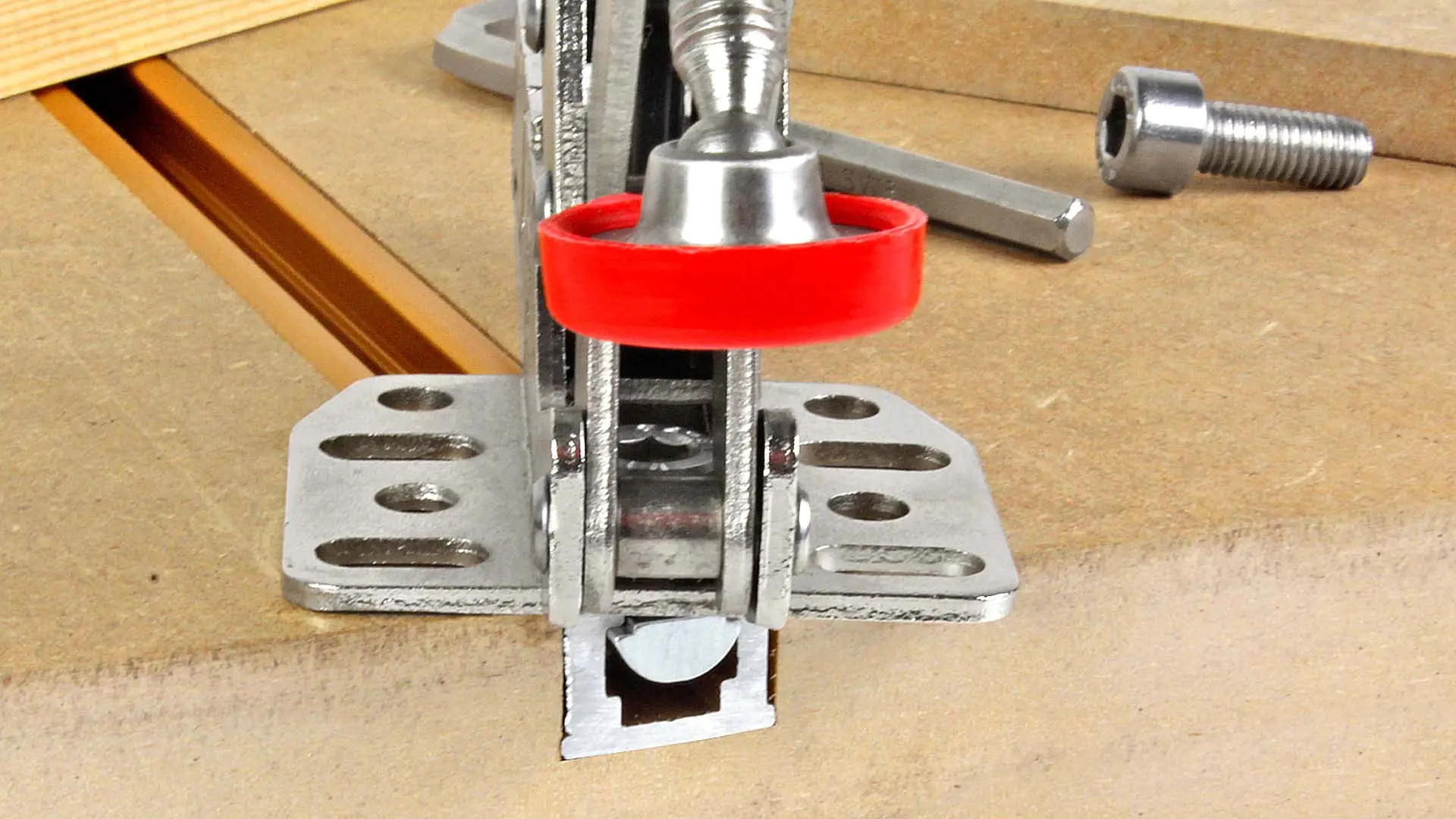

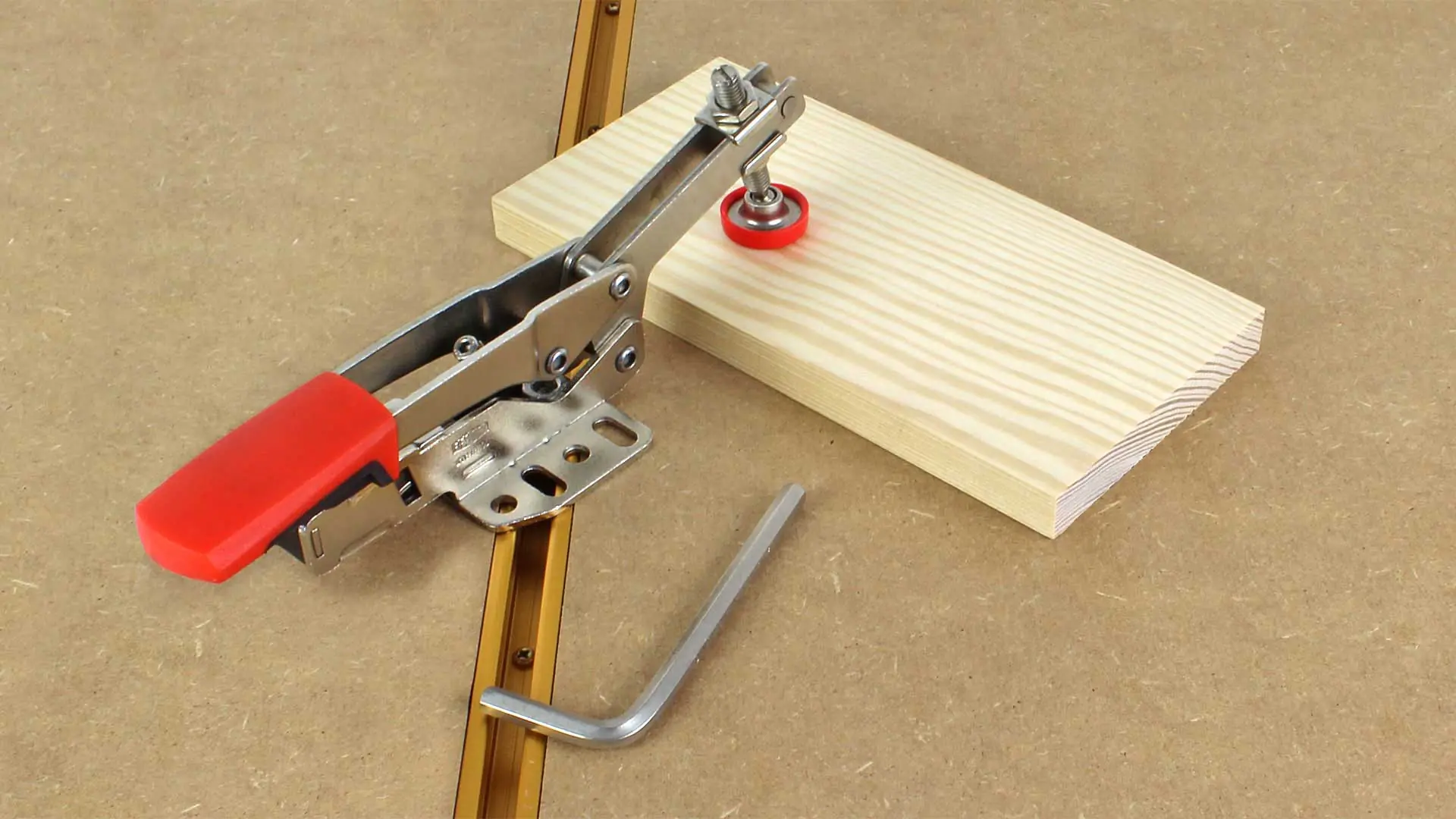

The newer models of Bessey toggle clamps have a hole in the middle intended for mounting on multifunction tables. The same mounting option can also be used for Incra T-slot rails. For this, you need a sliding nut and a 10 mm long cylinder screw.

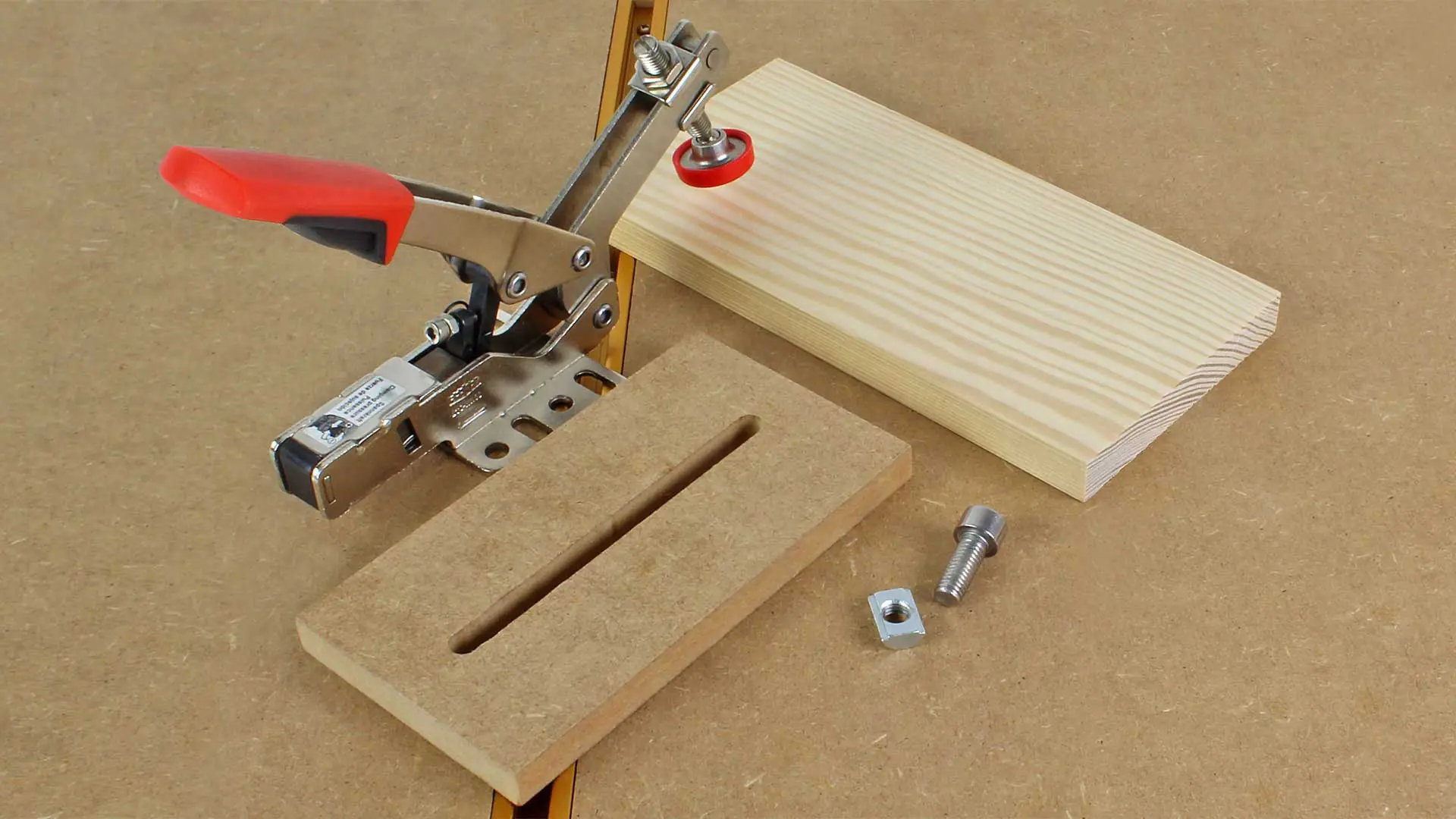

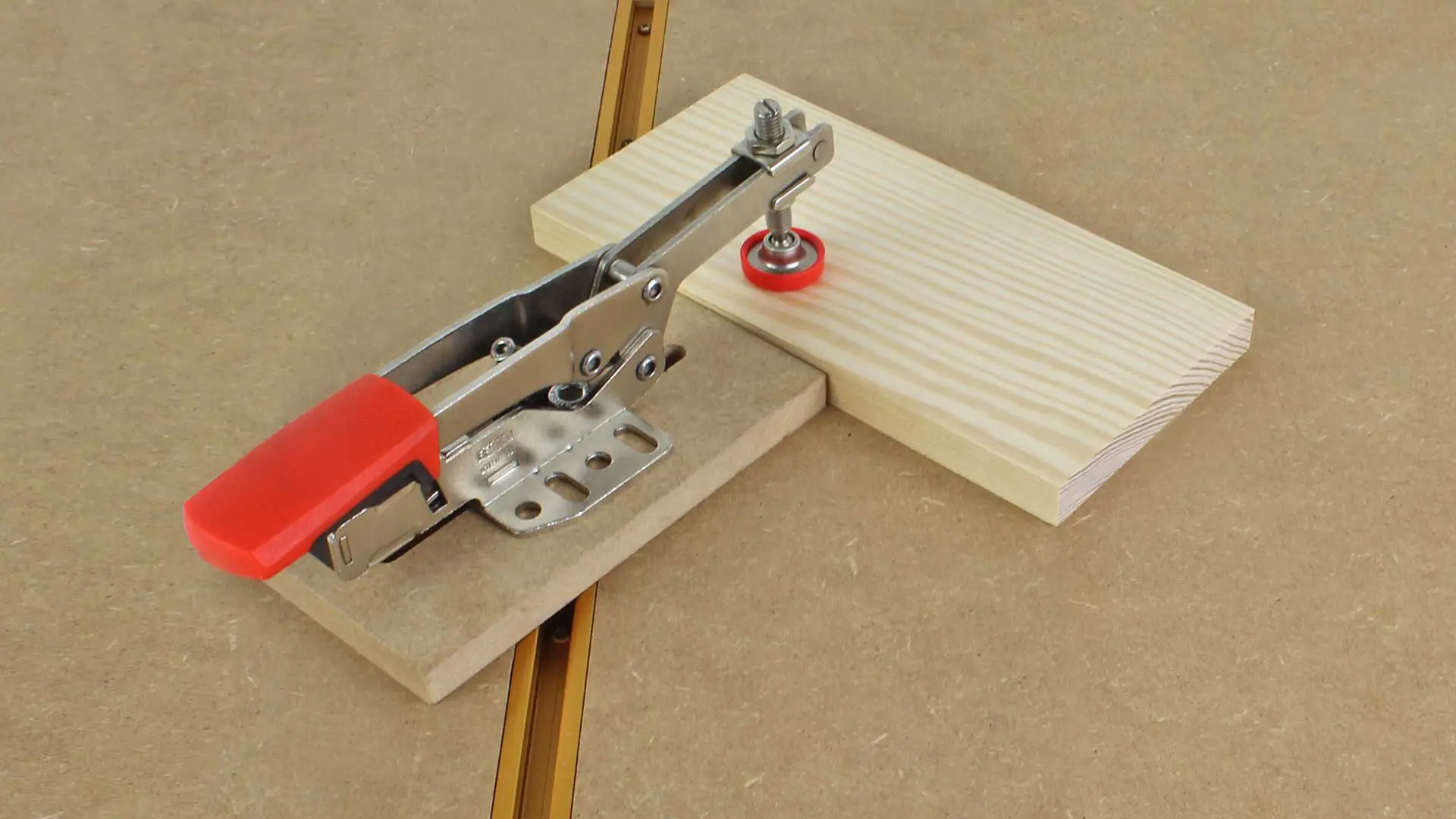

The usage possibilities become even more versatile when using a small 10 mm thick board, e.g., 150 × 80 mm in size with a slot. This allows the clamping height to be extended and, above all, the board can be used as a stop for repetitive clamping. The 20 mm long cylinder screw is supplied for this purpose.
Tip: Since the holes at the base of the Incra T-slot rails have not been countersunk, it is recommended to fasten the T-slot rail in the slot of the plate with panhead screws with a diameter of 3 mm. Their heads protrude by 2 mm. To prevent the sliding nut from catching on each screw head, it is advisable to remove the spring from the sliding nut with flat-nose pliers. A better, but more elaborate solution is to countersink the holes. When screws are countersunk, you can leave the springs in place. The countersink must be sufficiently narrow to reach the base of the T-slot rail. Suitable for this are Löher countersink and deburring tools with a maximum diameter of 8 mm.
