Scriber Gauge Measuring Depth 150mm Reference Bar Length 91mm Bar Depth 33mm
MATSUI
€369.90*
Available, delivery time: 1-3 businessdays within Germany
Product number: 323613
Product information
This marking gauge functions essentially like a caliper with a vernier scale for 1/10 mm precise adjustments. Like a caliper, the stop can be easily moved with one hand.
A locking screw allows you to fix the set measurement. Marking can be done with a scribing needle or a pencil.

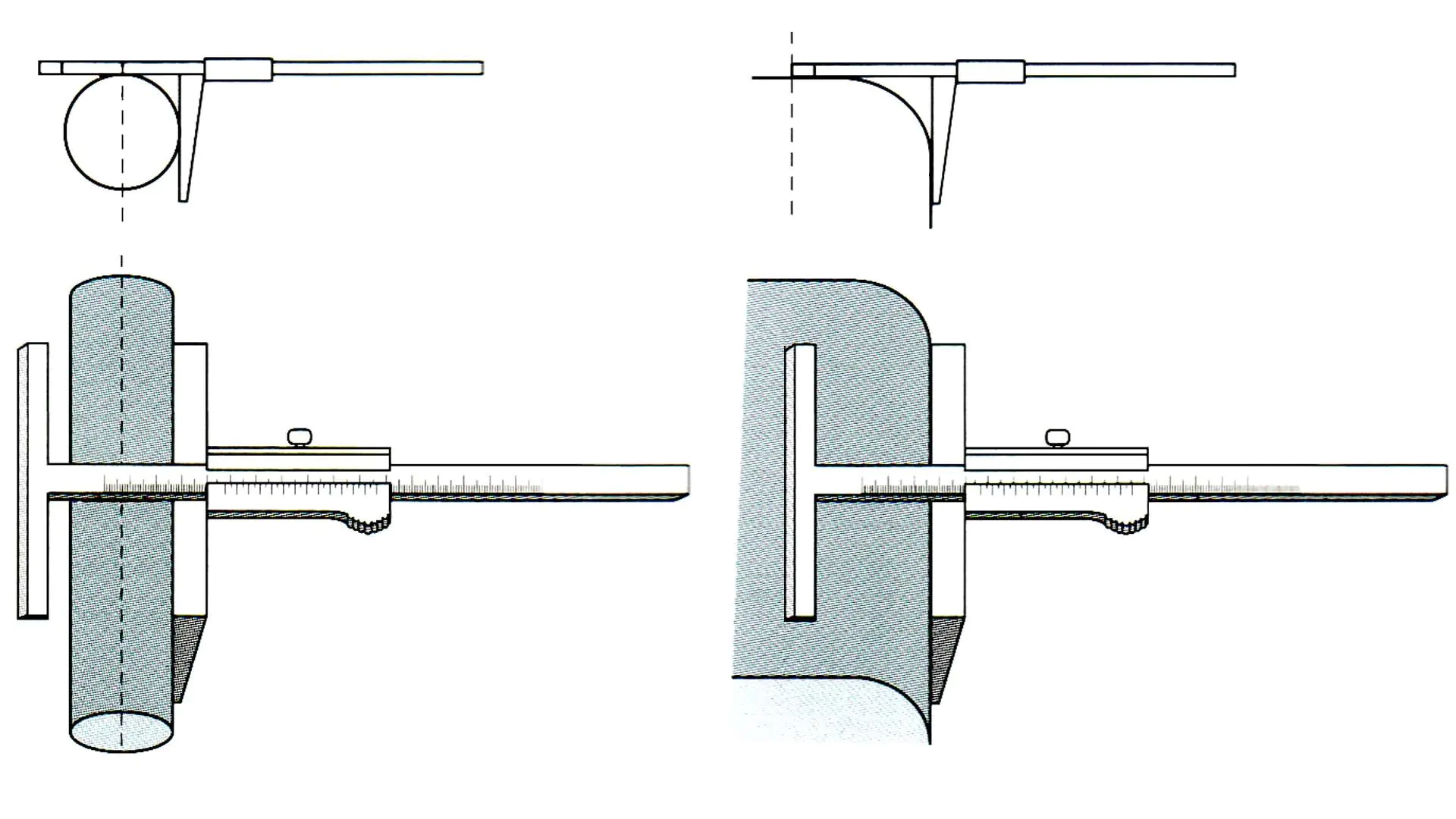

- Due to the deep bridge dimension of 33 mm, this marking gauge is particularly suitable for workpieces with rounded edges.
- Supplied with scribing needle
| Features | |
|---|---|
| Bridge length and scribing edge length | 91 mm |
| Bridge depth | 33 mm |
| Overall length closed | 247 mm |
| Measurement or scribing depth | up to 150 mm |
