SE-77 Square Edge Jig
TORMEK
Available, delivery time: 1-3 businessdays within Germany
Product information

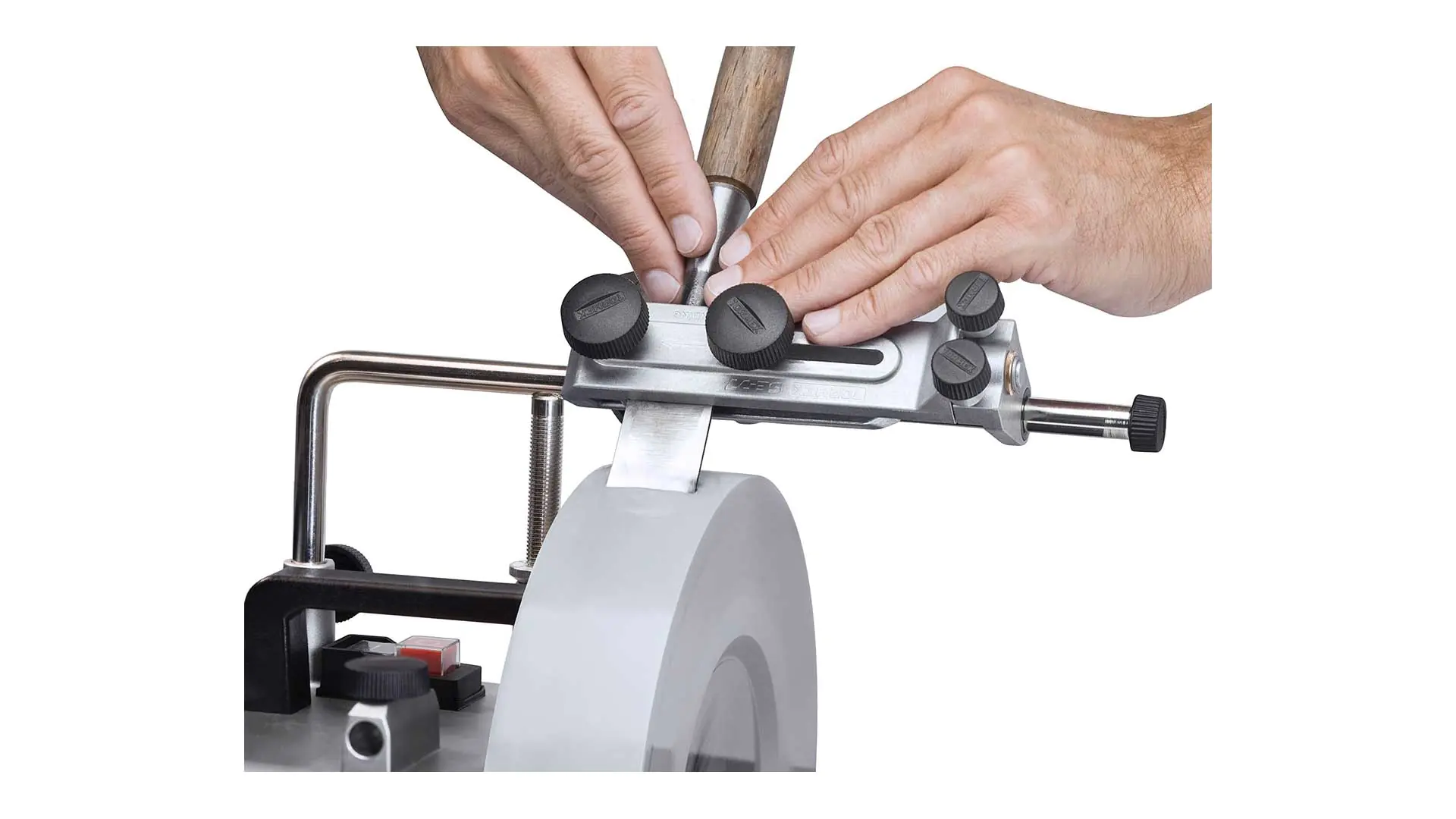

With the Straight Edge Jig SE-77, it’s easy to set it up to sharpen your chisels and plane irons with a square edge. The design provides you with the best conditions for successful sharpening with the highest precision end result. You can also adjust the jig for a slightly convex shape of the edges.
The Straight Edge Jig SE-77 is an advancement of the SE-76 jig. It has been equipped with an adjustable side that can be fine-tuned using two smaller adjustment screws, allowing for precise calibration when needed. This may be necessary if the tool does not lie exactly at the angle on the stone, is very narrow, or if the steel is slightly twisted. The fine-tuning adjustment is done in a few seconds by loosening one of the smaller adjustment screws and tightening the other.
The construction of the jig also makes it possible to position and sharpen tapered chisels, such as Japanese chisels. The safety stops keep the jig securely on the universal support and prevent the tool from slipping off the grinding stone, eliminating the risk of injuring your fingers while sharpening. The jig is suitable for chisels and plane irons up to 77 mm in width and 9 mm in thickness.
| Features | |
|---|---|
| Function | Adjustment for right-angle cutting |
