RAFJUMBO INCRA Right angle Fixture - Jumbo (9-7/8 inch Faceplate)
Available, delivery time: 2-3 days
Product information

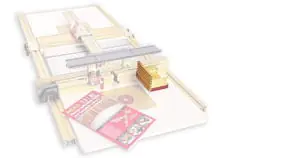

The INCRA Jumbo Right Angle Fixture is designed to hold the workpiece perpendicular to the table while you work on the end grain side.
The Right Angle Fixture is used in conjunction with an INCRA router fence to guide the workpiece (board) perpendicular to the table and the fence when routing dovetails or box joints into the end of the board.
The 254 mm (10 inch) wide clamping plate is an improvement over the original 152 mm (6 inch) wide version. The large number of T-slots on the clamping plate allows you to install sacrificial boards flush with the table, or use custom brackets.
The fixture features two adjustment screws where it slides on the fence, which are used to adjust the play of the guide. A third screw secures the fixture to the fence so it doesn’t slip when securing the workpiece. The wooden slides won’t damage your bits if they come into contact and are easy to replace if necessary. This fixture fits all INCRA aluminum router fences.
| Features | |
|---|---|
| Compatibility | All INCRA aluminum router fences |
| Number of T-slots | Multiple |
| Width of clamping plate | 254 mm |
| Adjustment screws | 2 |
| Material of sliders | Wood |
| Original width | 152 mm |
