Quick Adjustable Circle Cutter no.
5010 High Speed Steel STAR-M
Available, delivery time: 2-3 days
Product information

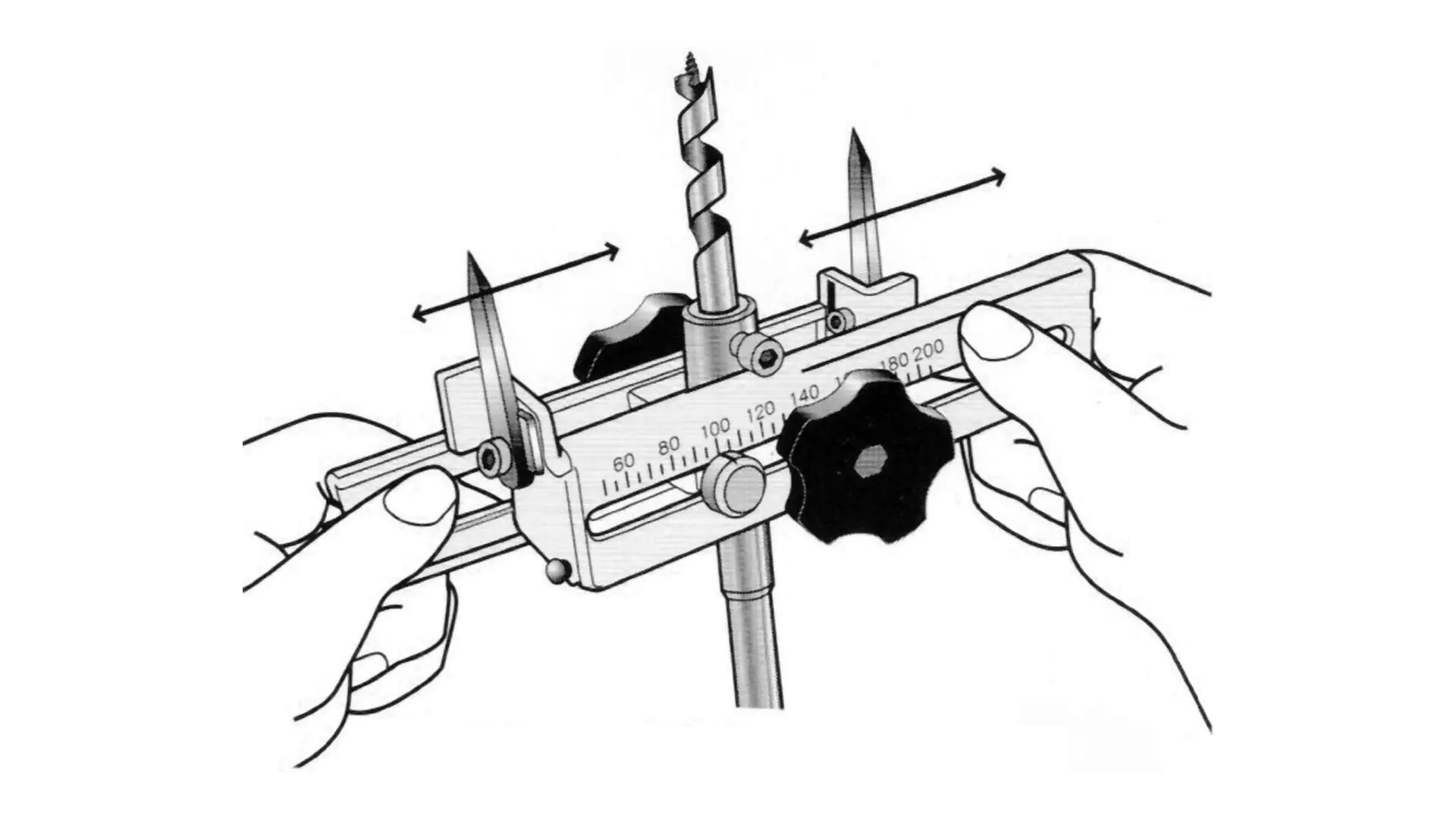

The advantage of this circle cutter is that you don’t have to adjust the blades individually. Simply loosen the two star knobs and slide the two arms to the desired position. A cable pull ensures that the two arms move evenly in opposite directions. This way, you can set the desired hole width much easier and faster than with conventional circle cutters. After setting the desired measurement, just tighten the two star knobs again. The cable pull can be retensioned.

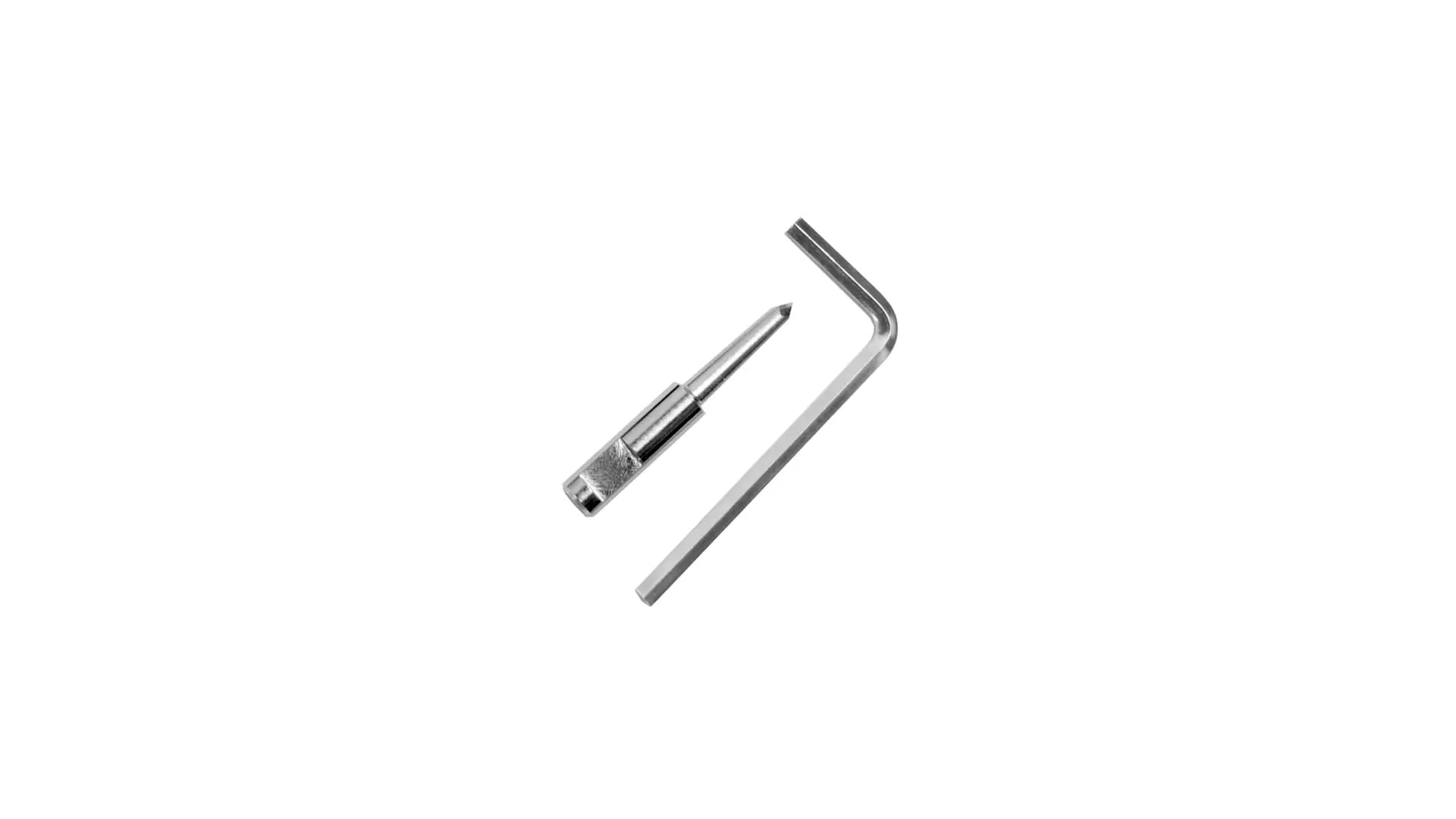

Precise circles up to a diameter of 200 mm in wood, wood materials, and even chipboards are possible. Due to external and internal scoring, the edges are burr-free and clean. An additional tip for thin materials is included in the delivery. A suitable angle wrench is supplied.
Drilling from 2 sides: 60 mm
Rotations: max. 1000 min[^-1
^]
Recommendation: Start significantly lower and gradually increase the speed. This way, you can find the ideal speed for your material.
| Features | |
|---|---|
| Drill Diameter | continuously adjustable 60 – 200 mm |
| Drilling Depth on 2 Sides | 60 mm |
| Weight | 550 g |
| Maximum Drilling Depth | from one side 30 mm |
| Shaft Thickness | 10 mm |
| Revolutions | max 1000 min⁻¹ |
Login
Also interesting
Available, delivery time: 2-3 days

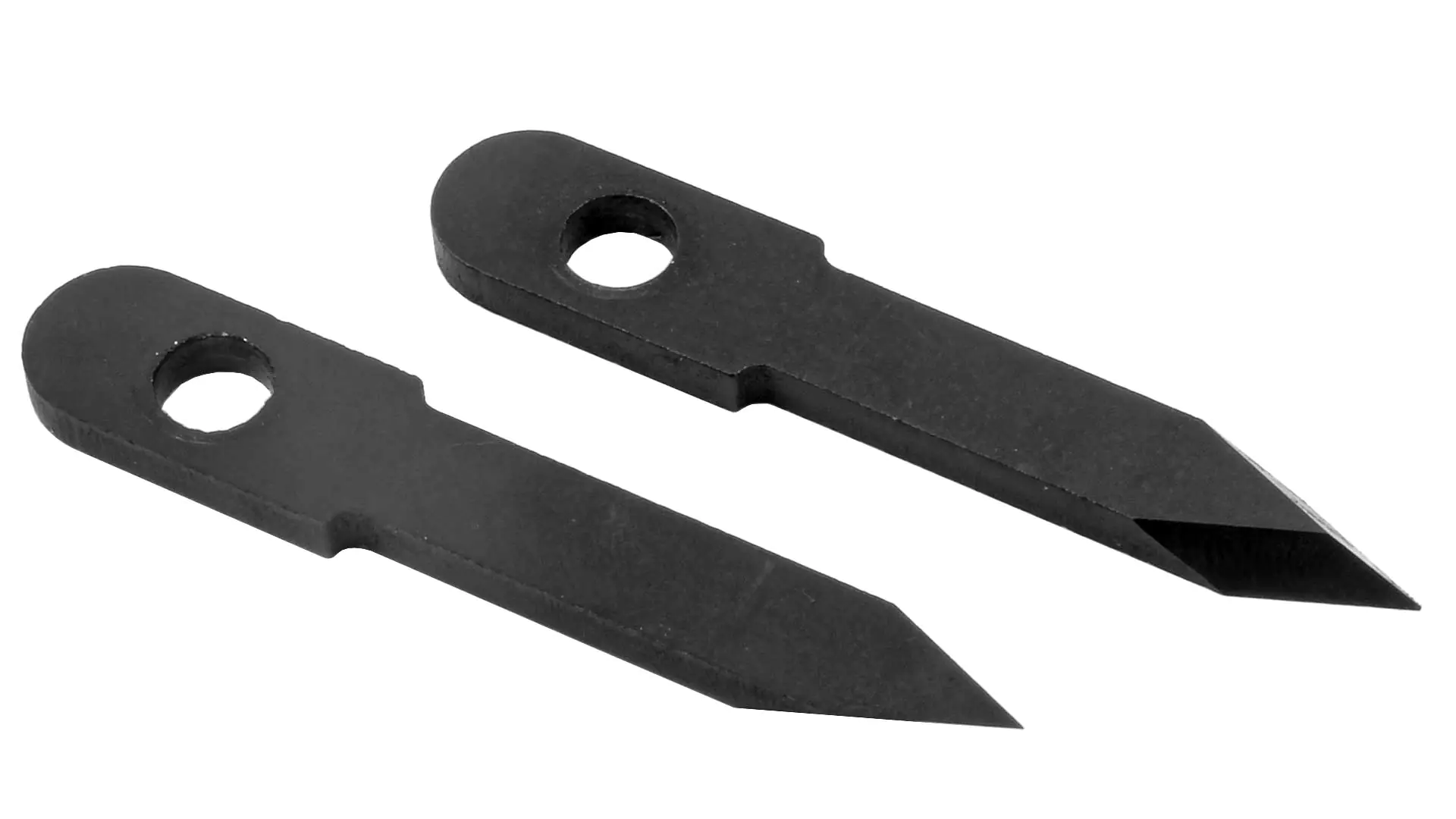

Spare Parts
