Profile Gauge
2 x 200 mm intermateable Profile Depth 50 mm
€36.90*
Available, delivery time: 2-3 days
Product number: 307042
Product information
The profile gauge allows for quick scanning of complex contours. The two 20 cm long elements can be easily connected together and adapted to individual needs. The included angle connector allows the elements to also be connected at an angle. Due to the flat and even surface of the template, the scanned profile line can be easily transferred to other workpieces. Any number of elements can be connected together.
Features

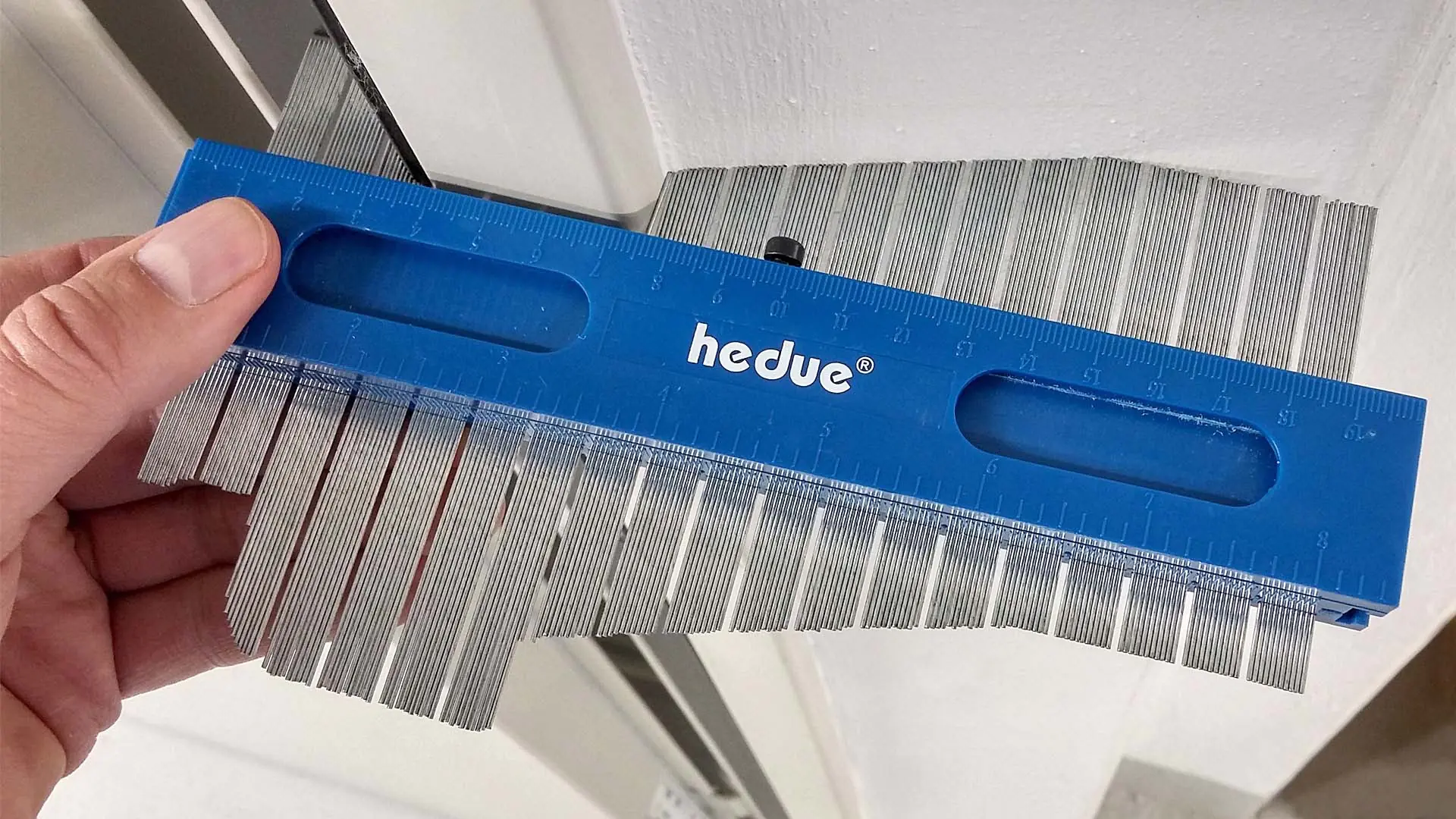

- Easy scanning of complex contours

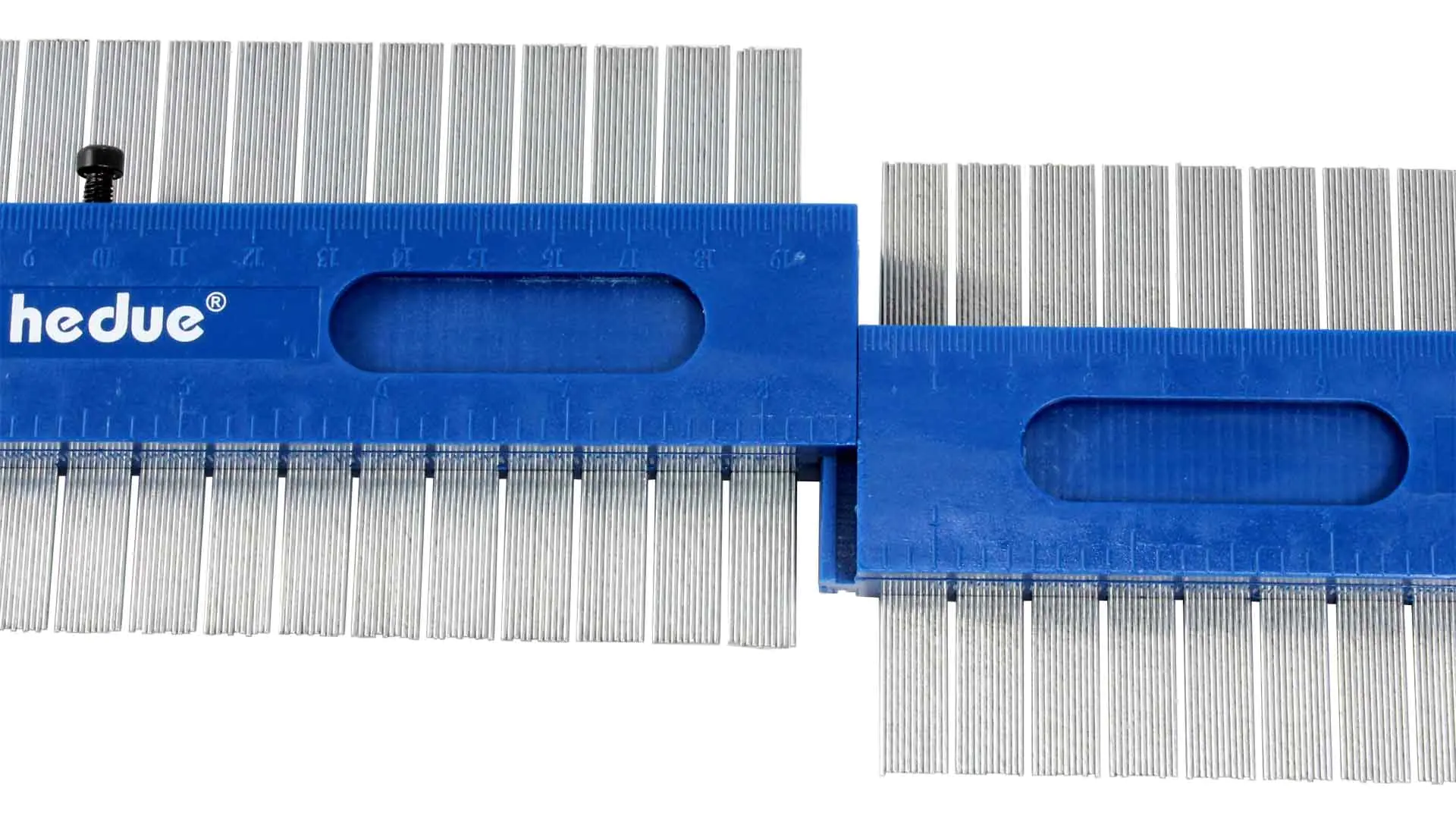

- Elements are connectable

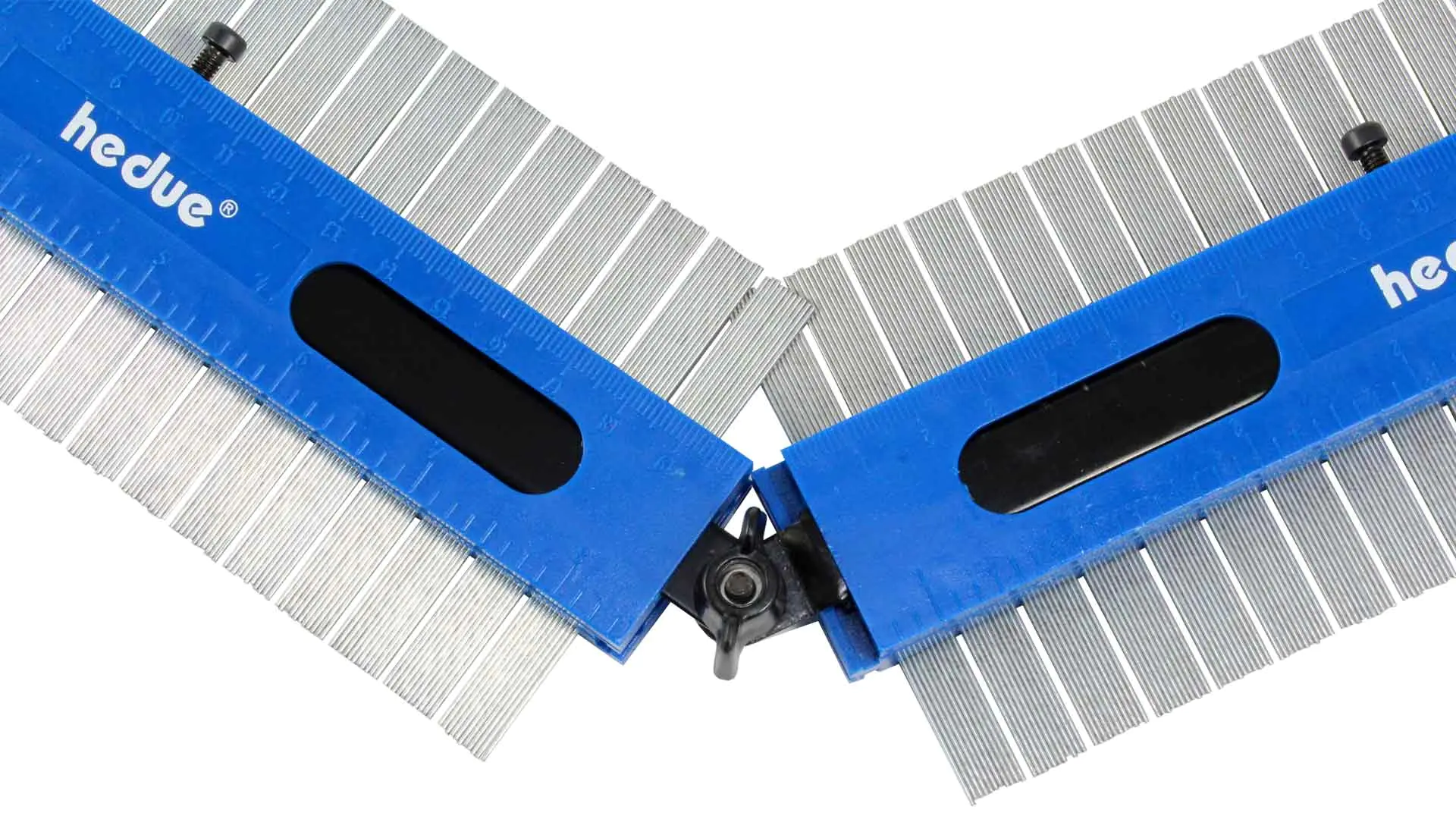

- Can also be connected at an angle
- The scanned profile line is easily transferable to a workpiece thanks to the flat surface
- With millimeter scale and inch scale
Included:
- 2 scanning elements, each 20 cm long
- 1 angle connector
- Plastic box
Dimensions of the scanning pins: 85 × 0.8 mm
Measuring depth: 50 mm
| Properties | |
|---|---|
| Working length | 20 cm |
| Dimensions of the contact pins | 85 × 0.8 mm |
| Measuring depth | 50 mm |
| Length of contact elements | 20 cm |
