Precision Saw Guide 90° und 45° with
2 Saw Blades 265 and 180 mm Z-Saw
Available, delivery time: 2-3 days
Product information

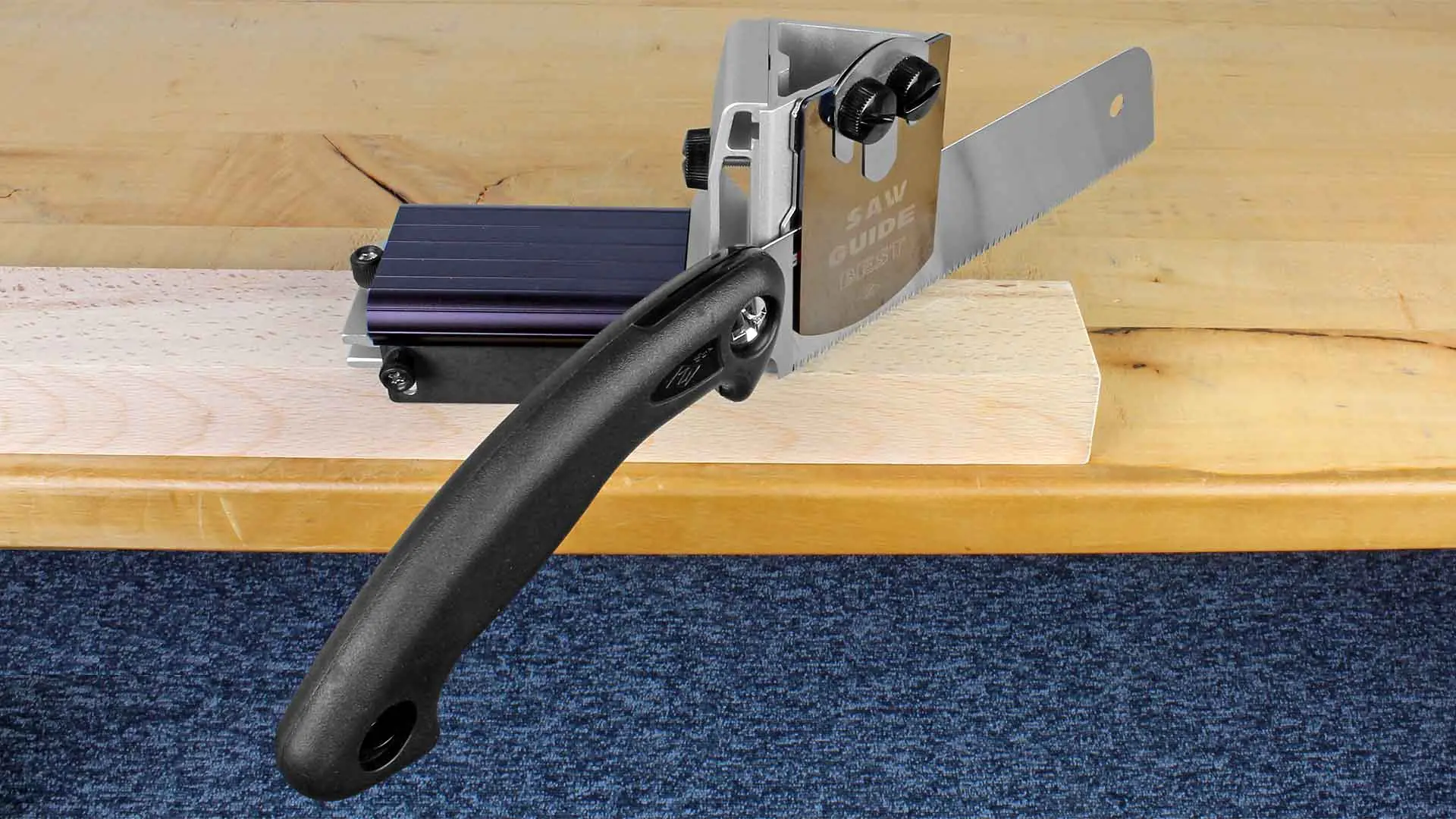

This newly developed miter box from ZETSAW sets a new precision standard for miter boxes. The design intentionally omits the ability to set an arbitrary number of angles, focusing instead on achieving particularly high accuracy for the two most common angles: 90° and 45°.
Both narrow and wide workpieces, such as panels, can be processed with high precision. An included dummy saw blade allows for a simulated „test cut” along a drawn line. This lets you immediately see if the miter box is set correctly and whether the subsequent „real” cut will truly follow the scribed line accurately.
By simply adjusting, this miter box is suitable for both right-handed and left-handed users.

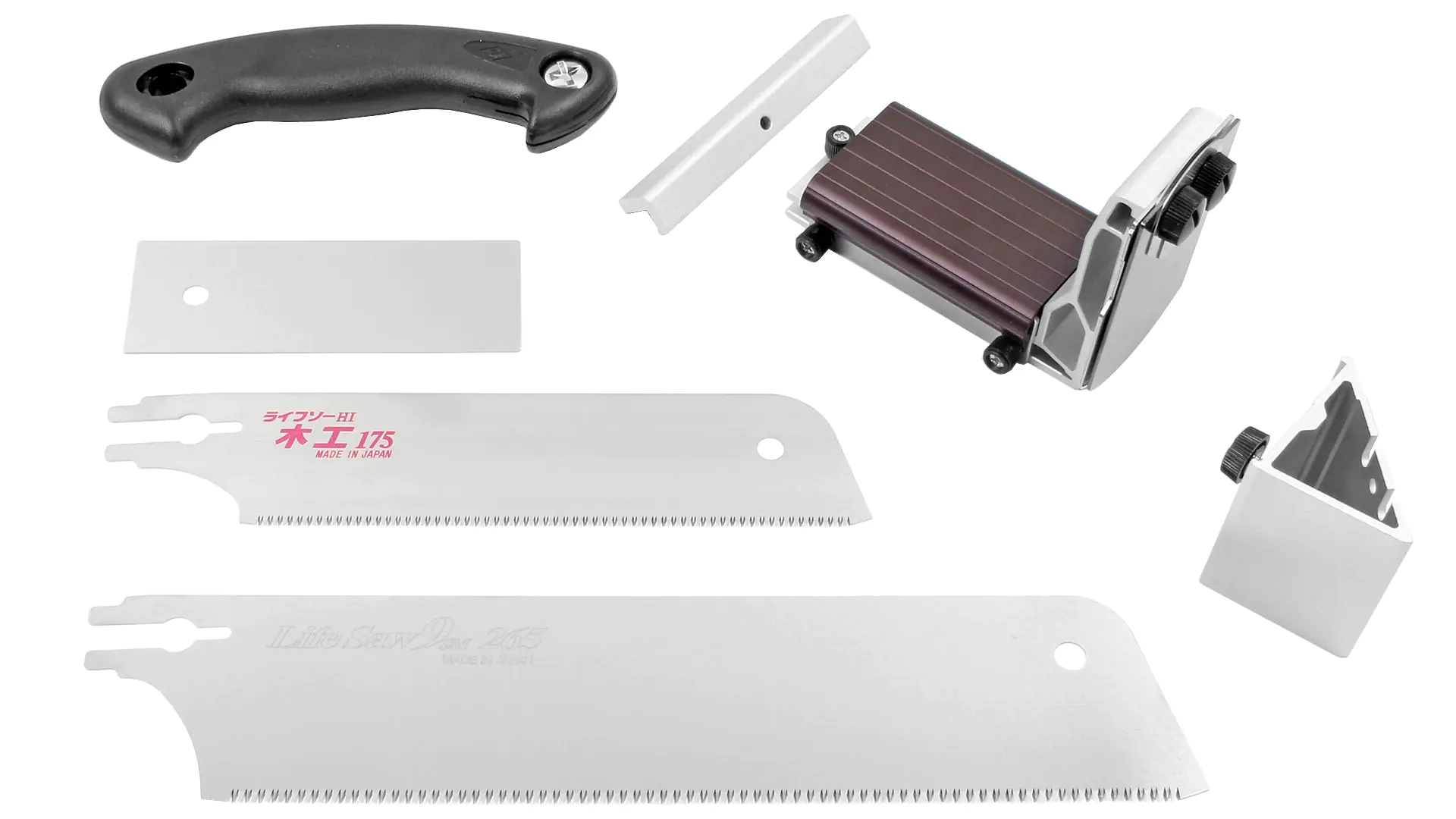

Delivery includes 2 saw blades and one dummy blade:
| Features | |
|---|---|
| Dummy blade width | 45 mm |
| Dummy blade thickness | 0.6 mm |
| Dummy blade length | 120 mm |
| Large saw blade width | 62 mm |
| Large saw blade thickness | 0.6 mm |
| Large saw blade length | 265 mm |
| Large saw blade kerf | 0.92 mm |
| Large saw blade tooth pitch | 1.75 mm |

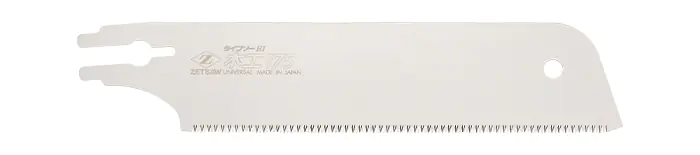

| Small saw blade width | 47 mm |
| Small saw blade thickness | 0.5 mm |
| Small saw blade length | 180 mm |
| Small saw blade kerf | 0.66 mm |
| Small saw blade tooth pitch | 1.4 mm |
| Contents | 1 dummy blade, 2 saw blades |
