Pocket Layout Square Length 1-1/2 inch
VERITAS
Available, delivery time: 2-3 days
Product information
Note: Measurements in inches only!

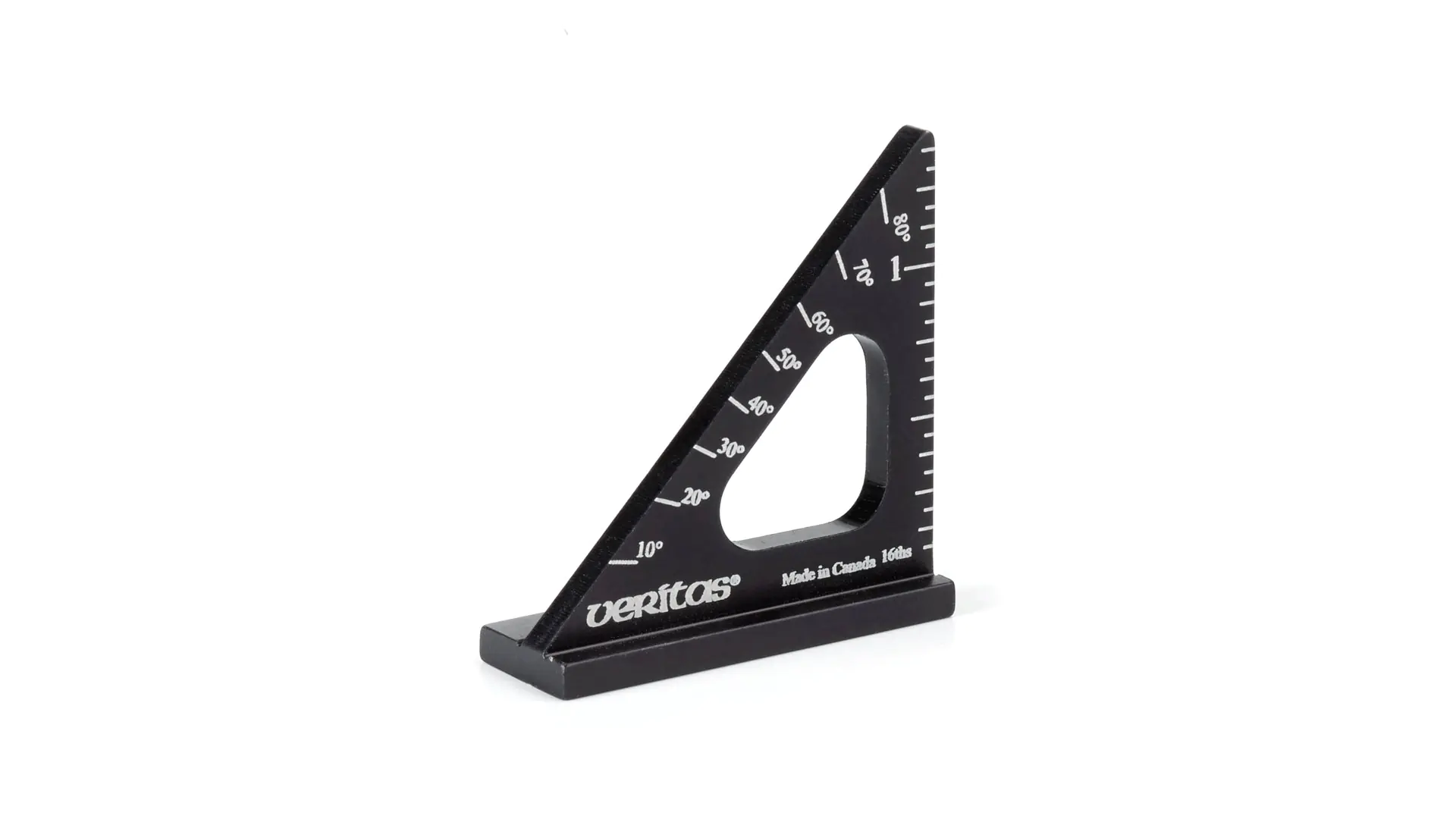

Made from solid extruded aluminum, anodized and laser-engraved on both sides, this triangular layout square measures only 1-1/2 inches (38 mm) along one side. The 1/2 inch (12.7 mm) wide and 1/8 inch (3.2 mm) thick base rests firmly against the workpiece and has an overhang of 1/8 inch (3.2 mm) on one edge and 1/4 inch (6.35 mm) on the other.
Like a full-sized layout square, this mini square has 1/16-inch graduations as well as angle markings in 10° increments. However, the protractor part is not as precise as that of a standard square.

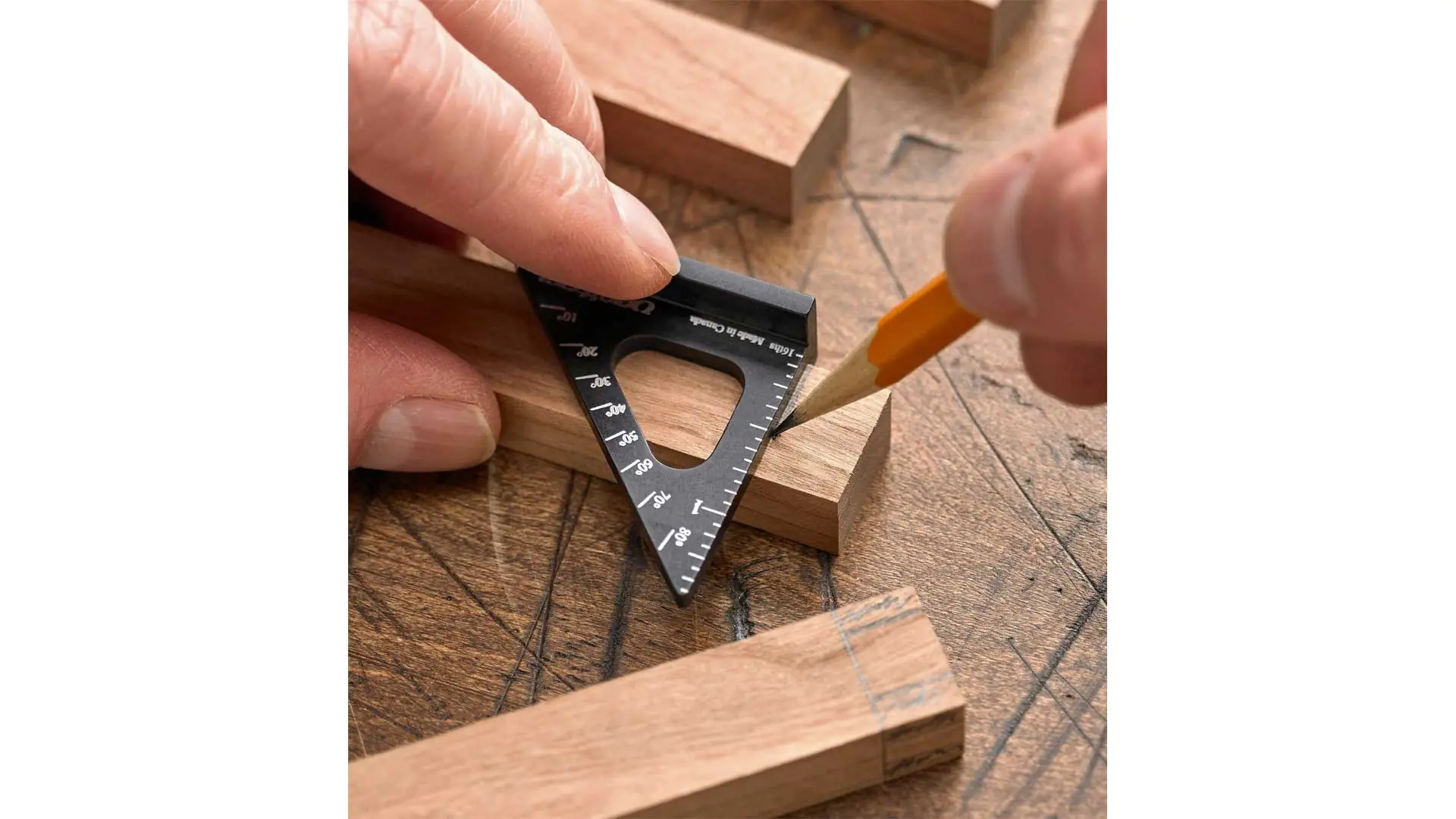

The square fits in any pocket and is ideal for marking smaller wood joints or working in confined spaces where simple cut-off or miter squares are needed.
Made in Canada
| Properties | |
|---|---|
| Foot width | 1/2 inch (12.7 mm) |
| Foot thickness | 1/8 inch (3.2 mm) |
| Length of one side | 1-1/2 inch (38 mm) |
| Material | solid aluminum extrusion profile |
| Surface treatment | anodized on both sides and laser engraved |
| Scale | inches only |
| Graduation | 1/16 inch, 10° steps |
