One-Handed Assembly Tool

BEYCEPS BESSEY

Lifting, Lowering, or Aligning with up to 180kg

Powerful and Versatile
The BEYCEPS enables assembly work with up to 180 kg lifting capacity. There are numerous applications in both professional and DIY areas:

• thanks to the large working range when lifting or spreading from 5 to 230 mm (without the protective cap mounted on the base)
• thanks to the quick, tool-free conversion to clamping for work with a working range of 170 to 390 mm
• thanks to the combination with the installation kit BEY-IK available as an accessory

Comfortable and Safe Handling
Lifting, lowering, and aligning workpieces can be carried out gently and precisely to the millimeter with just one hand using the BEYCEPS. Operation is ergonomic, intuitive, and safe:

• thanks to the pump handle made of 2-component plastic located on the top
• thanks to the levers for fine lowering and releasing located separately under the pump lever. Thus, accidental triggering is avoided

Protected and Gentle Working
In the development of the single-hand assembly tool BEYCEPS, great emphasis was placed on the protection of the product, user, and workpiece. This is evident:

• thanks to the enclosed plastic housing. It protects the internal mechanism from dust, dirt, and chips and prevents finger pinching
• thanks to the protective caps for the base and lifting plate included in the delivery. They are easy to attach and prevent damage to floors and workpieces with sensitive surfaces

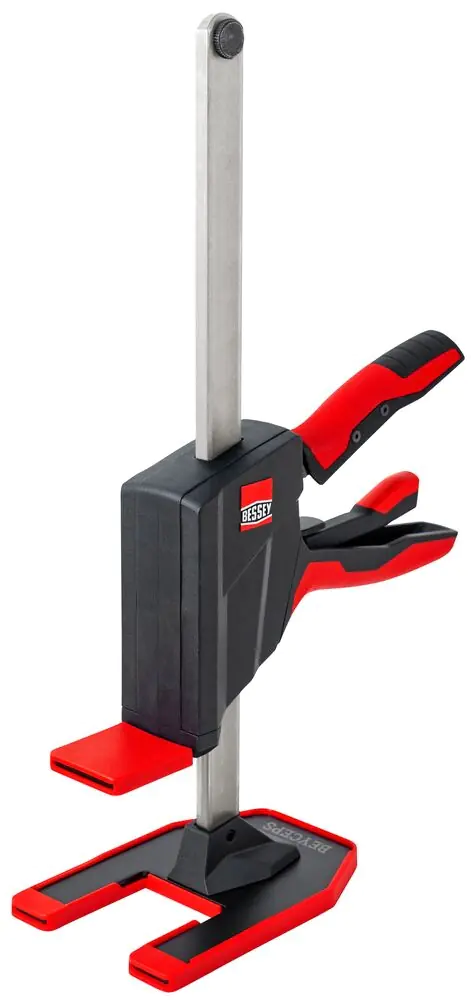

Product Details

• Lifting capacity up to 1,800 N / 180 kg / 400 lbs
• For precise, gentle, and safe lifting (up to 8 mm per operation of the pump handle), lowering (up to 4 mm per operation of the lowering lever), and aligning of workpieces with just one hand
• Ergonomic and safe handling, as the pump handle made of 2-component plastic is placed on the top, and below it, the two levers for releasing and fine lowering are arranged separately
• Enclosed plastic housing protects the mechanism from dust, dirt, and chips and prevents finger pinching
• Tool-free conversion to clamping
• Protective caps for base and lifting plate – included in delivery – prevent damage to sensitive surfaces
• CE marking
