Multifunction gauge from
DASQUA
DASQUA
10% Discount
New
10% Discount
New
10% Discount
New
€9.36*
€10.40*
You save €1.04!
Available, delivery time: 1-3 days
Product number: 750024
Product information

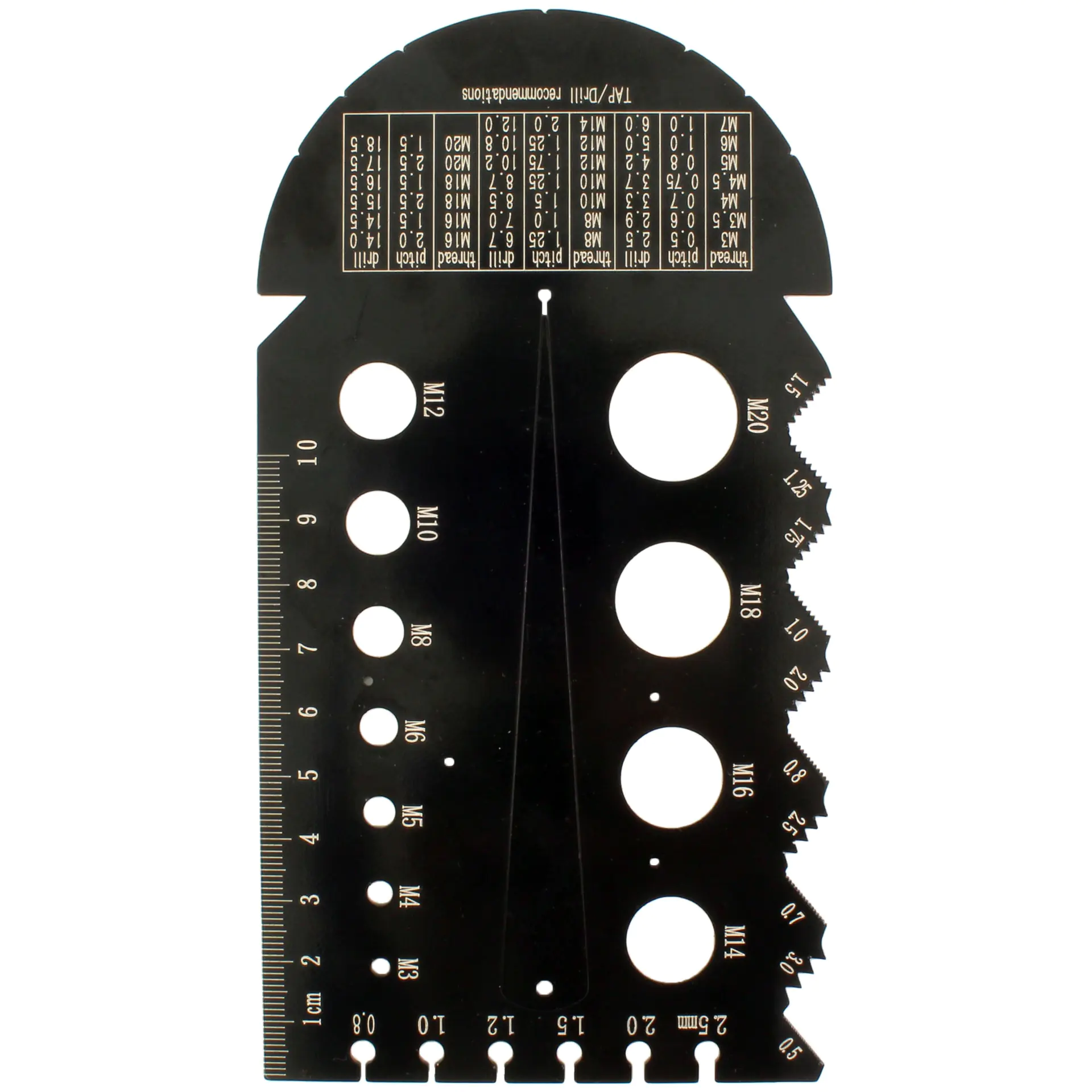

This versatile measuring tool stands out with the following attributes:
- Removable measuring wedge, 109 mm long with a hanging opening. Reading from 1 – 13 mm, with 0.1 mm graduation. Reverse side in inches, reading to 1/64“
- Centrally positioned measurement option for round workpieces with a diameter of 1 to 13 mm, accurate to 0.1 mm
- Semi-circular protractor with 5° graduations, central opening, and V-shaped marking aids every 30°, additionally at 45° and 135°
- Millimeter graduation from right to left on the outside over 7 cm
- 11 holes for quick determination of round material from M3 to M20
- Thread gauge with 10 different thread pitches: 0.5, 0.7, 0.8, 1.0, 1.25, 1.5, 1.75, 2.0, 2.5, 3.0. Table on the backside showing the relation between thread, pitch, and drill diameter
- 6 notches for determining the thickness of washers or the diameter of wire: 0.8, 1.0, 1.2, 1.5, 2.0, 2.5 mm
- Dimensions: 90 × 170 mm, steel, non-magnetic, solid 1.3 mm thick, black

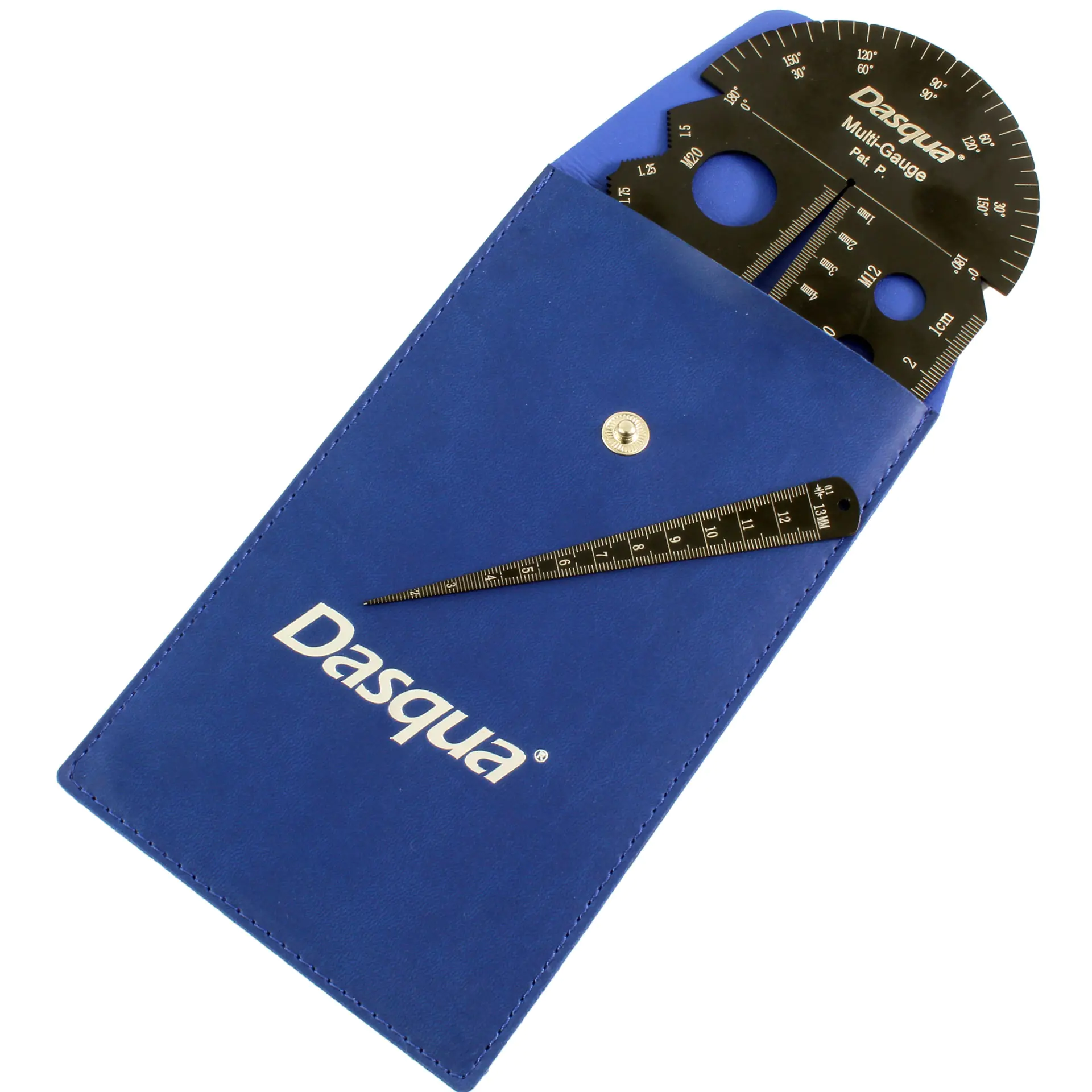

- Supplied in a protective cover with snap button closure
