Moxon Vice with wooden Jaws and
2 Spindles YORK
10% Discount
10% Discount
10% Discount
€217.71*
€241.90*
You save €24.19!
Available, delivery time: 2-3 days
Product number: 307508
Product information

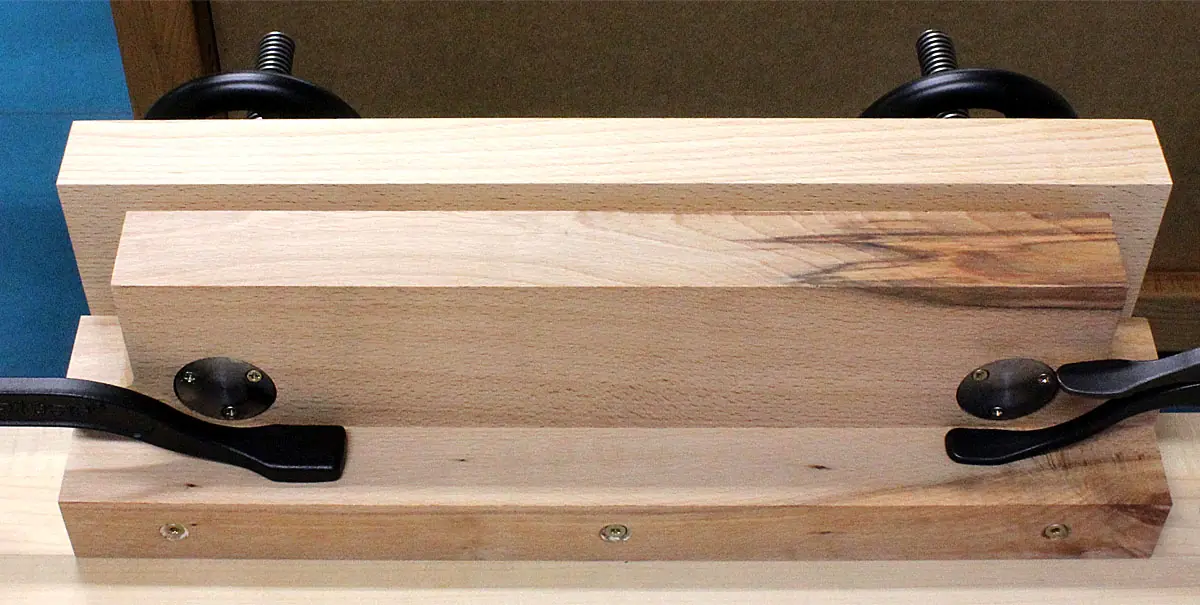

This ready-to-use vise uses the YORK Moxon spindle set. The jaws are made of beech wood and can be attached to the workbench in various ways as shown in the picture. The rear jaw has a screwed-on low square timber to clamp the vise with holdfasts. The rear jaw features notches on the right and left sides to allow the vise to be secured with regular clamps on the front dog rail of the workbench. With this model, you can start working immediately without any additional effort.
Dimensions of the spindles:

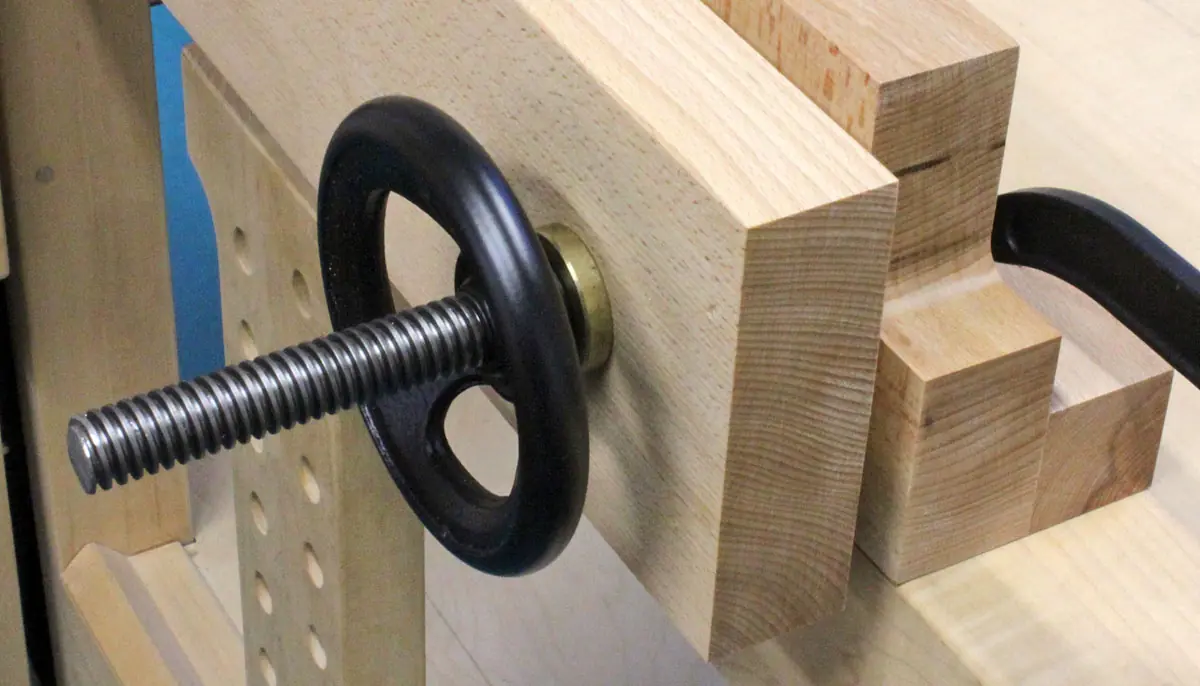

- 2 handwheels with a diameter of 127 mm made of cast iron
- 2 trapezoidal threaded spindles made of steel, 240 mm long with a diameter of 20 mm, including mounting plate at the rear end
- 2 brass nuts 40 × 8 mm
| Features | |
|---|---|
| Weight | 7.4 Kg |
| Wooden Jaw Dimensions | 500 × 140 × 45 mm |
| Wooden Jaw Material | Beech |
| Maximum Clamping Range | 130 mm |
