Small Mobile Workstation with crank, depth including jaw
370 mm, width 350 mm PINIE
Available, delivery time: 2-3 days
Product information

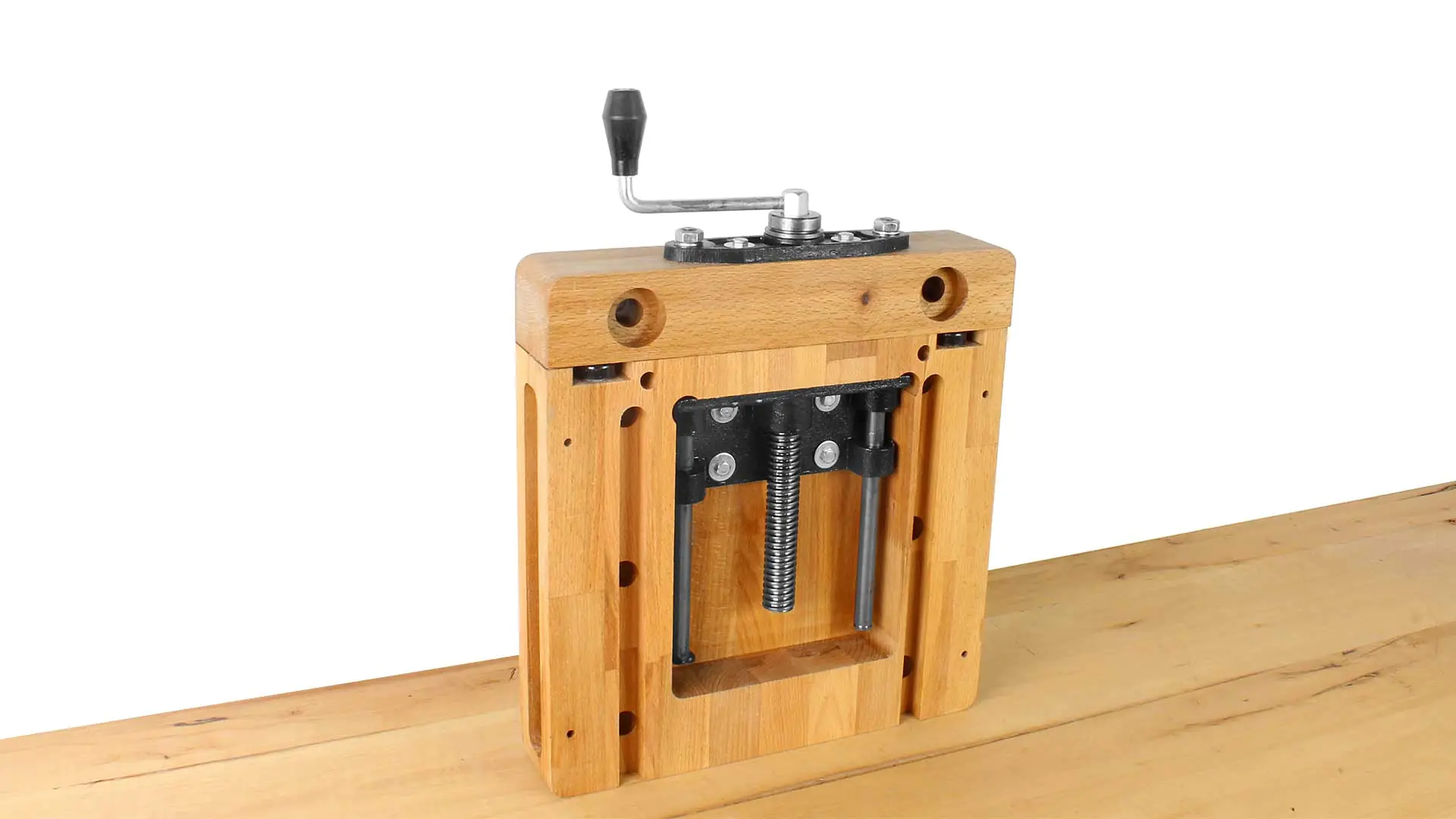

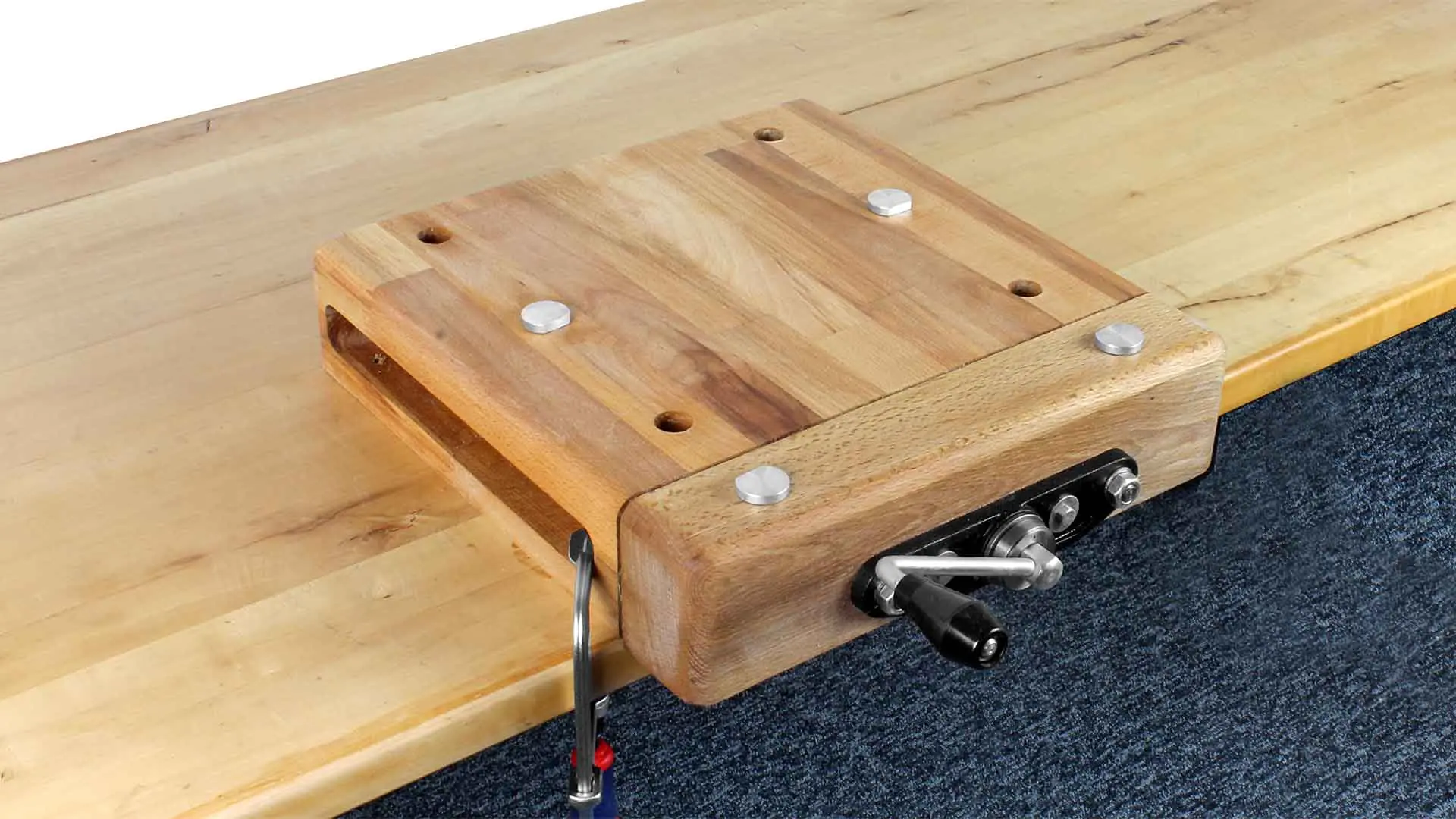

This mobile workbench can be used on virtually any stable table or workbench. Two grooves on the sides allow for the attachment of clamps to secure it to the table. Alternatively, this mobile workbench can also be fastened to the table with a threaded screw, using two holes in the groove for this purpose. The holes have a diameter of only 6 mm and are therefore only suitable for correspondingly thin threaded screws. We find the adjustment screw, which can be screwed in on the front right or left, very clever. By unscrewing up to 90 mm on one side, it can prevent the clamp from skewing when clamping workpieces on one side. The bench dog holes have a diameter of 19 mm, ensuring the use of an extensive accessory program from various manufacturers. Included are 4 round bench dogs with non-recessed heads, each with a length of 57 mm. The surface is oiled.
With a removable crank instead of a vise key. The crank has a loosely placed magnet on the hexagon that is inserted into the holder. This secures the crank against falling out. In individual cases, especially in schools, it can be useful to glue this magnet onto the hexagon. This version with a crank is particularly recommended for schools. The teacher can remove the cranks and lock them away to prevent tampering with the mobile workbenches.
| Features | |
|---|---|
| Width of workbench | 350 mm |
| Total length including crank handle | 490 mm |
| Total length with crank removed | 410 mm |
| Weight | 10 kg |
| Length of the plate | 310 mm |
| Length with wooden jaw | 370 mm |
| Max. opening of the tongs | 120 mm |
| Thickness of the workbench | 80 mm |
| Packaging | 510 × 370 × 110 mm |
| Version | short |
