Mobile Slope Level
EBISU DIAMOND
€38.90*
Available, delivery time: 2-3 days
Product number: 312557
Product information
With dimensions of only 120 × 27 × 27 mm, this small measuring marvel is packed with 6 spirit level vials and a bullseye vial on one end. Three V-grooves allow for checking the slope of pipes, especially in confined spaces where larger slope levels cannot reach. In addition to the horizontal, five different slopes can be checked. The slope direction is from left to right. The small bullseye vial on the end allows for checking the vertical. You can also measure in the dark for a short time with this level, as a light absorption surface behind the vial causes a delayed release of light for a few minutes.
Vial
- next to black area: Horizontal measurement
- next to blue area: Slope 1/50 = 2 cm per 1 m

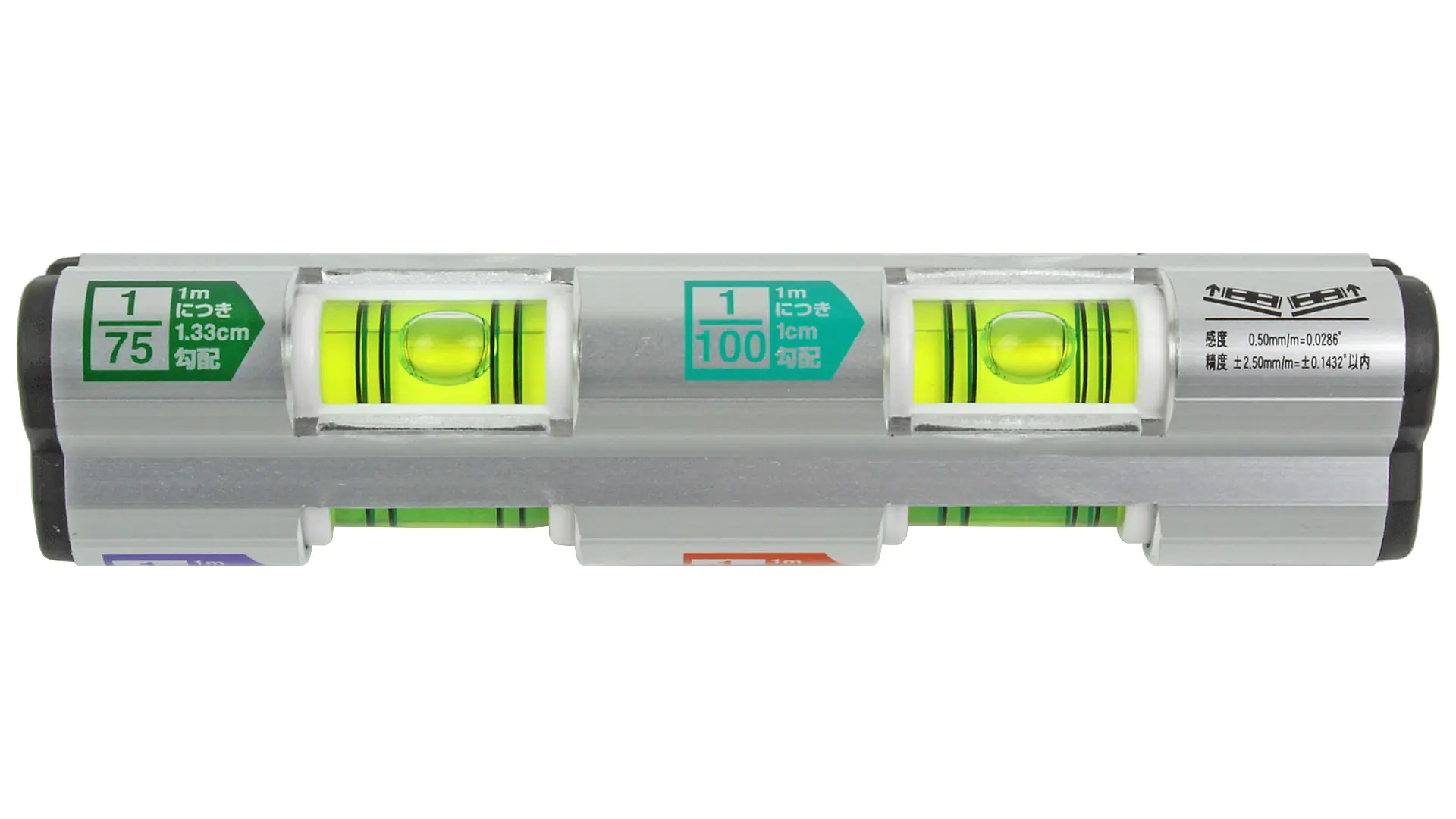

- next to green area: Slope 1/75 = 1.33 cm per 1 m
- next to turquoise area: Slope 1/100 = 1 cm per 1 m

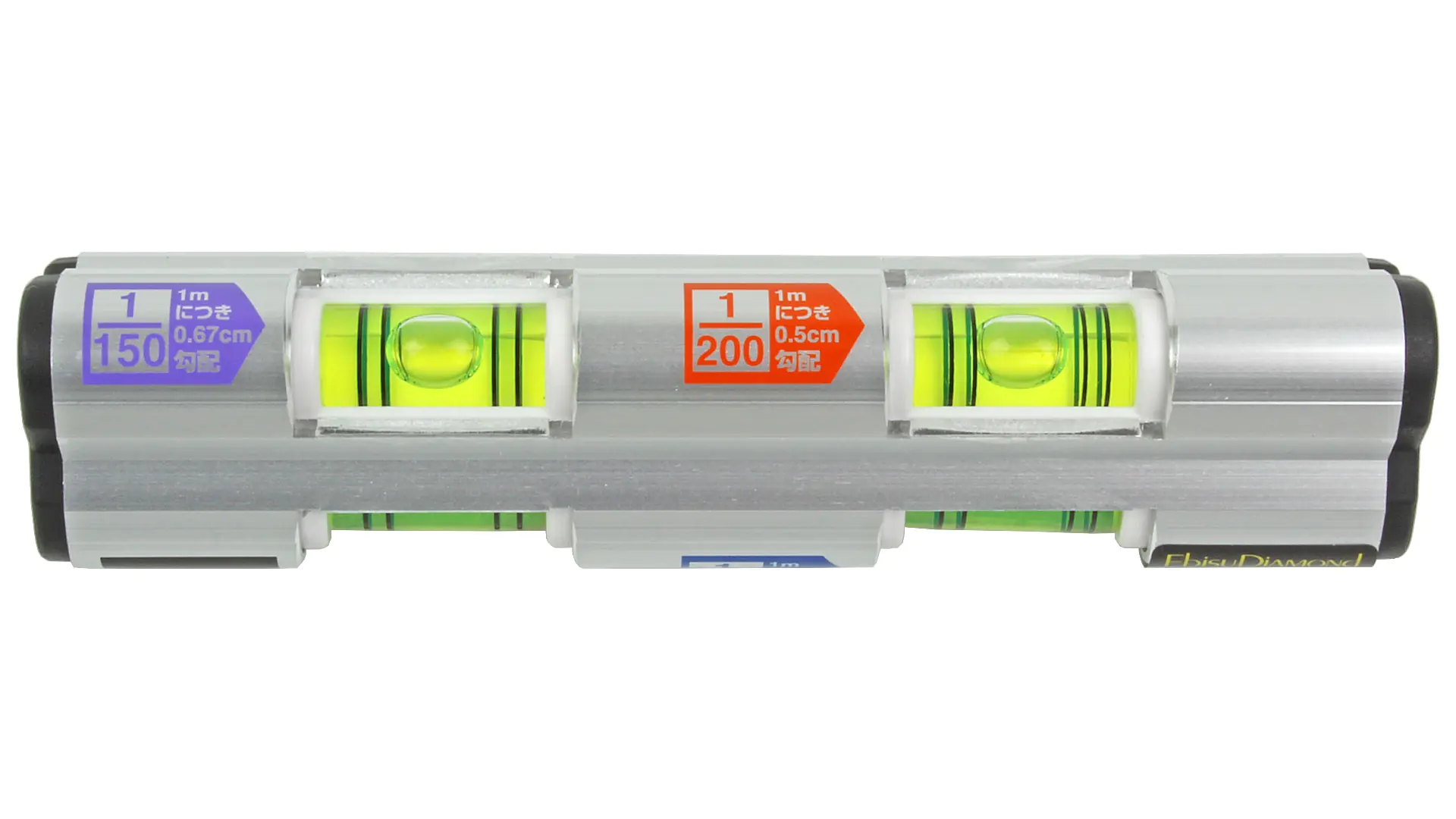

- next to purple area: Slope 1/150 = 0.67 cm per 1 m
- next to orange area: Slope 1/200 = 0.5 cm per 1 m

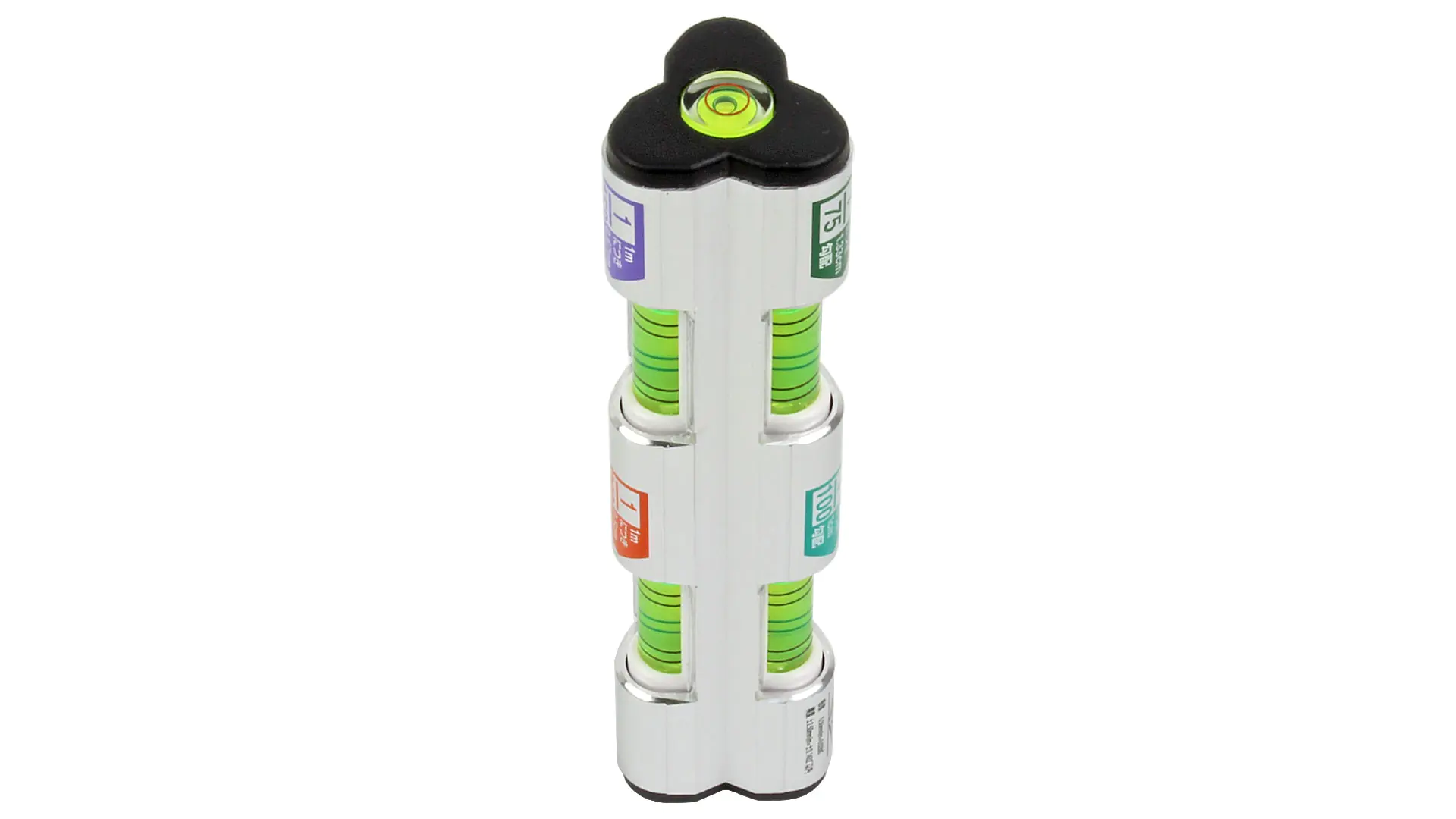

- on the end (bullseye vial): Vertical measurement
| Features | |
|---|---|
| Slope Testing | Horizontal, 1/200 = 0.5 cm per 1 m, 1/150 = 0.67 cm per 1 m, 1/100 = 1 cm per 1 m, 1/75 = 1.33 cm per 1 m, 1/50 = 2 cm per 1 m |
| Size | 120 × 27 × 27 mm |
| Vials | 6 spirit level vials, 1 bullseye vial |
| Vial Material | Acrylic |
| Material | Aluminum with plastic caps |
| V-Grooves | 3 |
