Miter Track Fixture Kit
JUUMA
Available, delivery time: 1-3 businessdays within Germany
Product information

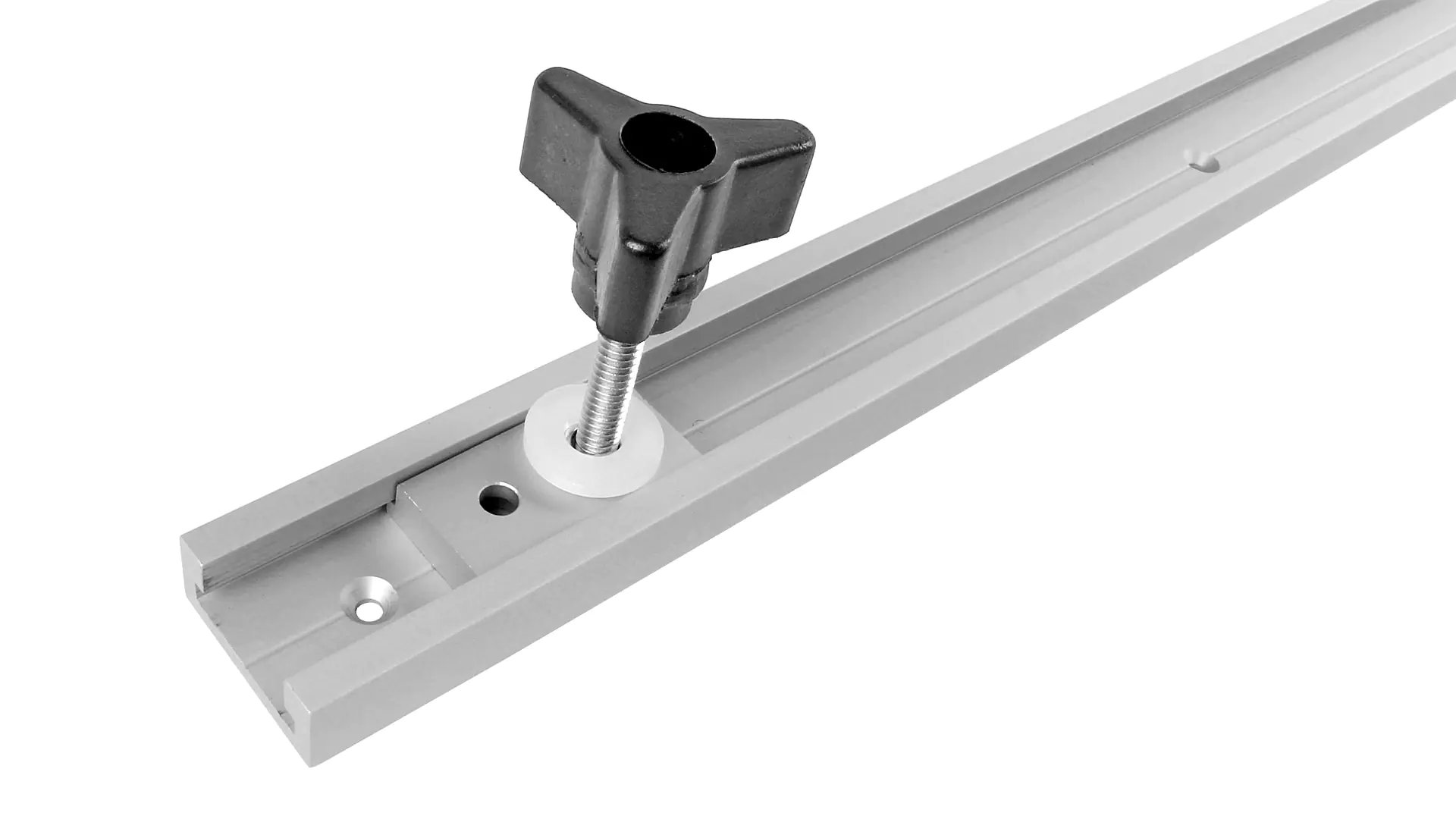

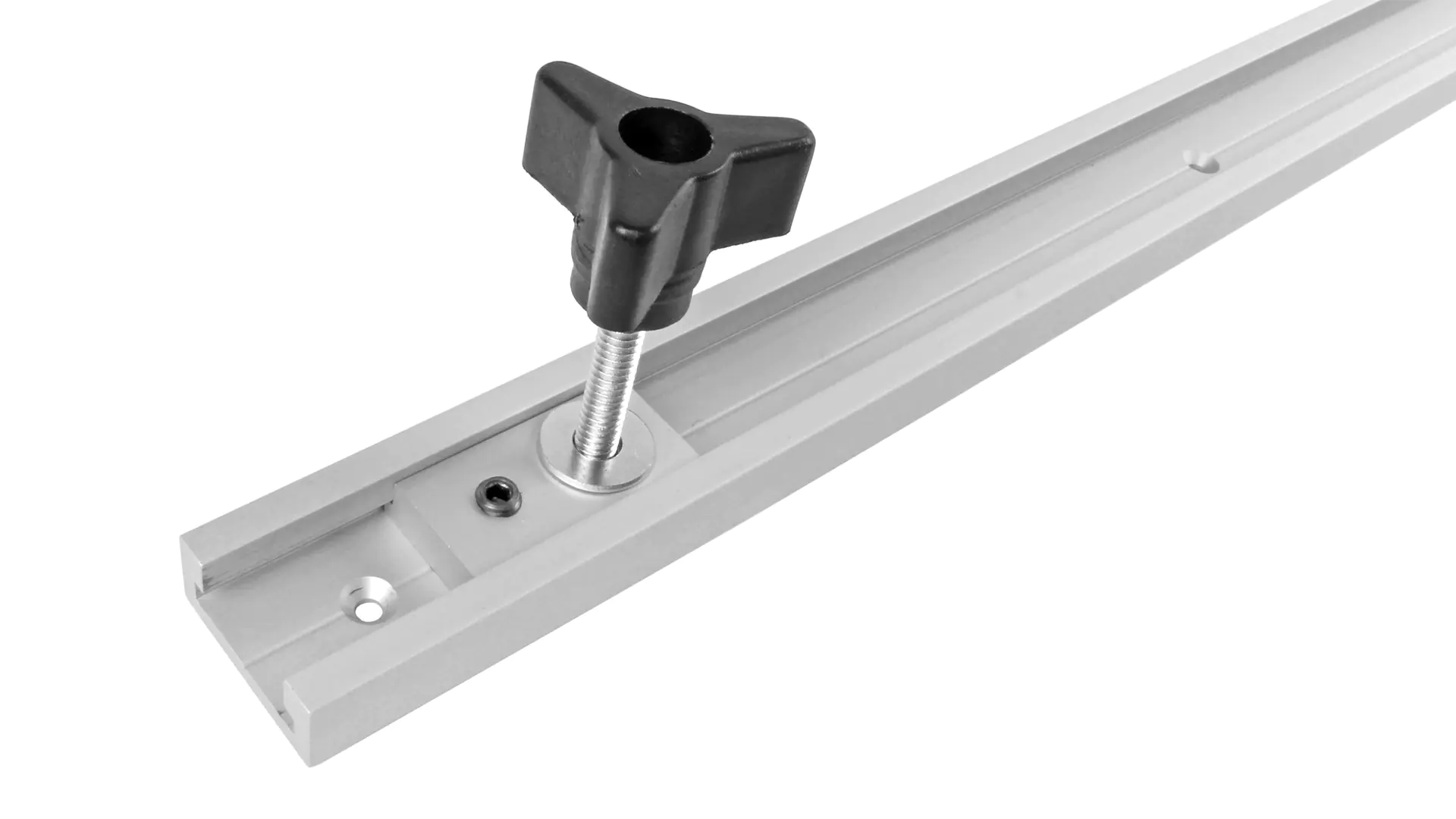

With this clamping set, various items can be secured or guided on the multifunction table. Two aluminum T-slot nuts glide easily in the T-slot channel and can be connected with a bar to create a guide. Primarily, however, they are used to secure workpieces and fixtures.
Do you already have an INCRA Miter Channel installed in your workbench? You’re in luck; this accessory set fits there as well.
Consisting of:
1 aluminum stop T-slot nut 38.5 × 22.2 × 7.8 mm with 2 internal threads (UNC 1/4)
1 aluminum T-slot nut 38.5 × 22.2 × 7.8 mm with 1 internal thread (UNC 1/4) and bore for pivot point
2 flat head screws, length 50 mm with UNC 1/4 thread
2 three-star knobs with UNC 1/4 thread
1 set screw, length 6.35 mm with UNC 1/4 thread
2 washers, outer diameter 16 mm, inner diameter 6.6 mm
1 plastic spacer, outer diameter 19 mm, inner diameter 8.3 mm, thickness 2.2 mm
1 wood screw, panhead 4 × 20 mm
1 hex key 1/8 inch for set screw
| Features | |
|---|---|
| Thread | UNC 1/4 |
| Components | Hex key, Washers, Stop T-slot nut, Pivot T-slot nut, Plastic spacer, Wood screw, Flat head screws, Three-star knobs, Set screw |
| Material | Aluminum |
