Mite-R-Slide

II JESSEM

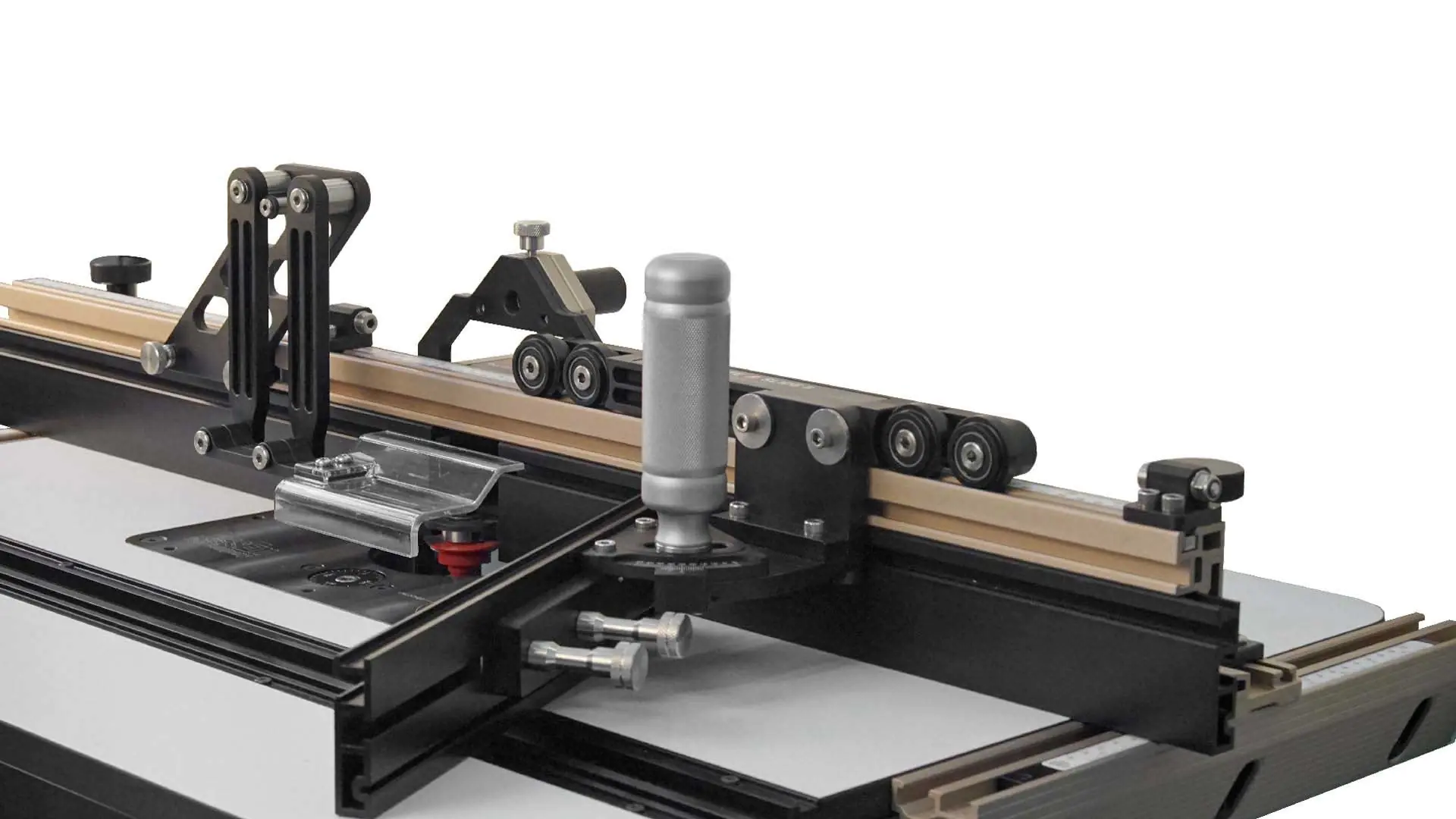

The new Mite-R-Slide II fully meets the high demands on quality and innovation that JessEm sets on itself. The Mite-R-Slide II is a unique sliding stop for your router table. It is guided in the T-slot on the top of the router fence, making setup quick and easy. When you no longer need it, simply pull it out of the T-slot and place it back on the shelf until the next use.

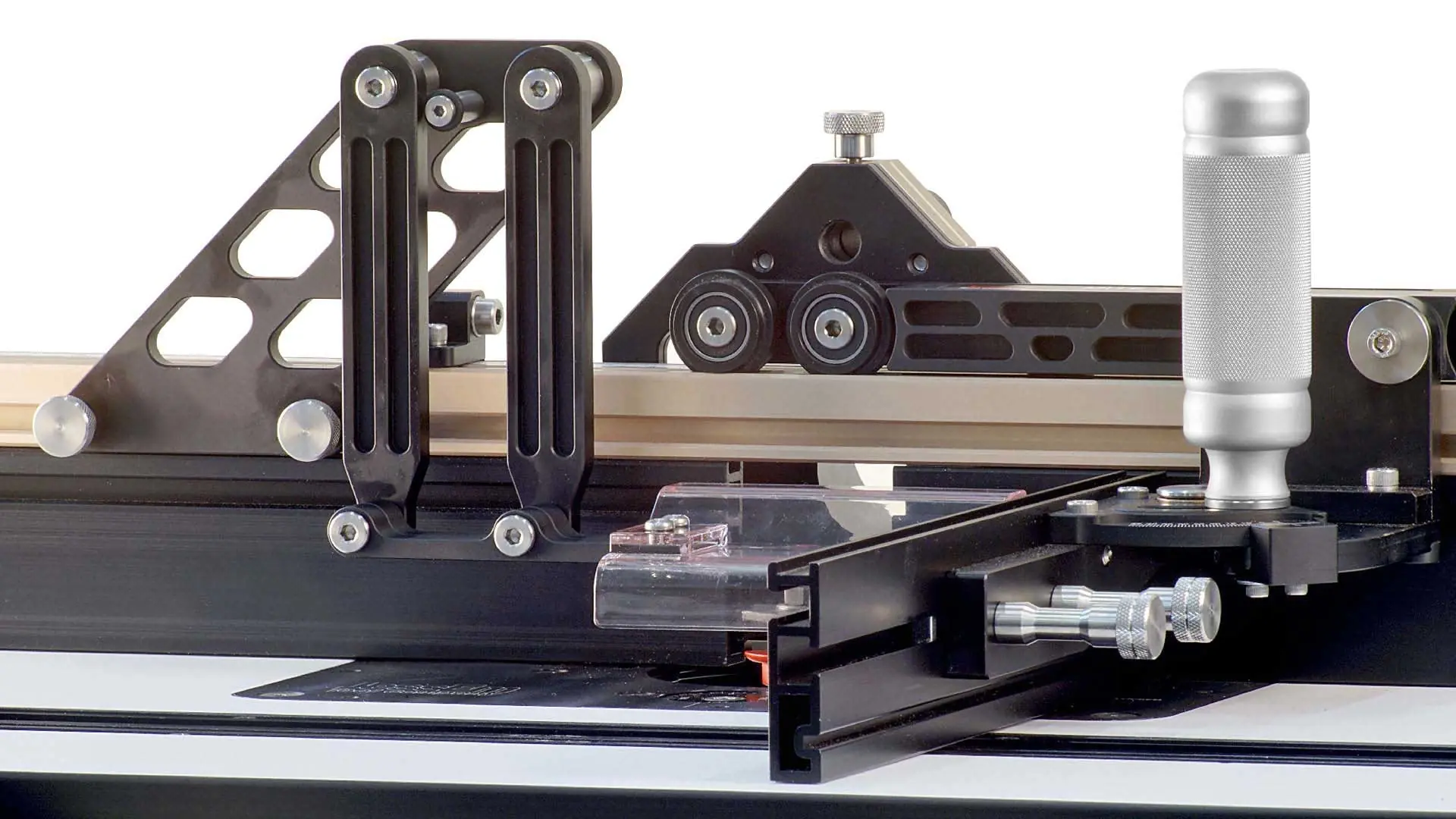

The Mite-R-Slide II is designed to perform any kind of end work on your workpieces, such as creating angled or right-angled tenons or other end grain operations, with precision. The fence can be tilted up to 45° to the left. Depending on the requirements of your project, simply turn the fence to the desired position and lock it in place by turning the solid handle. The angle scale of the Mite-R-Slide II is made of aluminum. The laser-engraved scale is particularly easy to read on the black anodized surface.

The combination of high-quality, stable angle adjustment and roller-guided sliding makes this sliding stop so special. Four acetal rollers run on their own bearings and are connected by specially manufactured stainless steel axles to the anodized aluminum guide. This allows the stop to glide smoothly back and forth, enabling you to perfectly work the ends of your workpieces.

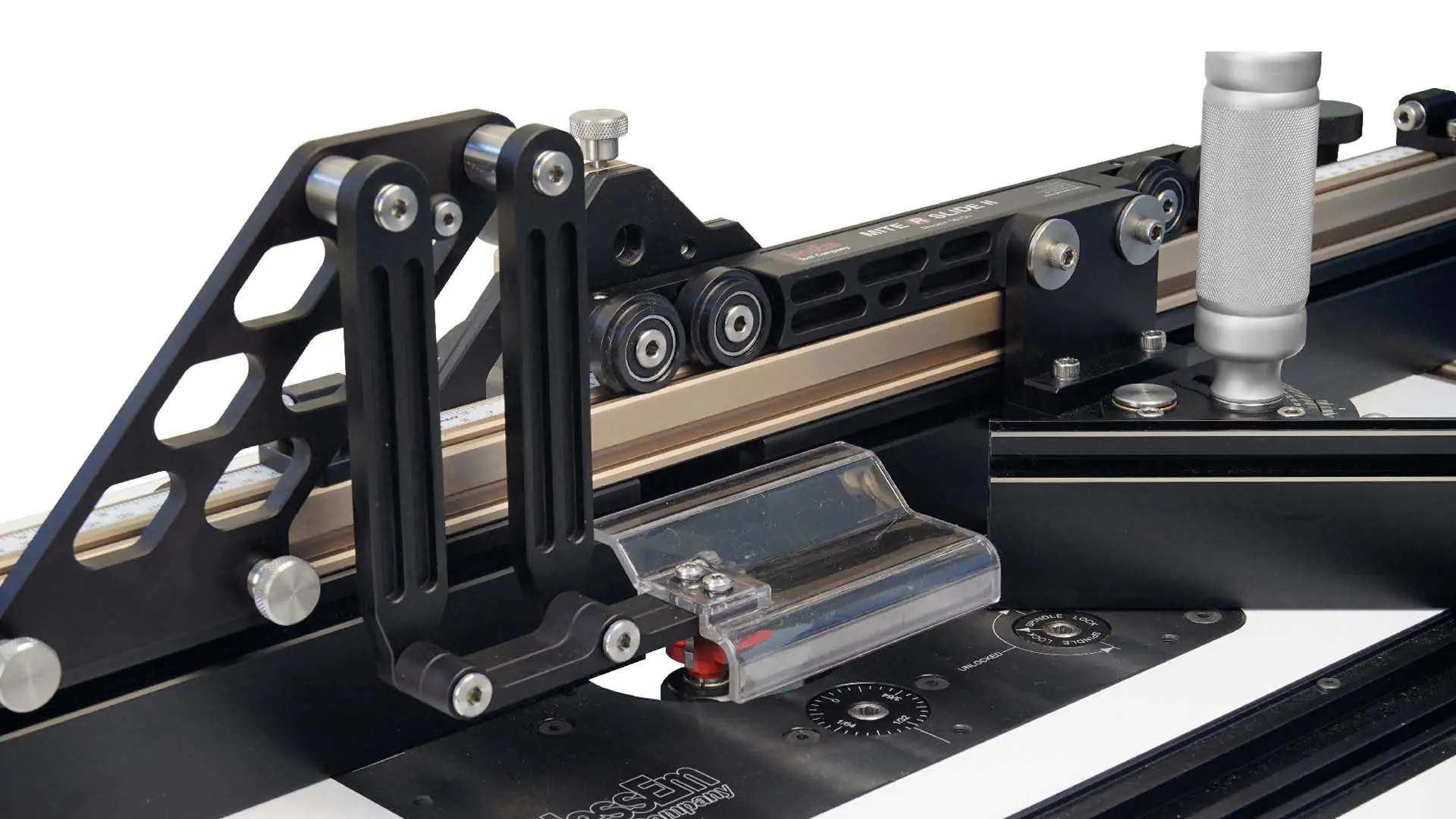

Additionally, the Mite-R-Slide II features a transparent cutter guard that is mounted on a parallelogram guide. This allows it to move with the slide when you push the workpiece over the router table. The guide for the cutter guard is made of aluminum for long-lasting durability and also anodized in black.

All screws of the Mite-R-Slide II are made of stainless steel. The adjustment screws for the stop and the screws for fastening the cutter guard are also made of this material.

The Mite-R-Slide II fits the following router fences from JessEm: Mast-R-Fence II (Model No. 04010), TA Fence (Model No. 04500).

Product Features:

• Cross stop for router tables

• The unique guide helps hold the workpiece while working on its end

• The stop can be adjusted from 45° to 90°

• Guided with roller bearings on the top of the longitudinal stop

• Includes a cutter guard to protect hands from the cutter

• For use with JessEm stops 04010, 04400, and 04500 (Order numbers: 332082, 332083, and 332087)

• Made from 6000 series aluminum

• Stable auxiliary stop made of extruded, anodized aluminum

• Solid handle, which also serves as a clamp for angle adjustment

• The stop can be swiveled up to 45° to the left

• The unique roller guide can be easily mounted on the JessEm stops 04010 and 04500

• Adjustment screws for the stop and cutter guard made of stainless steel

• Unique oscillating cutter guard

• Adjustable end stops can be mounted on the stop
