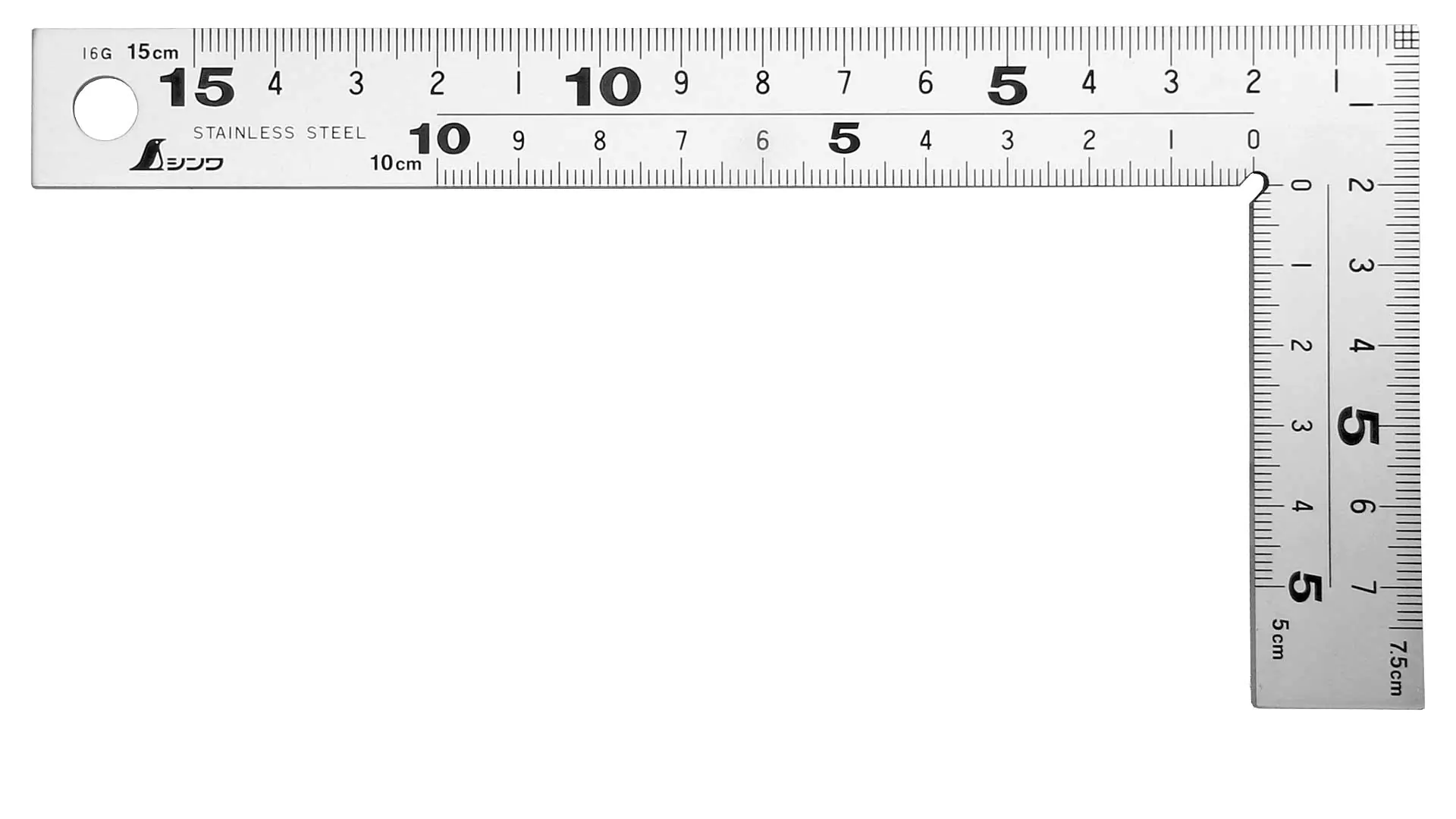

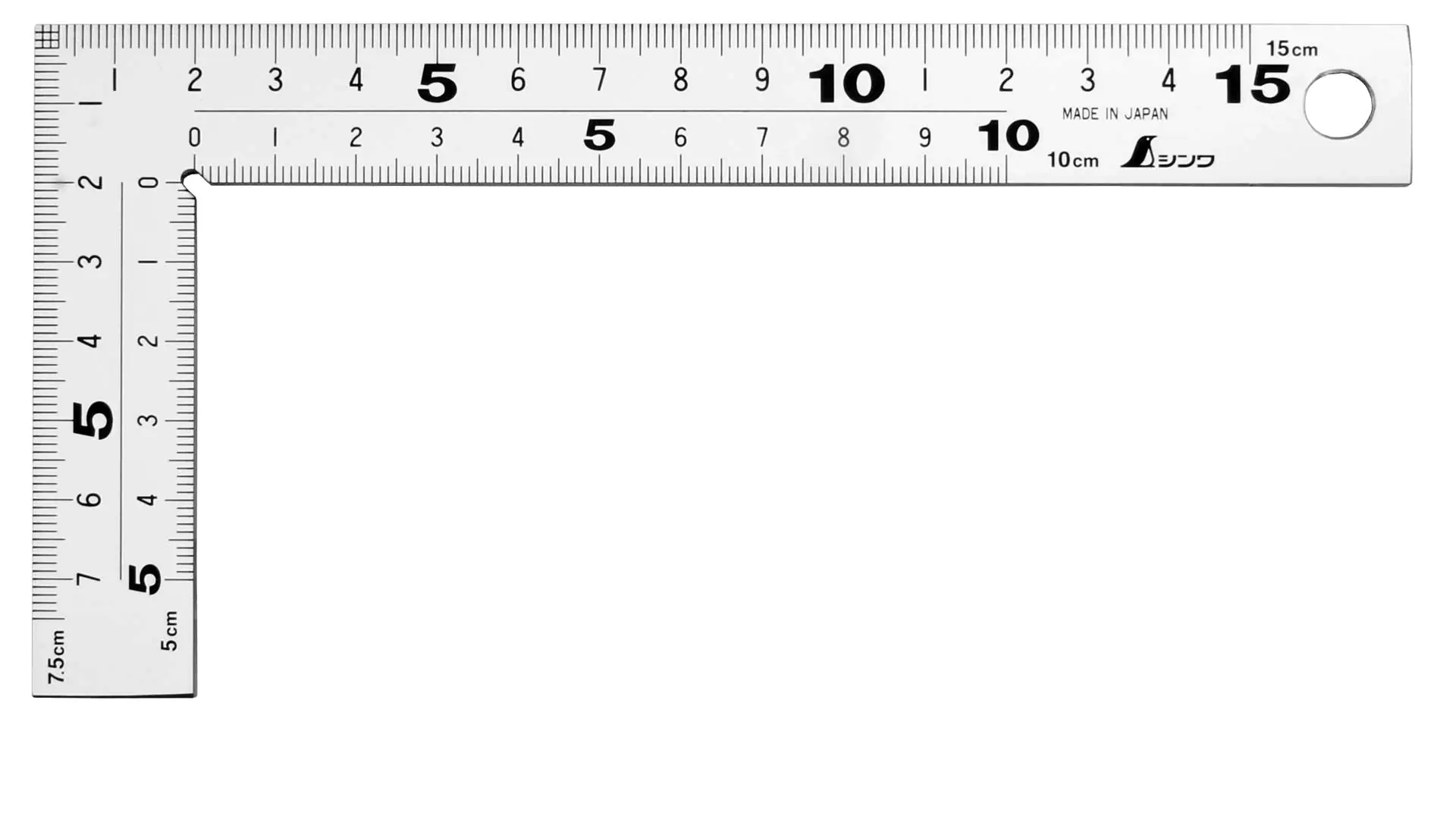

Japanese Mini Carpenter’s Square with
8 Scales rigid 15 cm SHINWA
10% Discount
10% Discount
10% Discount
€20.61*
€22.90*
You save €2.29!
Available, delivery time: 1-3 days
Product number: 311108
Product information
Measurement ranges: external up to 15 cm, internal up to 7.5 cm
Made from stainless steel, rustproof. The graduation is deeply etched and easy to read.
Satin chrome finish.
Squareness: less than 0.1 mm deviation per 100 mm length
- Material cross-section 20 × 2 mm
- External scale long arm 150 mm
- Internal scale long arm 100 mm
- External scale short arm 75 mm
- Internal scale short arm 50 mm
- Total length long arm 170 mm
- Total length short arm 85 mm
- With hole Ø 8 mm for hanging
| Features | |
|---|---|
| Outer scale short leg | 75 mm |
| Outer scale long leg | 150 mm |
| Total length short leg | 85 mm |
| Total length long leg | 170 mm |
| Inner scale short leg | 50 mm |
| Inner scale long leg | 100 mm |
| Material cross-section | 20 × 2 mm |
| Scale short leg | 75 mm |
| Scale long leg | 150 mm |
